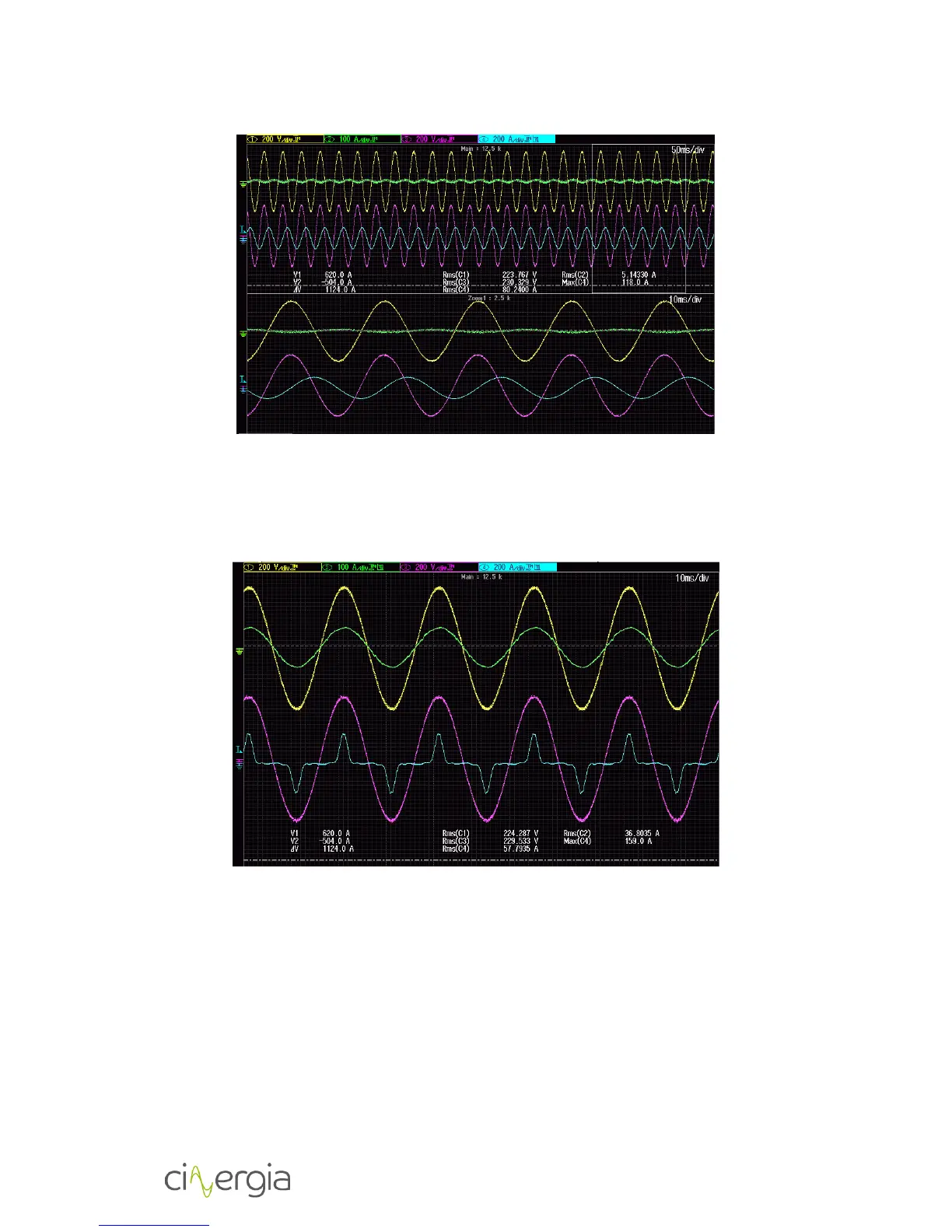

In this case, there is reactive power consumption from the EUT (PF = 0) and no power is injected
into the grid.
In this second picture, the EL is behaving like a single-phase rectifier.
