3.5.2.- 3 voltages + neutral and 3 currents, Computer SMART III 12 model

Connection type: 3U.3C

VLN

IL2

VL1 VL2 VL3

S1 S2

S1 S1S2 S2 S2

IL3

IL1

A1 A2

Power Supply

COM 1 2 3 4 5 6 7 8 9 10 11 12

Relay

For Computer SMART III 12

Power Supply

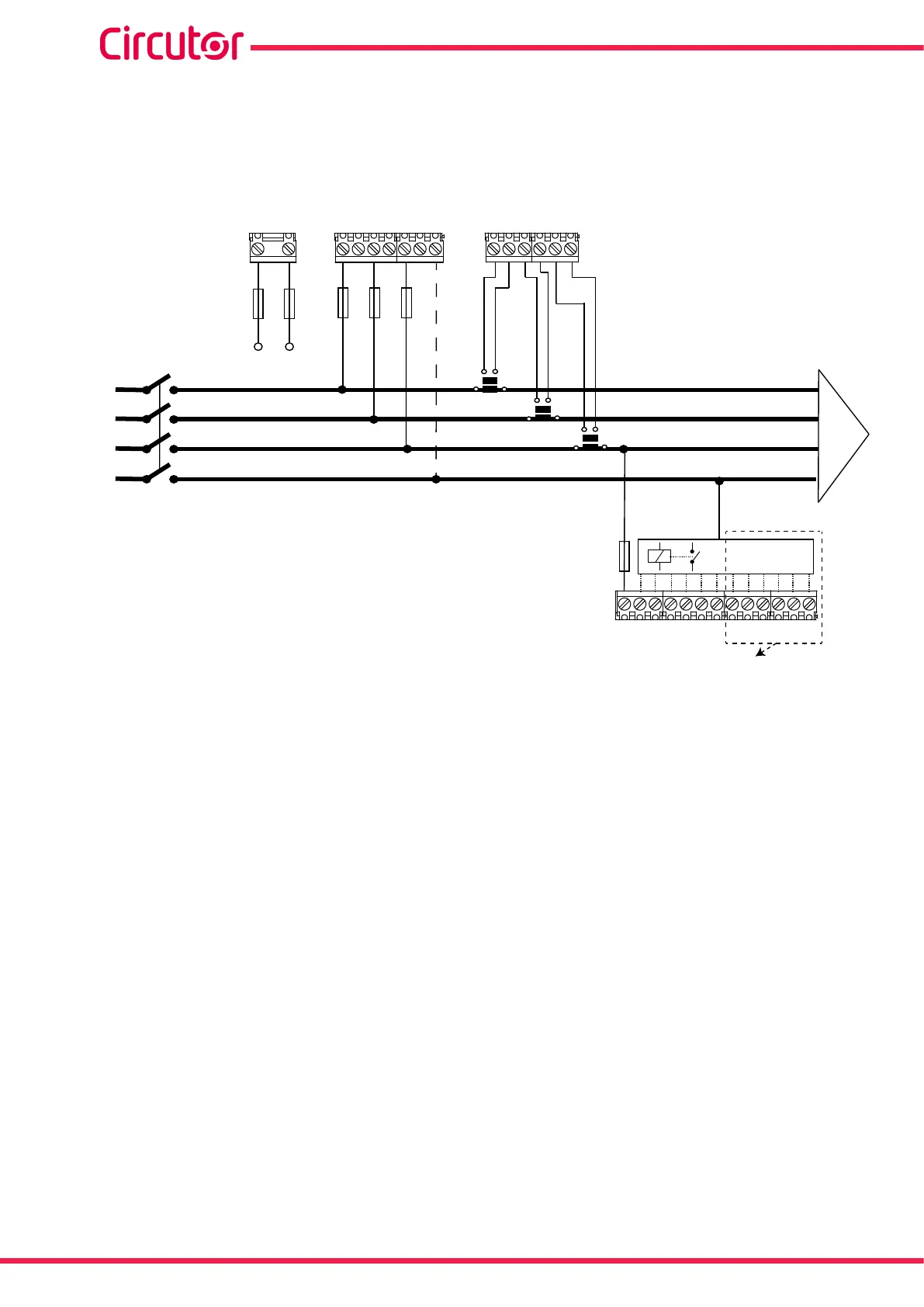

Figure 4: 3 voltages + neutral and 3 currents, Computer SMART III 12 model.

Note: If the connection layout mentioned above is not respected, the phase must be adjusted, follow-

ing the procedure described in section “5.6.- PHASE CONNECTION”

Note: In this type of connection, the connection from Neutral to V

is not mandatory.
