3.5.3.- 3 voltages + neutral and 3 currents, Computer SMART III 14 model
Connection type 3U.3C
VLN
IL2
S1
L1
L2
L3
N
VL1 VL2 VL3
S1 S2
P1
P2
S1 S2
P1
P2
S1 S2
P1
P2
S1 S1S2 S2 S2
IL3
IL1
A1 A2
Power
Supply
Power
supply
COM 1 2 3 4 5 6 7 8 9 10 11 12
Relay
13 14 COM

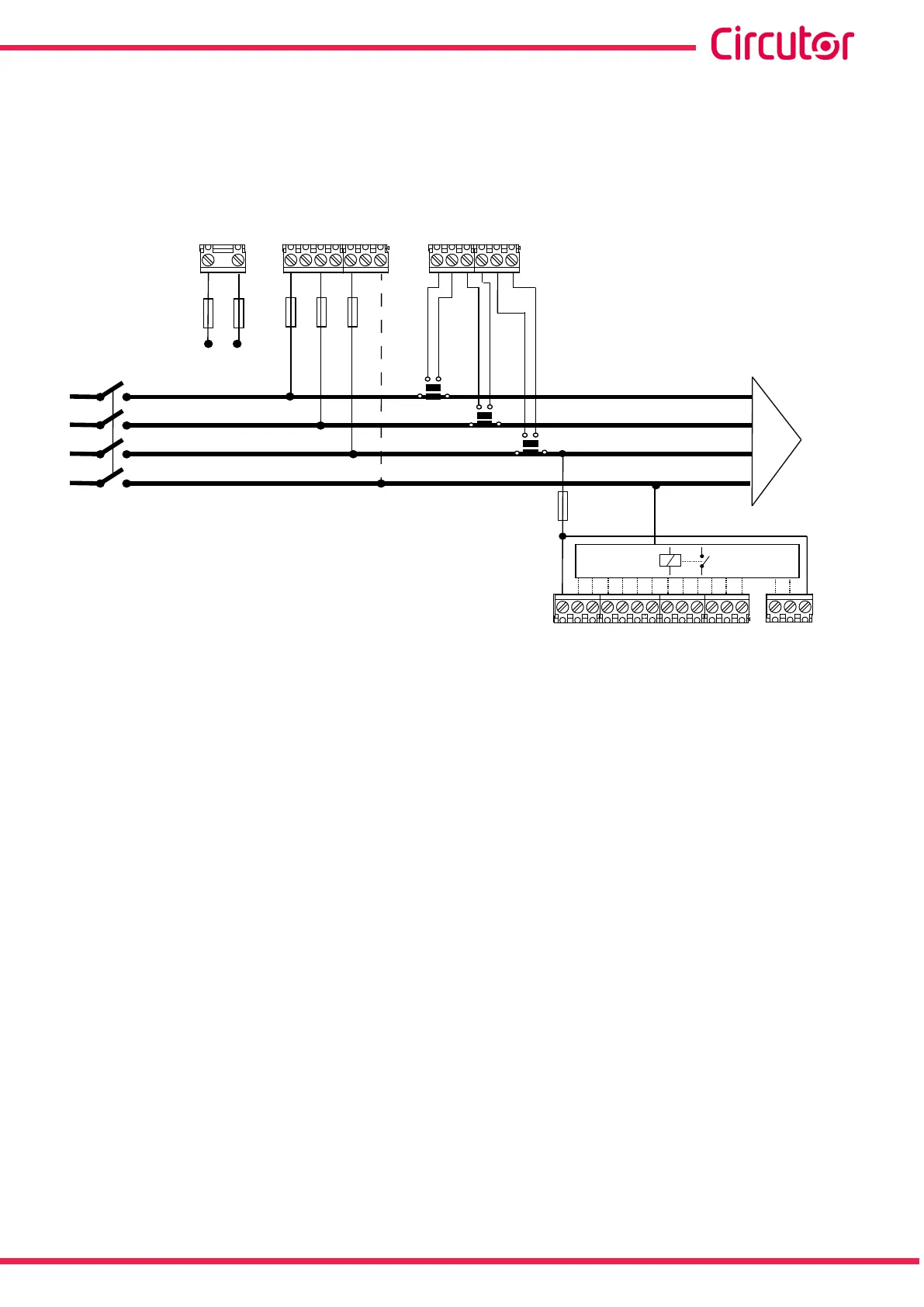

Figure 5: 3 voltages + neutral and 3 currents, Computer SMART III 14 model.
Note: If the connection layout mentioned above is not respected, the phase must be adjusted, following
the procedure described in section “5.6.- PHASE CONNECTION”
Note: In this type of connection, the connection from Neutral to V
LN
is not mandatory.
