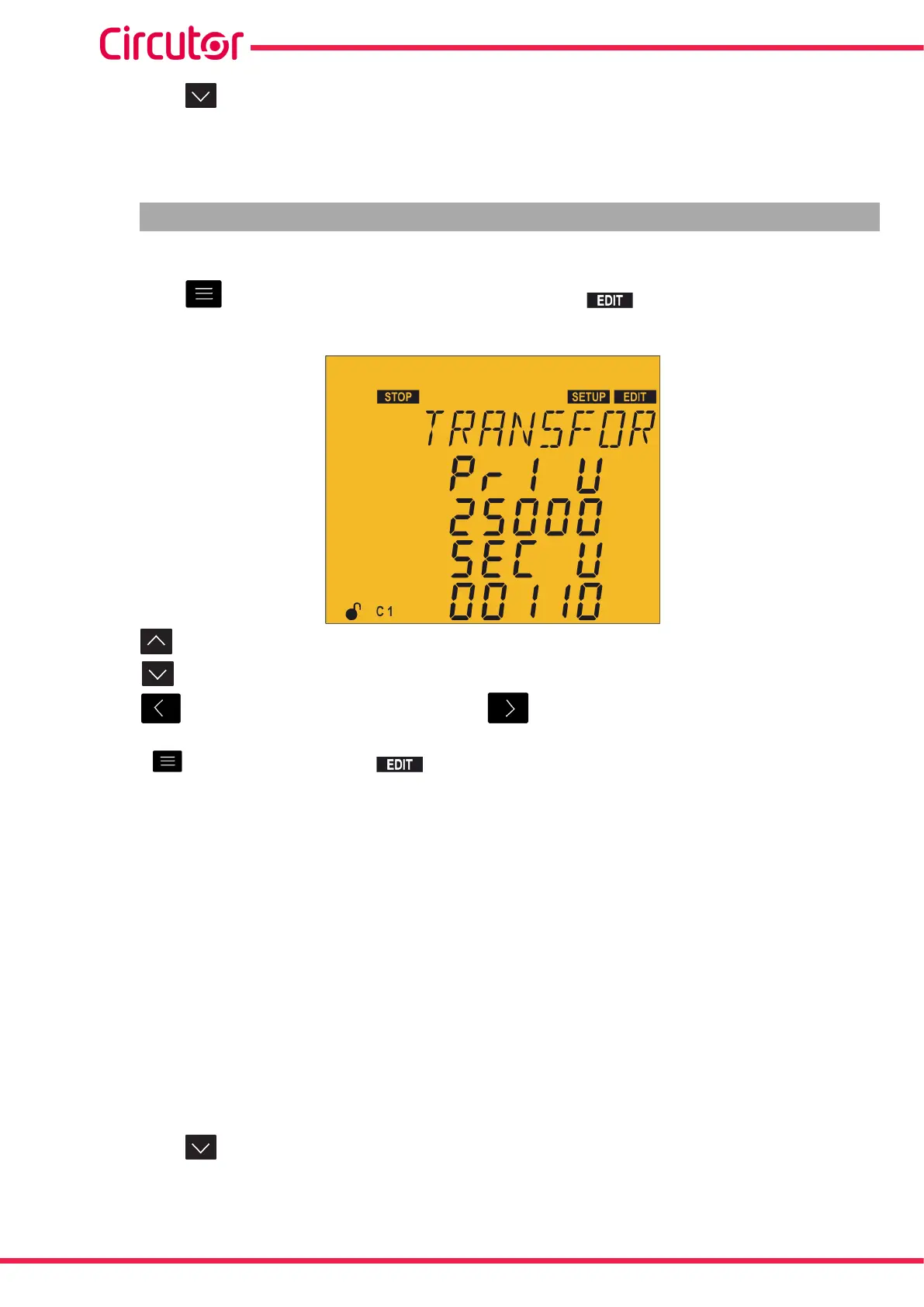

5.12.- VOLTAGE TRANSFORMATION RATIO
In this point the primary and secondary value of the voltage transformer can be configured.
Press the key to enter edit mode. It is identified by the symbol and the flashing of the
digits to be modified.
The key increases the digit value.
The key reduces the digit value.
The key skips to the previous digit and the key skips to the next digit.
Press to validate the data; the symbol disappears from the display.
Voltage primary:
Maximum value: 99999.
Minimum value: 1.
Voltage secondary:
Maximum value: 99999.
Minimum value: 1.
Maximum possible voltage ratio: 1000.
Note: The voltage ratio is the ratio between the voltage primary and secondary.
Maximum value of the current ratio x the voltage ratio: 200000.
If the value entered is lower than the minimum value or higher than the maximum value, the backlight
of the display flashes and the value entered is replaced with the minimum or maximum value, or with
the last value validated.
Press the key to access the next programming step.
If no keys are pressed for 5 minutes, the device switches to the simulation screen, “5.30.- SIMULATION
SCREEN”.
