4.4.3. ANALOGUE BAR

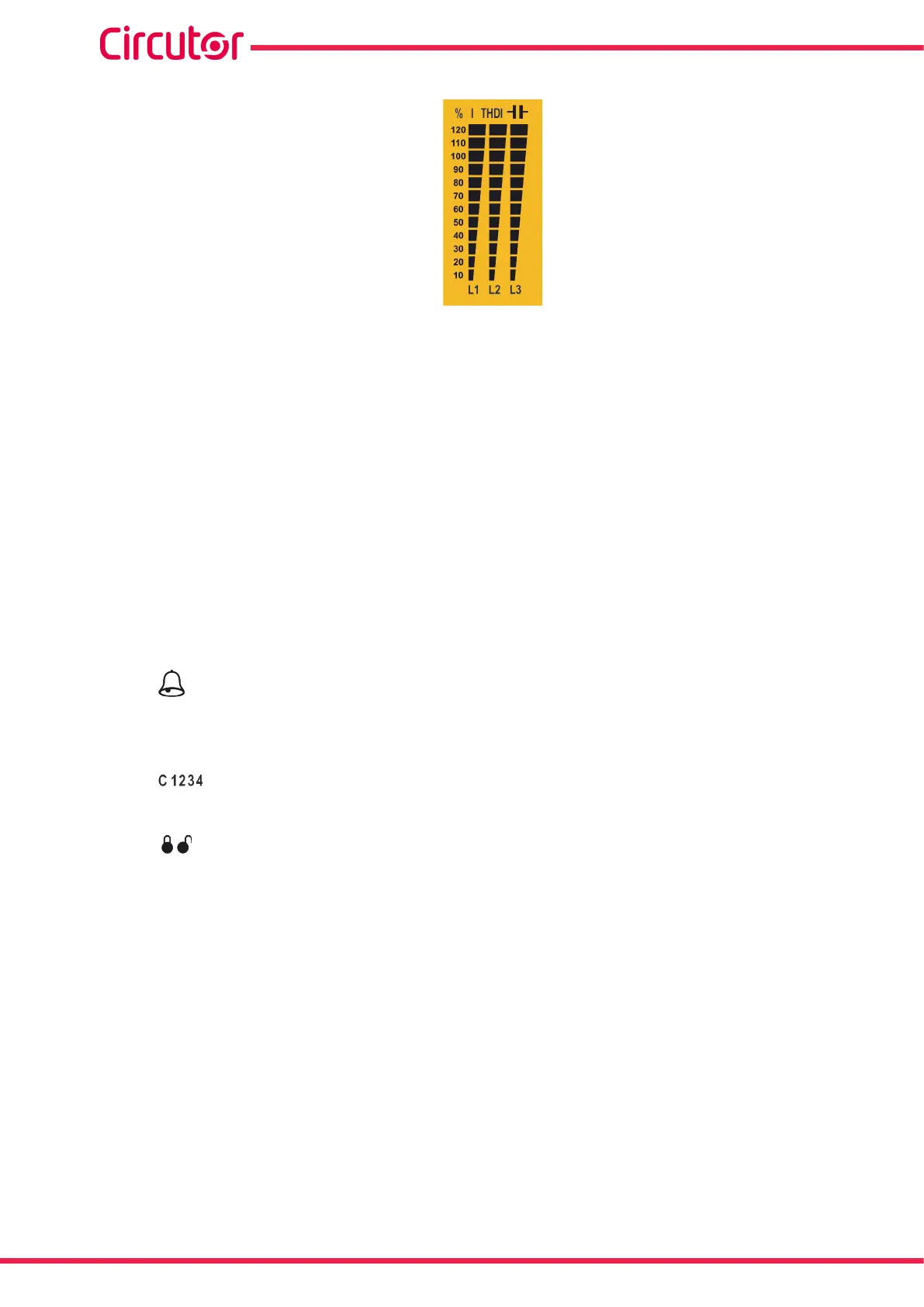

Figure 17: Analogue Bar
This bar is displayed on the measurement screens, and can show:
 the current of each phase as a %.
 the current THD of each phase.
 the power connected to the capacitor bank.
The parameter to be displayed is selected in the setup menu. (“5.16.- ANALOGUE BAR”)
The display screen also shows the results of the TEST and the load % of the capacitors.
4.4.4. OTHER SYMBOLS OF THE DISPLAY
The display also shows the following:
Alarm: When the device detects an alarm, the backlight of the screen flashes and the alarm
icon lights up. The cause of the alarm can be seen on the active alarms screen. (“4.6.- OPERATING
STATES”)
Target cosine: The icons indicate which one of the four possible target cosines have been
selected. (“5.3.- TARGET COS φ”)
Editing locked / unlocked: The editing of the programming parameters is password protect-
ed. These icons indicate whether or not this option is locked.
