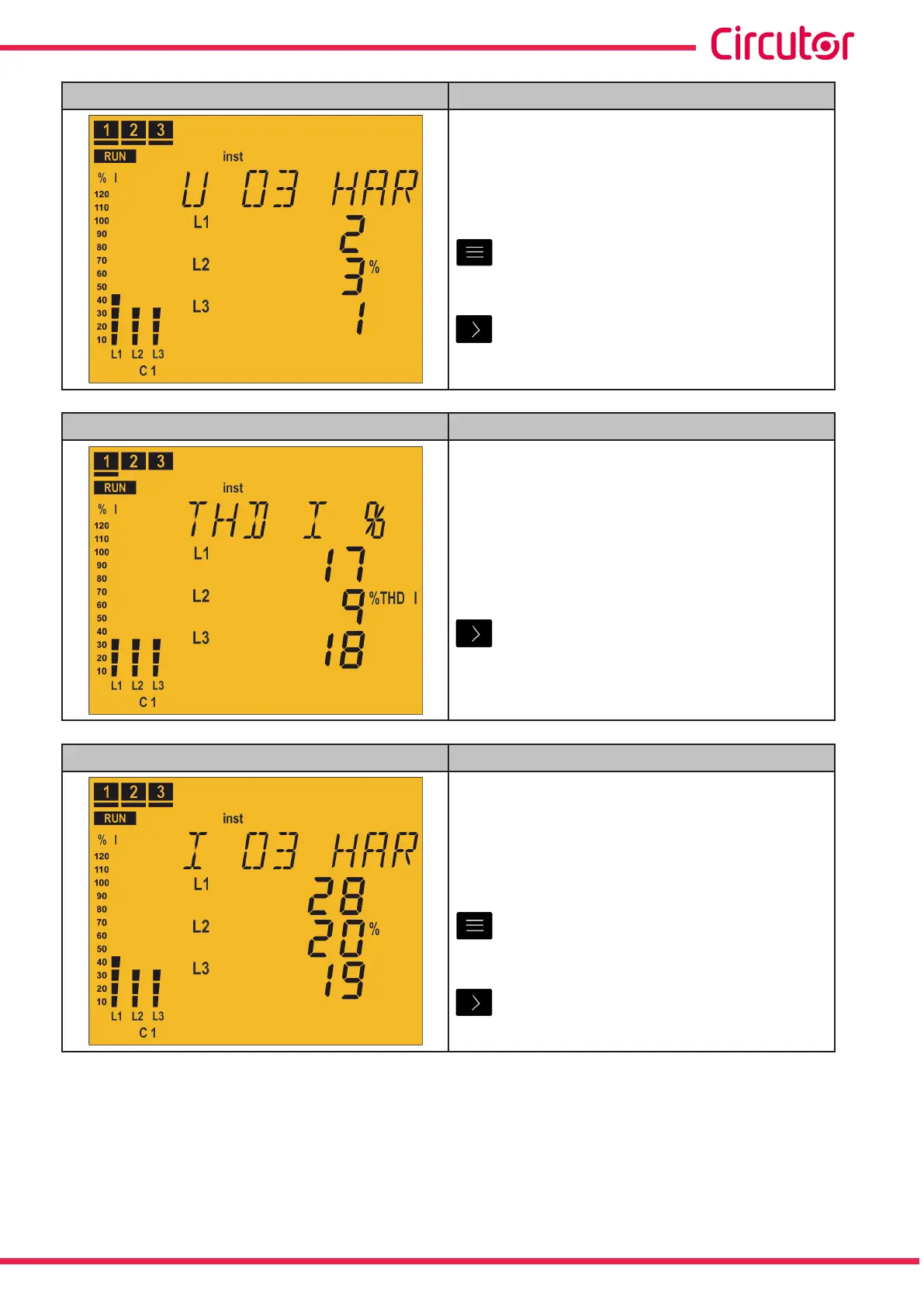

Voltage harmonics Parameters
L1 Voltage harmonic
L2 Voltage harmonic
L3 Voltage harmonic
(%)
Change the harmonic no.:
3, 5, 7, 9, 11, 13, 15, 17.
Display the maximum values.
Current THD Parameters
L1 Current THD
L2 Current THD
L3 Current THD
(%)
Display the maximum values.
Current harmonics Parameters
L1 Current harmonic
L2 Current harmonic
L3 Current harmonic
(%)
Change the harmonic no.:
3, 5, 7, 9, 11, 13, 15, 17.
Display the maximum values.
