Connection diagrams

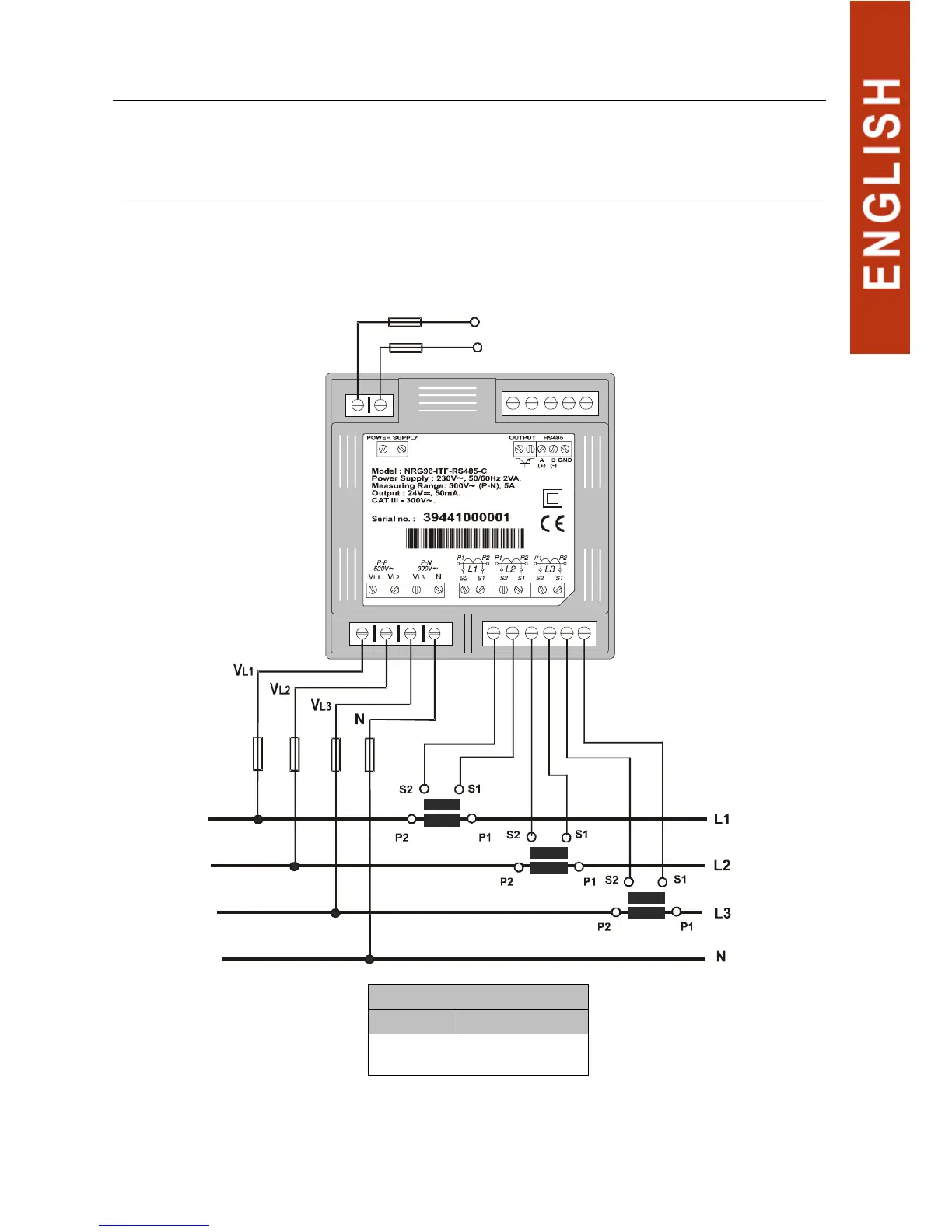

A. Three phase system measurement with 4 wire connection (Low Voltage) and
three external current transformers.
Power supply AC. // Version Plus DC.
Power supply “Plus”
Terminal Description
1
2
+ V DC.
- V DC.
