Cisco 6901 Administration Guide

F-6
Cisco Unified IP Phone 6901 and 6911 Administration Guide for Cisco Unified Communications Manager 8.6 (SCCP and SIP)
OL-24582-01
Appendix F Cisco Unified IP Phone Non-Lockable Wall Mount
ADA Non-Lockable Wall Mount Kit for 6900 Series

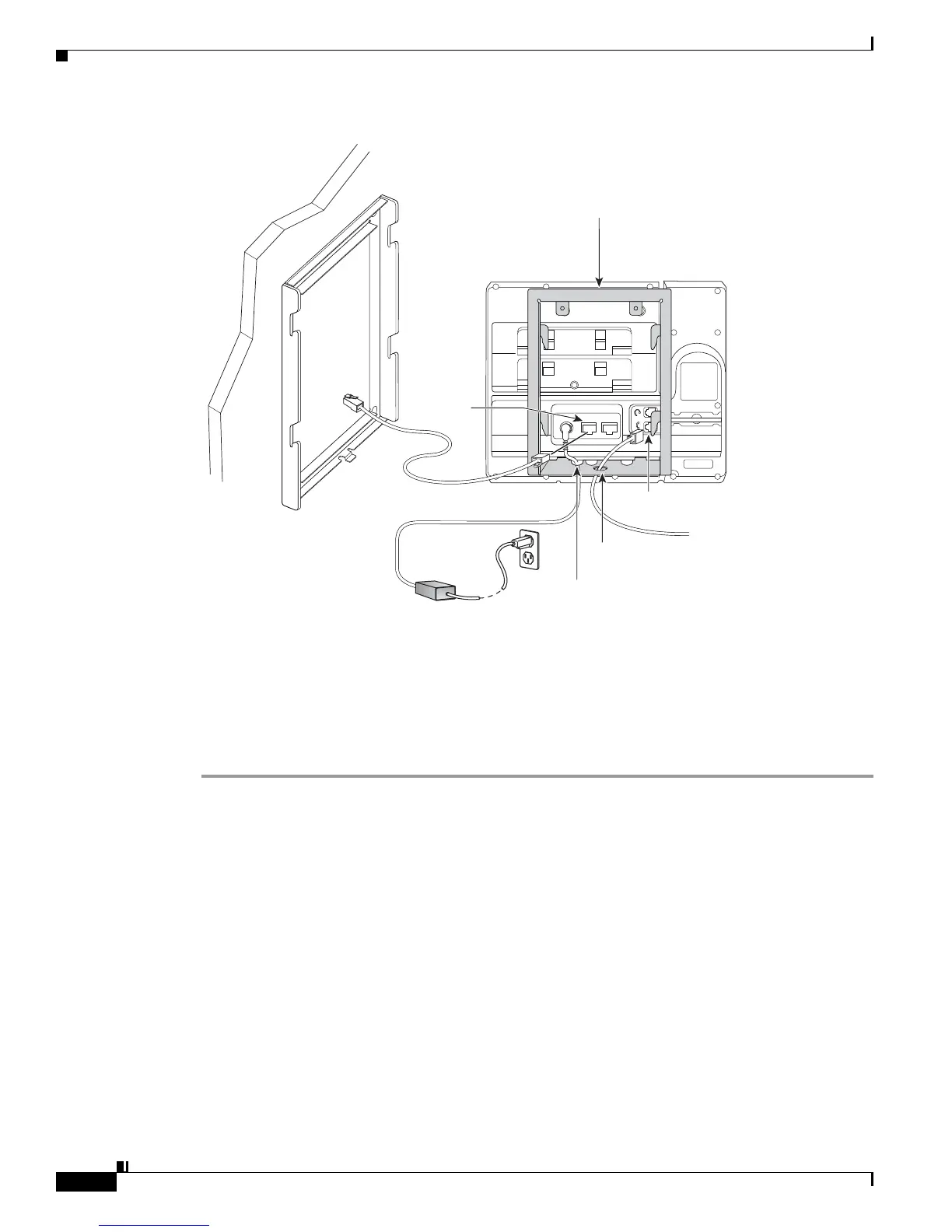

Figure F-6 Attach Cables
Step 4 Attach the phone to the wall bracket by inserting the tabs on the top of the phone bracket into the slots
on the wall bracket.
Use the cable-access openings in the bottom of the bracket to position the power cord and any other cable
that does not terminate in the wall behind the bracket. The phone and wall bracket openings together
form circular openings with room for one cable per opening.
Step 5 Proceed to Step 3 of Installing a Wall Mount for the Cisco Unified IP Phone 6911, page E-7.
Remove Phone from Non-Lockable Wall Mount
The phone mounting plate contains two tabs to lock the plate into the wall bracket. The following figure
shows the location and shape of the tabs.
The following figure shows the tab location.
274939
(optional power
cable)
AC adapter
port
Handset port
Network
port
Phone bracket
Wall bracket
Phone bracket
cable access hole
U-shaped holes
for cables

Cisco 6901 Specifications

General

Model	6901
Type	IP Phone
Power over Ethernet (PoE)	Yes
Protocols	SCCP
Codecs	G.711, G.729
