Cisco Unified IP Phone 6901 and 6911 Administration Guide for Cisco Unified Communications Manager 8.6 (SCCP and SIP)
OL-24582-01
Chapter 3 Setting Up the Cisco Unified IP Phone
Footstand
Footstand
The Cisco Unified IP Phone 6901 has a foldable footstand. When the footstand is unfolded, it gives the
phone an elevated viewing angle.

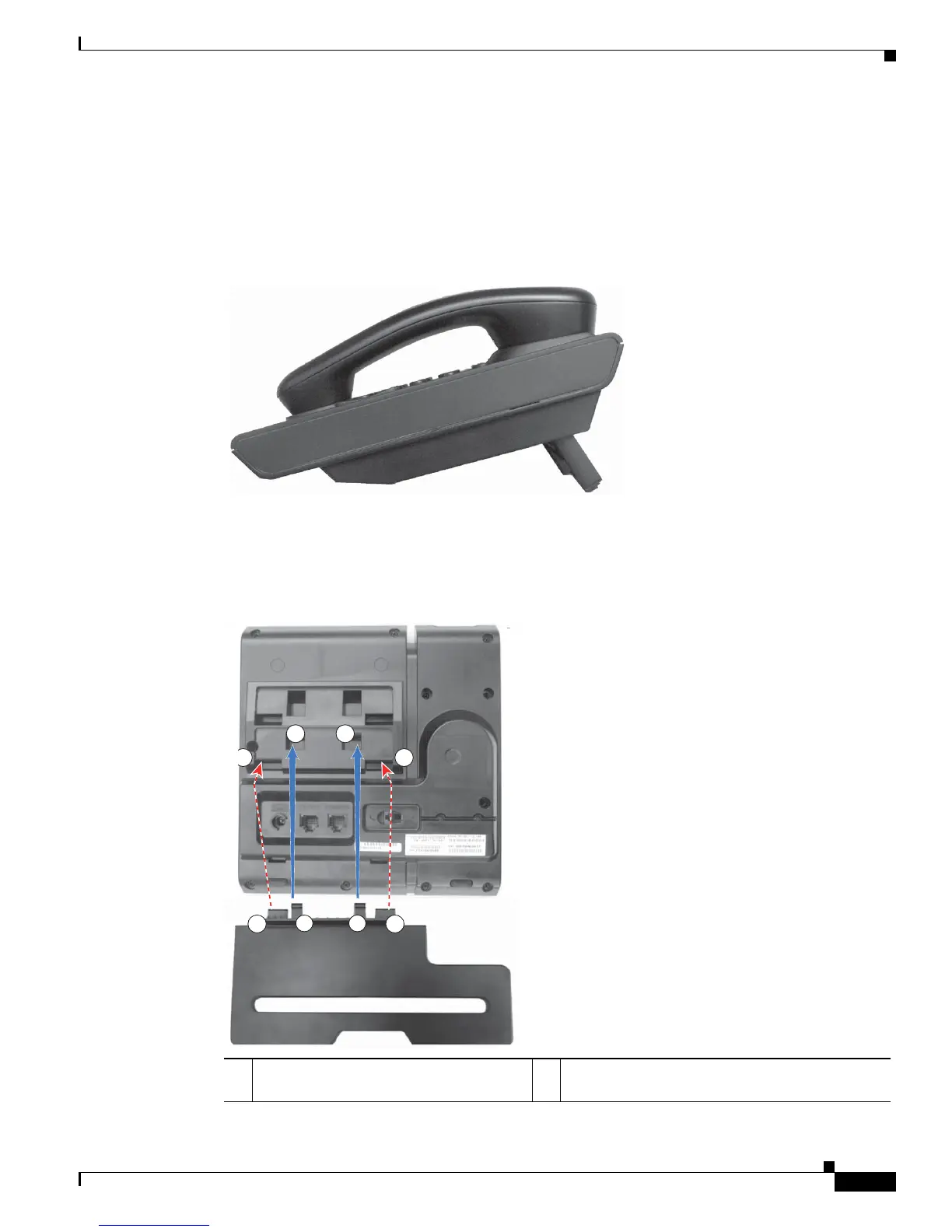

Figure 3-3 illustrates the footstand on the Cisco Unified IP Phone 6901.
Figure 3-3 Cisco Unified IP Phone 6901
Figure 3-4 illustrates attaching the footstand on the Cisco Unified IP Phone 6911.
Figure 3-4 Cisco Unified IP Phone 6911
277349
1
Insert the connectors into the lower slots
2
Lift the footstand until the connectors snap into
the upper slots
1 1
1 1
2 2
2 2
277348
