Chapter 3 Setting Up the Cisco Unified IP Phone
Installing the Cisco Unified IP Phone

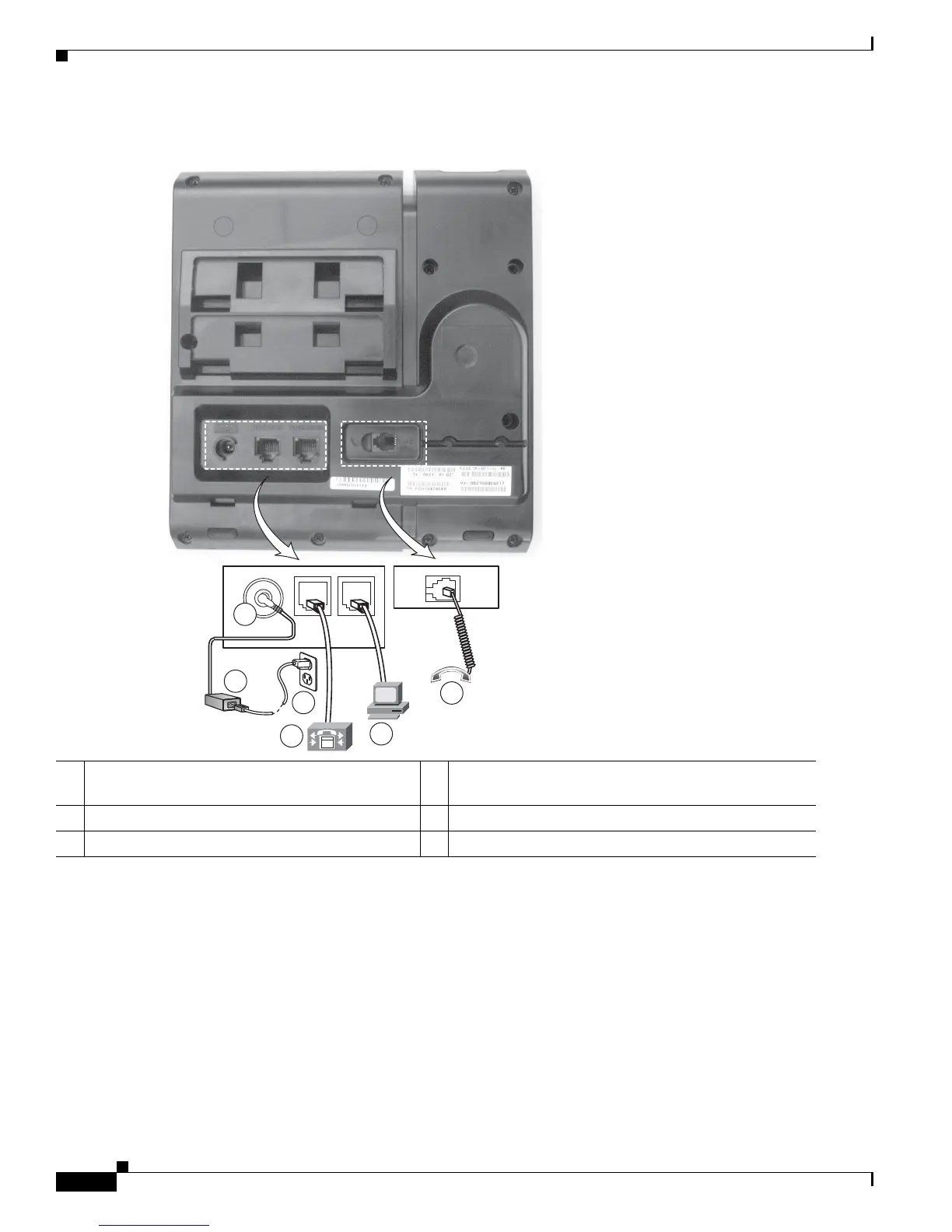

Figure 3-2 Cisco Unified IP Phone 6911 Cable Connections
Related Topics
• Footstand, page 3-7
• Verifying the Phone Startup Process, page 3-9
• Configuring Startup Network Settings, page 3-9
1
DC adaptor port (DC48V)
4
Network port (10/100 SW) connection
IEEE 802.3af power enabled
2
AC-to-DC power supply (optional)
5
Access port (10/100 PC) connection
3
AC power wall plug (optional)
6
Handset connection
195780
2
3
4
5
6
1
