Cisco 7960 User Manual

Configuring Windows for TAPI
156 Set Up Outlook for TAPI Cisco 7960/7940 Telephone User Guide
620-05600070B
9. When you are finished entering information in the New Location or Edit
Location
dialog box, click OK to accept the dialing properties, and close the
dialog box and return to the
Phone and Modem Options dialog box.

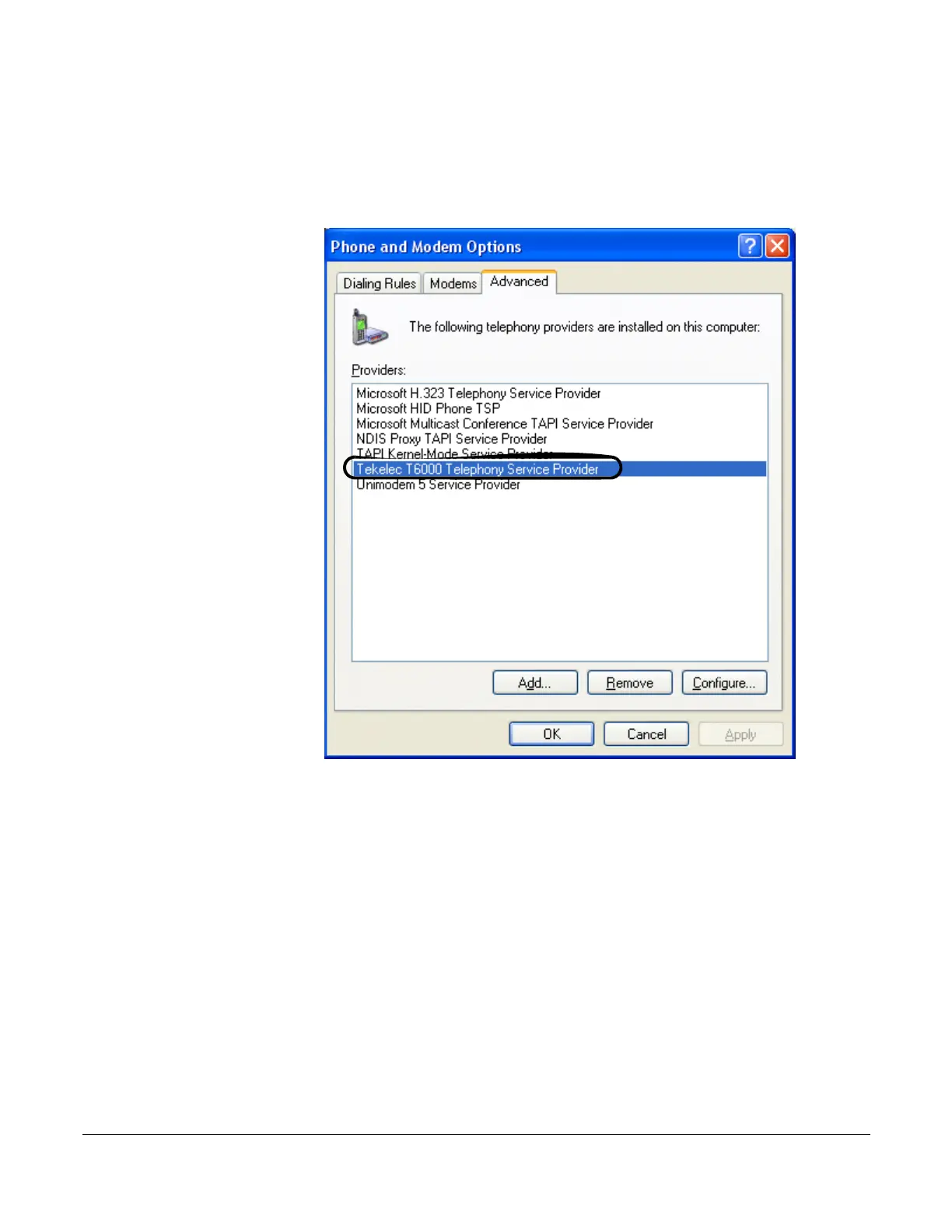

10. Click the Advanced tab to see the list of available telephone providers.
11. If you completed the T6000 setup as part of the TAPI install from Web Portal
you should see the Tekelec T6000 Telephony Service Provider (circled) and
can skip to “Configuring Outlook to Use TAPI”.
12. If you did not complete the T6000 setup as part of the TAPI install from Web
Portal, click Add to open the
Add Provider dialog box.

Cisco 7960 Specifications

General

Codecs	G.711, G.729a
Protocol Support	SCCP, SIP
Ethernet Ports	2 x 10/100 Ethernet ports
Power Options	Power over Ethernet (PoE), AC adapter
Audio	Full-duplex speakerphone
Buttons	6 line buttons
Weight	3.5 pounds
