Cisco 7962G User Manual

An Overview of Your Phone
Cisco Unified IP Phone 7962G and 7942G for Cisco Unified Communications Manager 6.0 (SCCP and SIP) 11

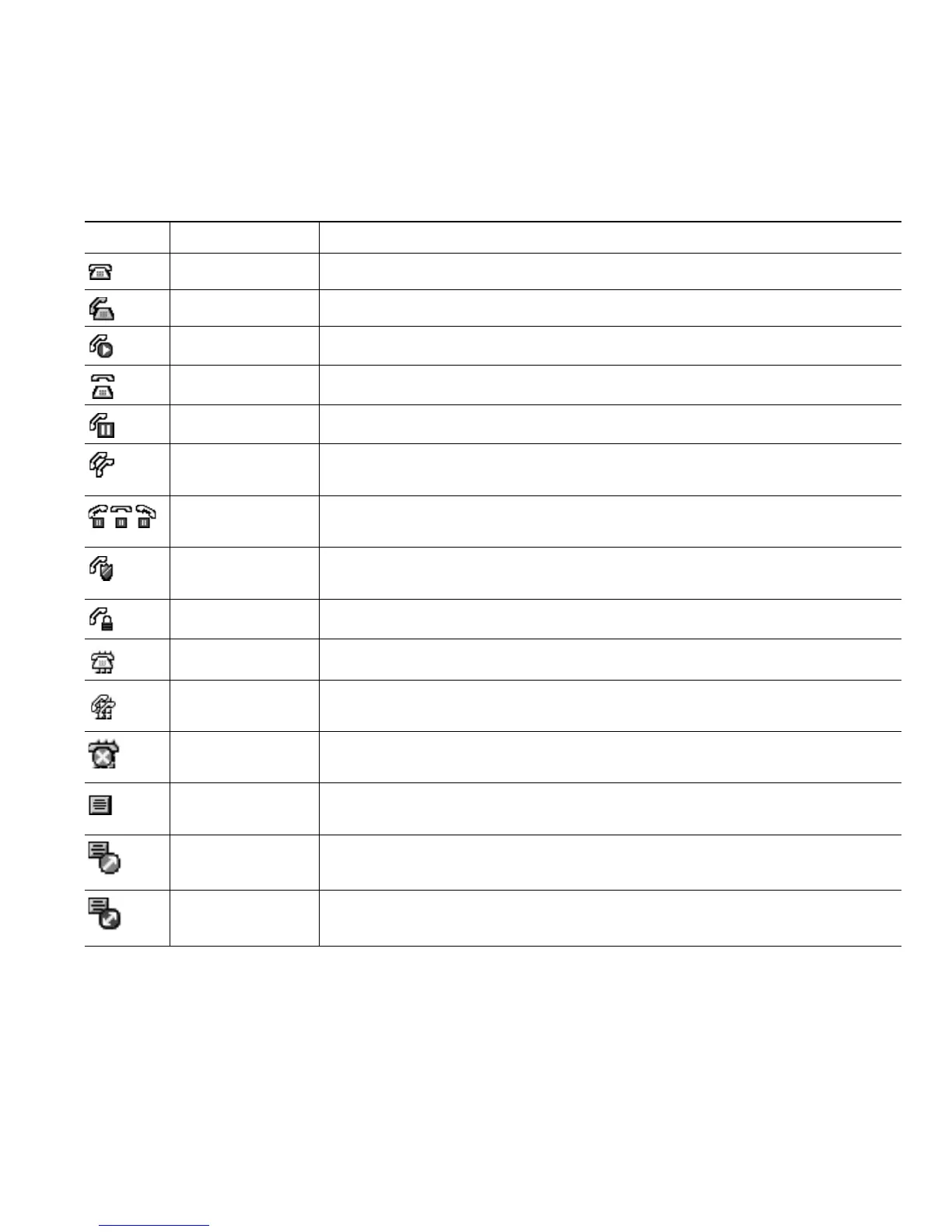

Understanding Line and Call Icons
Your phone displays icons to help you determine the call and line state.
Icon Line or Call State Description
On-hook line No call activity on this line.
Off-hook line You are dialing a number or an outgoing call is ringing.
Connected call You are currently connected to the other party.
Ringing call An incoming call is ringing on one of your lines.
Call on hold You have put the call on hold. See Using Hold and Resume, page 20.
Remote-in-use Another phone that shares your line has a connected call. See Using a
Shared Line, page 35, for details.
Reverting call A holding call is reverting to your phone. See Using Hold and Resume,
page 20.
Authenticated
call
See Making and Receiving Secure Calls, page 38.
Encrypted call See Making and Receiving Secure Calls, page 38.
Idle line (BLF) See Using BLF to Determine a Line State, page 38.
Busy line (BLF) See Using BLF to Determine a Line State, page 38.
Line in Do Not
Disturb (BLF)
See Using BLF to Determine a Line State, page 38.
Idle Intercom
line
The intercom line is not in use. See Placing or Receiving Intercom Calls,
page 29.
One-way
intercom call
The intercom line is sending or receiving one-way audio. See Placing or
Receiving Intercom Calls, page 29.
Two-way
intercom call
The recipient pressed the intercom line to activate two-way audio with
the caller. See
Placing or Receiving Intercom Calls, page 29.
Understanding Phone Screen Features
This is what your main phone screen might look like with active calls and several feature menus open:

Cisco 7962G Specifications

General

Mounting	Desk/Wall
Handset type	Wired handset
Product type	IP Phone
Case material	ABS
Product color	Black, Grey
Wall mountable	Yes
Bluetooth	No
Security algorithms	128-bit AES, 802.1x RADIUS
Networking standards	IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3af
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Ethernet LAN (RJ-45) ports	2
Voice codecs	G.711, G.711a, G.722, G.729A, G.729ab, iLBC
Volume control	Digital
Display diagonal	5 \
Display resolution	320 x 222 pixels
Display number of colors	Monochrome
Caller ID	-
Lines quantity	- lines
Phonebook capacity	- entries
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 95 %
Number of handles included	1 pc(s)

Weight and Dimensions

Depth	203.2 mm
Width	266.7 mm
Height	152.4 mm
Weight	1600 g
