Understanding Lines and Calls
To avoid confusion about lines and calls, refer to these descriptions:
Lines—Each line corresponds to a directory number or intercom number that others can use to call
you. The Cisco
Unified IP Phone 7962G supports one to six lines and the Cisco Unified IP Phone
7942G supports one to two lines, depending on configuration. To see how many lines you have, look
at the right side of your phone screen. You have as many lines as you have directory numbers and
phone line icons:
.
Calls—Each line can support multiple calls. By default, your phone supports four connected calls per
line, but your system administrator can adjust this number according to your needs. Only one call can
be active at any time; other calls are automatically placed on hold.

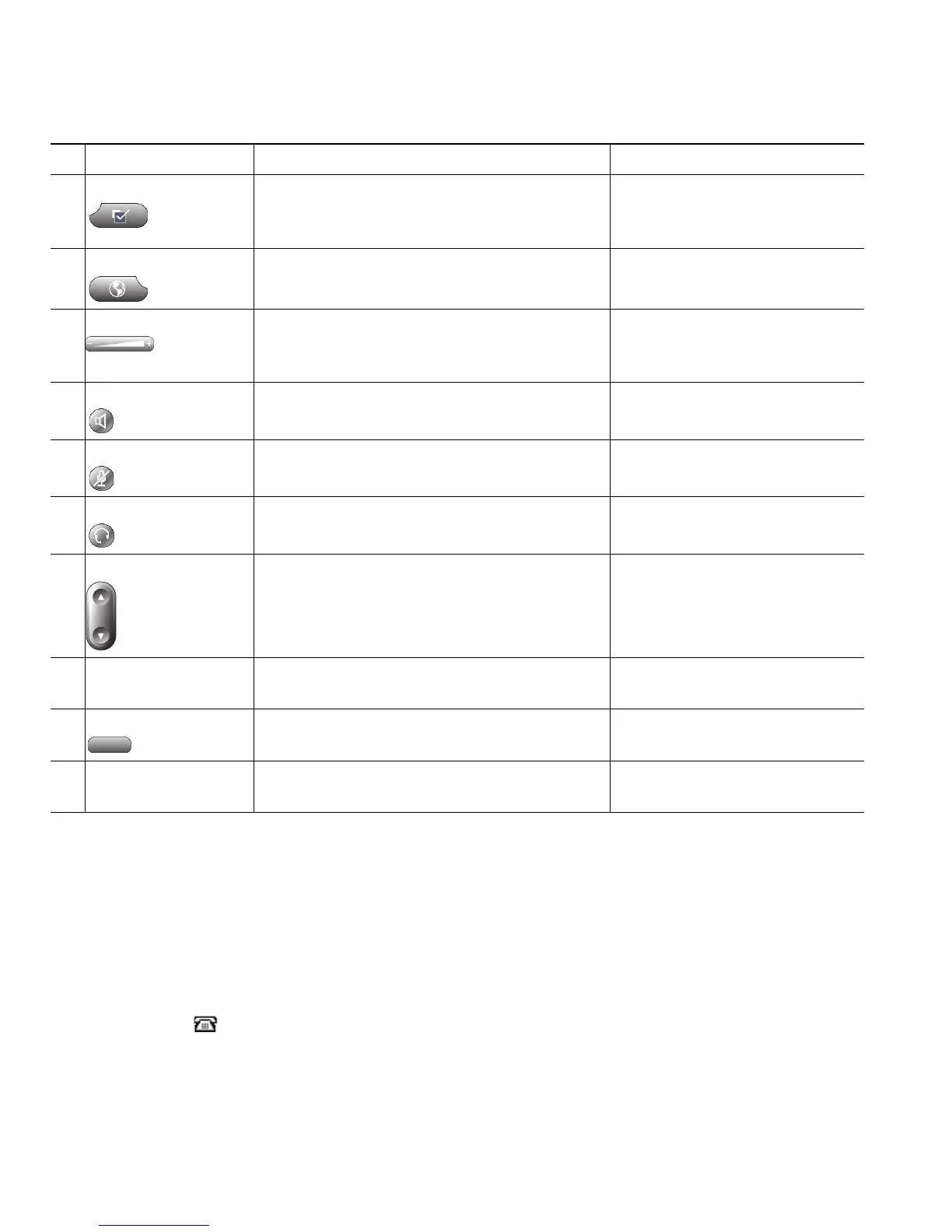

7
Settings button Opens/closes the Settings menu. Use it to
control phone screen contrast and ring
sounds.
Changing Phone Settings,
page 46
8
Services button Opens/closes the Services menu. Using the User Options Web
Pages, page 55
9
Volume button Controls the handset, headset, and
speakerphone volume (off-hook) and the
ringer volume (on-hook).
Using a Handset, Headset,
and Speakerphone, page 44
10
Speaker button Toggles the speakerphone on or off. When
the speakerphone is on, the button is lit.
Using a Handset, Headset,
and Speakerphone, page 44
11
Mute button Toggles the microphone on or off. When
the microphone is muted, the button is lit.
Using Mute, page 21
12
Headset button Toggles the headset on or off. When the
headset is on, the button is lit.
Using a Handset, Headset,
and Speakerphone, page 44
13
Navigation button Allows you to scroll through menus and
highlight items. When the phone is
on-hook, displays phone numbers from
your Placed Calls log.
Using Call Logs, page 48
14
Keypad Allows you to dial phone numbers, enter
letters, and choose menu items.
Basic Call Handling, page 16
15
Softkey buttons Each activates a softkey option (displayed
on your phone screen).
Understanding Phone Screen
Features, page 11
16
Handset light strip Indicates an incoming call or new voice
message.
Accessing Voice Messages,
page 54
Item Description For more information, see...

Cisco 7962G Specifications

General

Mounting	Desk/Wall
Handset type	Wired handset
Product type	IP Phone
Case material	ABS
Product color	Black, Grey
Wall mountable	Yes
Bluetooth	No
Security algorithms	128-bit AES, 802.1x RADIUS
Networking standards	IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3af
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Ethernet LAN (RJ-45) ports	2
Voice codecs	G.711, G.711a, G.722, G.729A, G.729ab, iLBC
Volume control	Digital
Display diagonal	5 \
Display resolution	320 x 222 pixels
Display number of colors	Monochrome
Caller ID	-
Lines quantity	- lines
Phonebook capacity	- entries
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 95 %
Number of handles included	1 pc(s)

Weight and Dimensions

Depth	203.2 mm
Width	266.7 mm
Height	152.4 mm
Weight	1600 g
