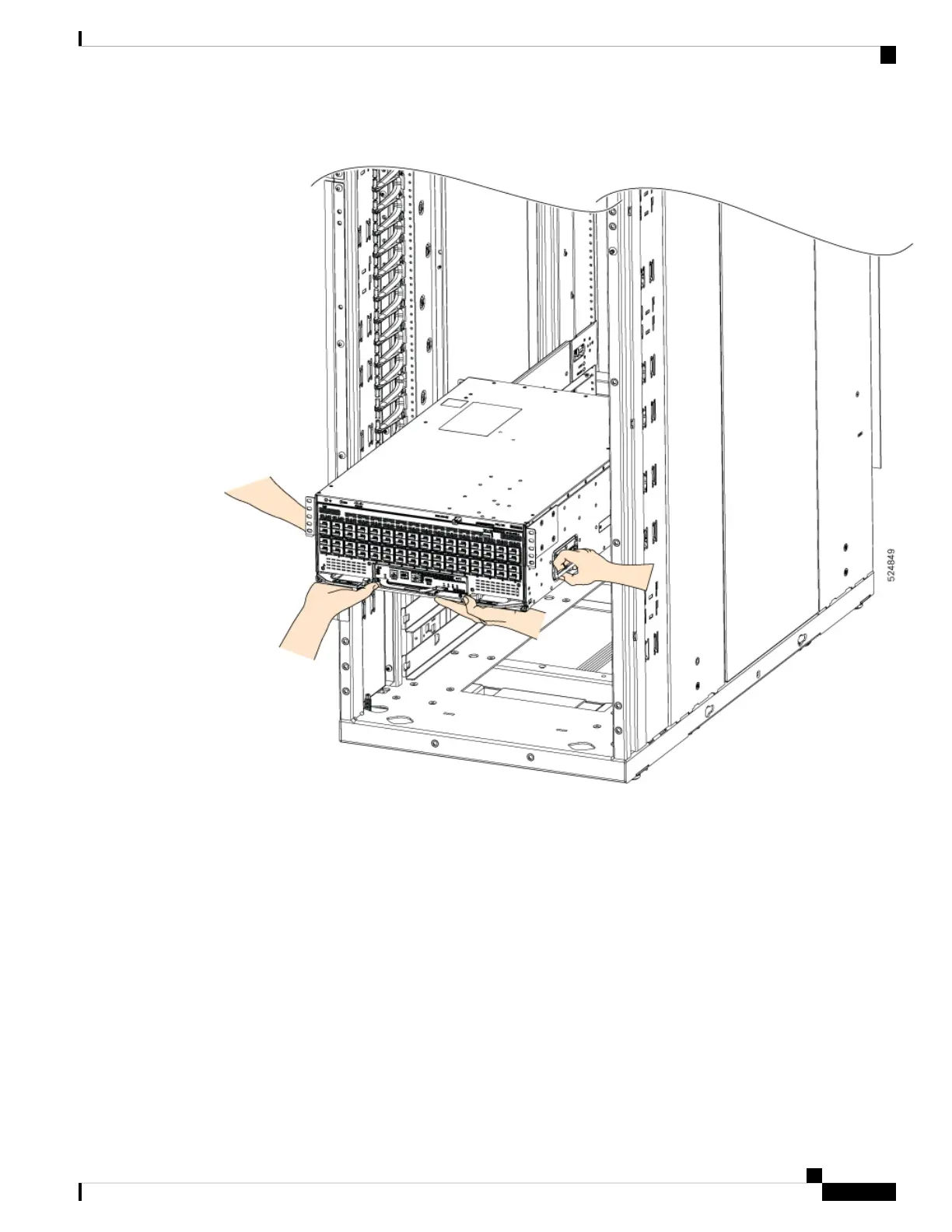

Figure 20: Inserting Chassis to the ORv3N Rack
Step 3 Align the two rack-mount guides on either side of the switch with the guide rails installed in the rack. Slide
the rack-mount guides onto the guide rails, and then gently slide the switch all the way into the rack.
