Chapter 1 Product Overview
Cisco 860, 880, 890 Series
Cisco C897VAB-K9
The Cisco 897VAB-K9 ISR is designed to support 2-pair VDSL2 bonding up to the 17a profile and single
pair support for ADSL/VDSL over POTS up to the 30a profile.
Table 1-38 provides information about important hardware specifications pertaining to Cisco
C897VAB-K9 ISR.

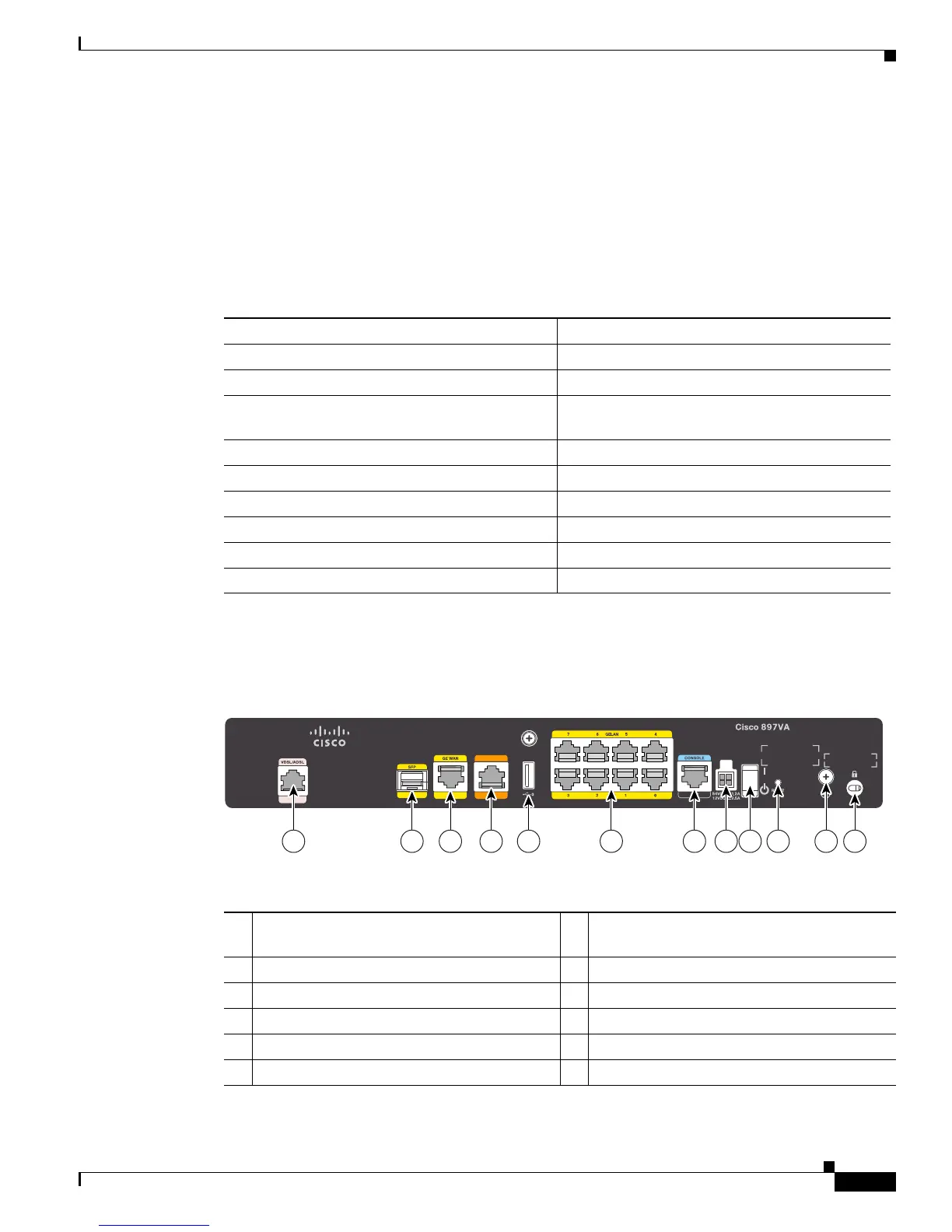

Figure 1-71 shows the back panel of the Cisco 897VAB-K9 ISR.
Figure 1-71 Back panel of the Cisco 897VAB-K9 ISR
Table 1-38 Hardware Specifications of Cisco C897VAB-K9 ISR
Hardware Description
Flash Memory 256 MB
Main Memory 1-GB DDR RAM; fixed and not extendable
USB port A USB 2.0-compliant port located on the back
panel
FAN Fanless chassis
PoE (Optional) Four internal PoE ports
Primary WAN VDSL/ADSL over POTS
Backup WAN 10/100/1000 GE port (RJ-45/SFP)
Console or auxiliary port RJ-45
LAN switch 8-port 10/100/1000 GE Switch
ISDN
over POTS,VDSL
364228
1 2 3 4 5 6 7 10 12118 9
B
1 Primary WAN VDSL / ADSL over POTS,
VDSL2 Bonding
1
7 Console/Auxiliary Port
2 SFP port 8 Power Connector
3 GE WAN Interface 9 On/Off Switch
4 ISDN 10 Reset Button
5 USB Port 11 Earth Ground connection
6 8-port Gigabit Ethernet Switch
2
12 Kensington Security slot

Cisco 860 Series Specifications

General

VPN Support	Yes
Firewall	Yes
QoS	Yes
Data Link Protocol	Ethernet, Fast Ethernet
Remote Management Protocol	SNMP, Telnet, HTTP, HTTPS
Operating System	Cisco IOS
Device Type	Router
WAN Interfaces	1 x 10/100Base-TX - RJ-45
LAN Interfaces	4 x 10/100Base-TX - RJ-45
Connectivity Technology	Wired
Network / Transport Protocol	IPSec, TCP/IP
Features	DHCP support, NAT support, VLAN support, IPv6 support
Compliant Standards	IEEE 802.3, IEEE 802.3u
