Cisco ASR 1004 Quick Start Guide

15
Step 2 Tighten the captive installation screws.
Step 3 Insert the AC power cable into the power supply inlet.
Step 4 Plug the power supply cable into the power source.
Step 5 The power supply LEDs light when power is supplied to the router.

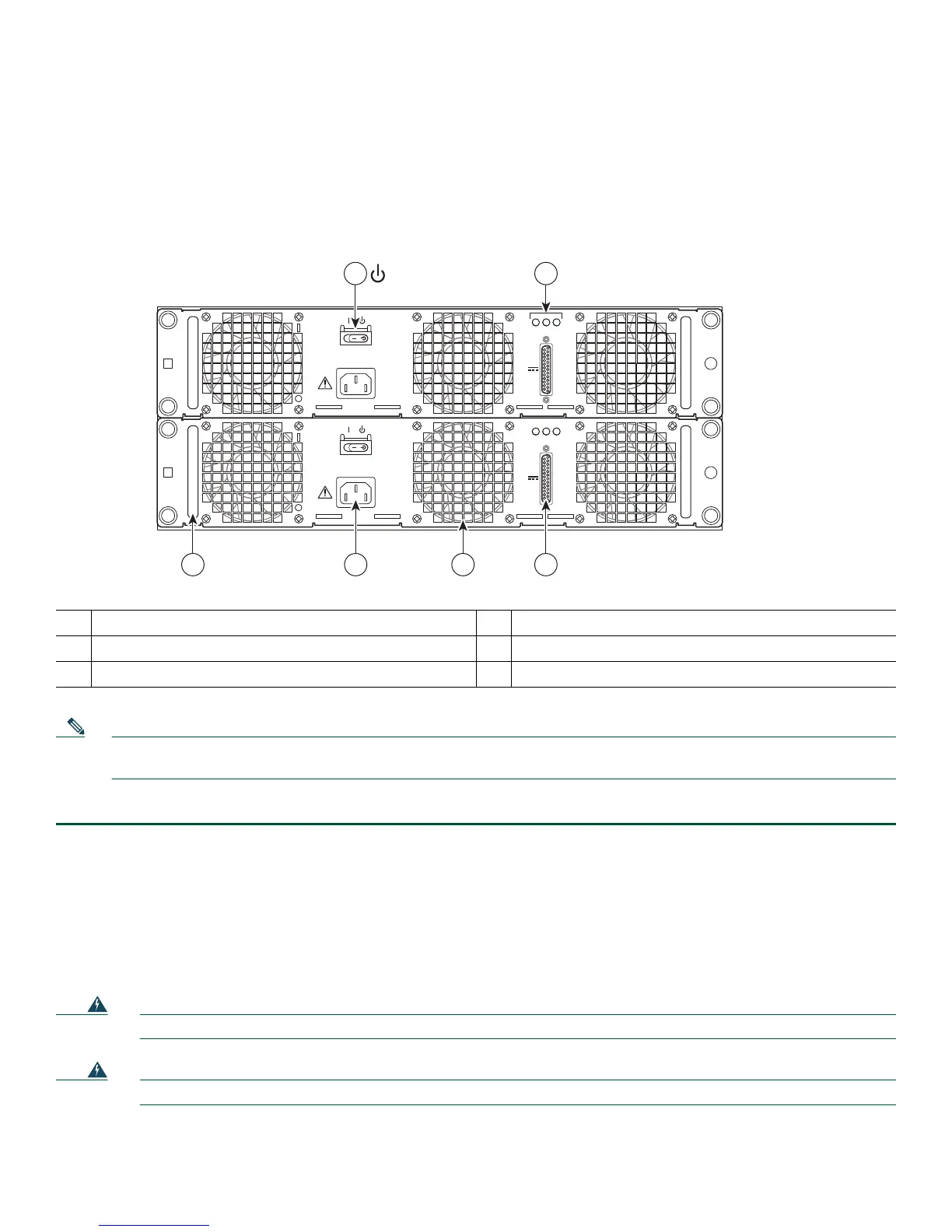

Figure 10 Cisco ASR 1004 Router AC Power Supply
Note Shielded cables must be used to connect to the DB-25 alarm connector on both the AC and DC power supplies, in order
to comply with FCC/EN55022/CISPR22 Class A emissions requirements.
Step 6 Turn the power supply Standby switch to On (|) position.
This completes the procedure for connecting AC-input power.
Connect DC Power to the Router
This section provides instructions for installing the DC power supply into the Cisco ASR 1004 Router. Read the safety warnings
and important notices before you begin.
Warning Installation of the equipment must comply with local and national electrical codes. Statement 1074
Warning Never install an AC power module and a DC power module in the same chassis. Statement 1050
1
AC power supply Standby switch
4
AC power supply fan
2
AC power supply LEDs
5
AC power inlet
3
DB-25 Alarm connector
6
AC power supply handle
280184
OUTPUT INPUT
FAIL
OK OK
FAN
100V-240V~ 12A-5A
50-60Hz
ALARMS
60V
1A MAX
OUTPUT INPUT
FAIL
OK OK
FAN
100V-240V~ 12A-5A
50-60Hz
ALARMS
60V
1A MAX
1 2
34
6
5

Cisco ASR 1004 Specifications

General

Product Type	Router
Form Factor	Rack-mountable
Rack Height	2U
Forwarding Capacity	Up to 20 Gbps
Total Number of Ports	Varies by configuration
Number of Total Expansion Slots	4
Product Series	ASR 1000
Model	ASR 1004
Forwarding Performance	Up to 20 Gbps
Operating System	Cisco IOS XE
Power Supply	Dual
Route Processor	ASR 1000 Series Route Processor
Network Interface Modules	SFP, SFP+, Gigabit Ethernet, 10 Gigabit Ethernet
Interfaces/Ports	Varies by configuration
Expansion Slot Type	SPA
Throughput	20 Gbps
Redundancy	Power supply, Route Processor
Interfaces	Gigabit Ethernet, 10 Gigabit Ethernet, SFP, SFP+
Storage	Up to 64 GB Flash
