Cisco ASR 1004 Quick Start Guide

5
Step 6 To install the Cisco ASR 1004 Router in an equipment rack, see “Four-Post Rack Installation” section on page 6 or
“Two-Post Rack Installation” section on page 8.
Note If you install cable management brackets, make certain that the chassis is mounted in the equipment rack first.
Attach the Rack-Mount Brackets—Chassis Rear-Mounted
To install the rack-mount on a Cisco ASR 1004 Router for a rear rack-mount configuration, follow these steps:
Step 1 Locate the threaded holes in the rear sides of the chassis. Make certain that you hold the rear rack-mount bracket with
the ear facing outward and towards the rear of the chassis. Align the rack-mount bracket to the side of the router.
Step 2 Position the rear rack-mount bracket top hole with the chassis second top hole in from the back (See Figure 2).

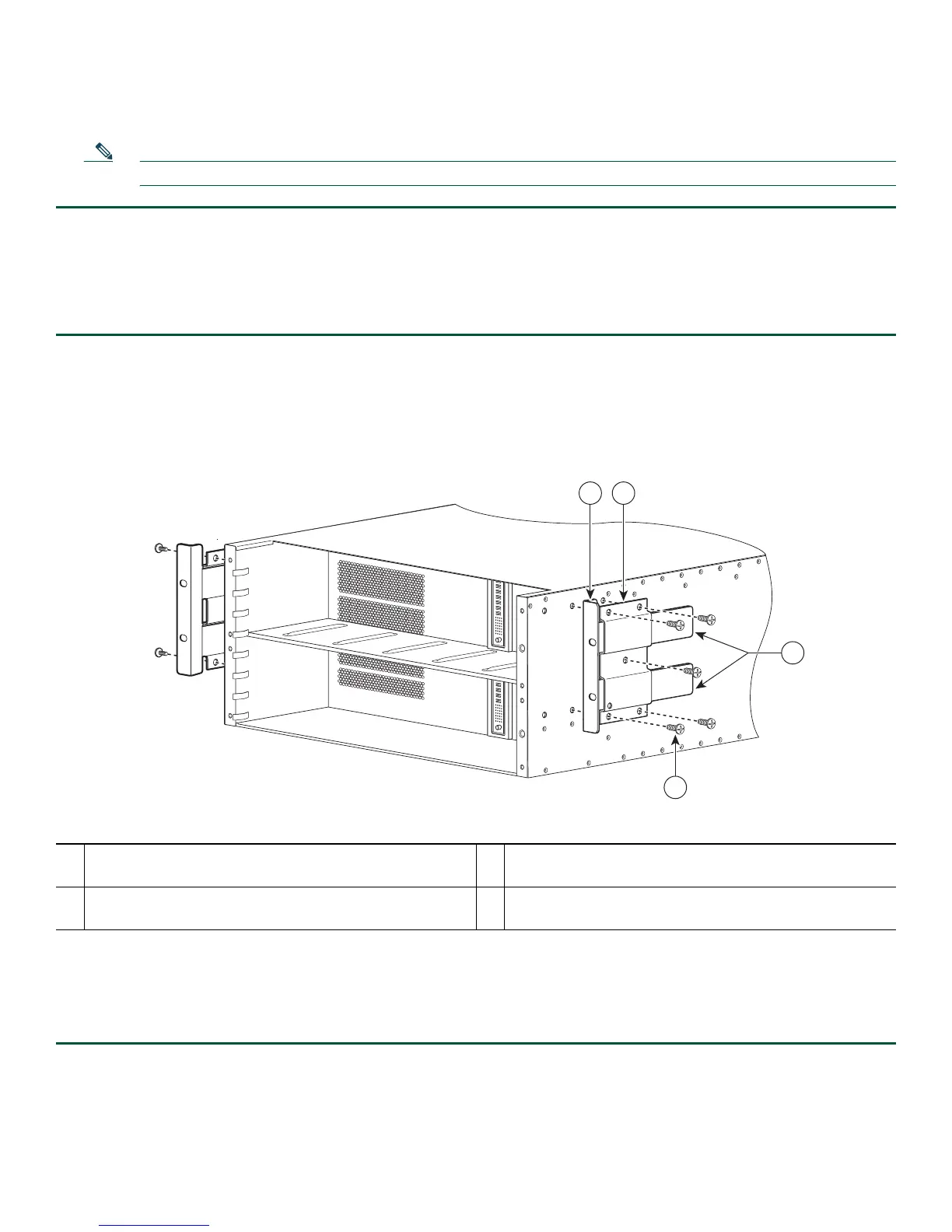

Figure 2 Attaching the Rear Rack-Mount Brackets to Cisco ASR 1004 Router
Step 3 Insert and tighten the screws. After the bracket is secured to the side of the chassis, slide the two remaining components
into the side rack-mount bracket.
Step 4 Repeat Step 1 through Step 3 on the other side of the chassis. Use the screws on each side to secure the rear rack-mount
brackets to the chassis.
This completes the procedure for attaching rear rack-mount brackets to the chassis. Continue on to installing the chassis in a
rack.
1
Rear rack-mount bracket ear and holes
3
Rear rack-mount bracket components that slide into rear
bracket which is attached to the chassis
2
Rear rack-mount bracket (first bracket to attach to
chassis)
4
Rear rack-mount bracket screws
280175
1
1
0
3
4
1 2

Cisco ASR 1004 Specifications

General

Product Type	Router
Form Factor	Rack-mountable
Rack Height	2U
Forwarding Capacity	Up to 20 Gbps
Total Number of Ports	Varies by configuration
Number of Total Expansion Slots	4
Product Series	ASR 1000
Model	ASR 1004
Forwarding Performance	Up to 20 Gbps
Operating System	Cisco IOS XE
Power Supply	Dual
Route Processor	ASR 1000 Series Route Processor
Network Interface Modules	SFP, SFP+, Gigabit Ethernet, 10 Gigabit Ethernet
Interfaces/Ports	Varies by configuration
Expansion Slot Type	SPA
Throughput	20 Gbps
Redundancy	Power supply, Route Processor
Interfaces	Gigabit Ethernet, 10 Gigabit Ethernet, SFP, SFP+
Storage	Up to 64 GB Flash
