Cisco ASR 1004 Quick Start Guide

4
Prepare for Rack-Mount Installation
Before you begin the rack-mounting tasks:
• Decide whether or not you want to front- mount or rear-mount the chassis
• Decide whether or not you want to attach cable-management brackets to your chassis.
Note If you install cable management brackets, make certain that you use the specified rack-mount ear holes as stated in
the procedure.
• Decide if a two-post or four-post rack-mount will be used
3 Rack-Mount the Router
This section provides information for rack-mounting the router.
Attach the Rack-Mount Brackets—Chassis Front-Mounted

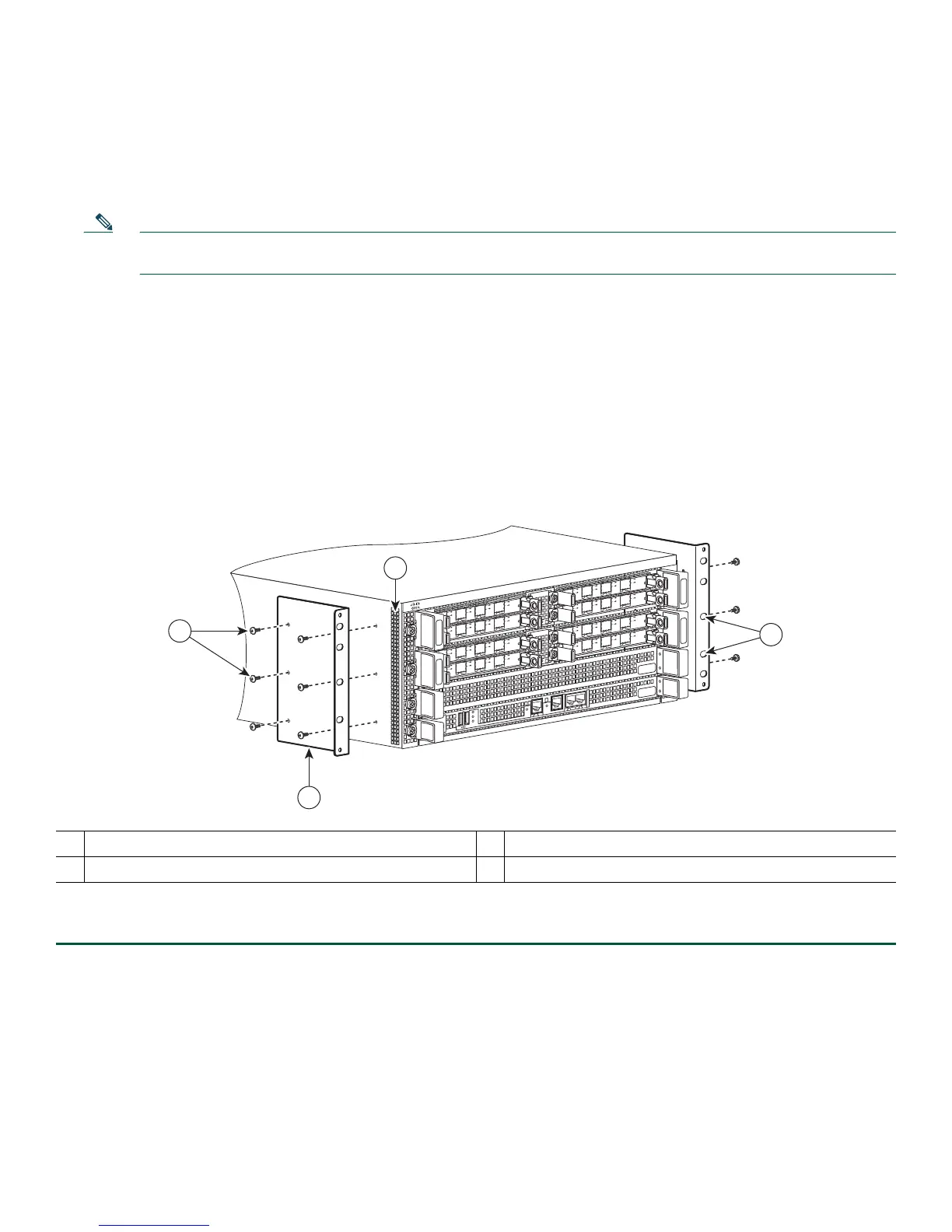

Figure 1 Front Rack-Mount Brackets for the Cisco ASR 1004 Router
To install the rack-mount brackets on a Cisco ASR 1004 Router for a front rack-mount configuration, follow these steps:
Step 1 Locate the threaded holes in the front sides of the chassis.
Step 2 Align the rack-mount bracket to the side of the router. Depending on which set of rack-mount bracket holes you choose
to use to attach the rack-mount bracket to the router, the chassis will either be recessed in the rack or protrude from
the rack.
Step 3 Position the front rack-mount bracket top hole with the chassis first top hole behind the side vent holes as shown in
Figure 1.
Step 4 Insert and tighten the screws on one side.
Step 5 Repeat Step 1 through Step 4 on the other side of the chassis. Use the black screws to secure the rack-mount brackets
to the chassis.
1
Front rack-mount bracket
3
Chassis side vent holes
2
Front rack-mount bracket screws
4
Front rack-mount bracket and ear holes
280174
1
4
2
3

Cisco ASR 1004 Specifications

General

Product Type	Router
Form Factor	Rack-mountable
Rack Height	2U
Forwarding Capacity	Up to 20 Gbps
Total Number of Ports	Varies by configuration
Number of Total Expansion Slots	4
Product Series	ASR 1000
Model	ASR 1004
Forwarding Performance	Up to 20 Gbps
Operating System	Cisco IOS XE
Power Supply	Dual
Route Processor	ASR 1000 Series Route Processor
Network Interface Modules	SFP, SFP+, Gigabit Ethernet, 10 Gigabit Ethernet
Interfaces/Ports	Varies by configuration
Expansion Slot Type	SPA
Throughput	20 Gbps
Redundancy	Power supply, Route Processor
Interfaces	Gigabit Ethernet, 10 Gigabit Ethernet, SFP, SFP+
Storage	Up to 64 GB Flash
