Cisco ASR 1004 Quick Start Guide

19

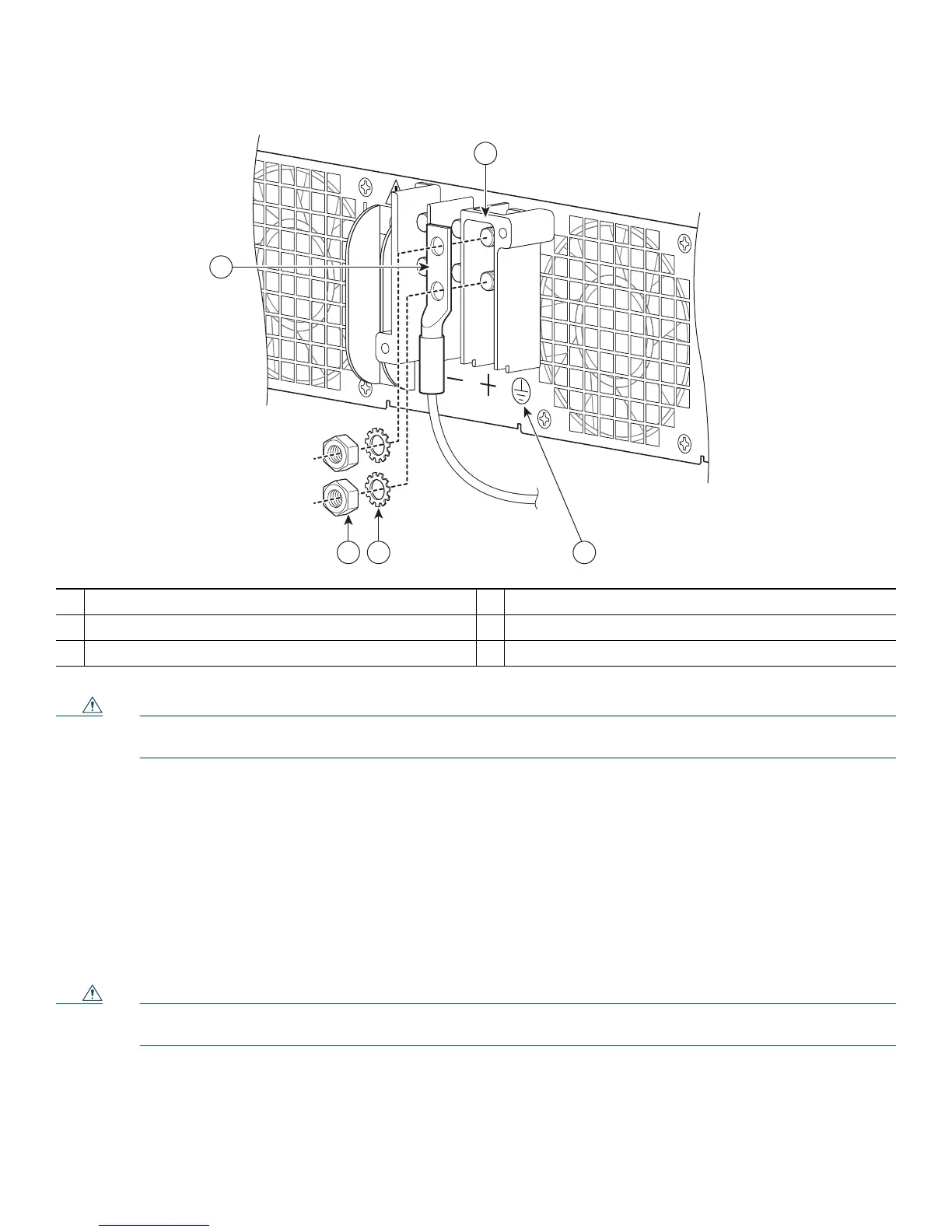

Figure 12 Cisco ASR 1004 Router DC Power Supply Terminal Block
Caution Before you continue to install the terminal block wires, stop and perform Step 3 to prevent any contact with metal
lead on the ground wire.
Step 3 You must wrap the positive and negative cables with sleeving. Take each ground wire and cover the area from the lug
to the wire with heavy shrink sleeving.
Step 4 Insert the positive and negative cables. Replace the ground lug with cable in the following order:
a. Ground lug with negative wire
b. Washer
c. Kepnut screw
Step 5 Tighten the Kepnut screw and repeat the same steps for the positive ground stud and wire.
Step 6 Replace the terminal block plastic cover and tighten the screw. The plastic cover is slotted and keyed to fit correctly
over the terminal block.
Caution Secure the wires coming in from the terminal block so that they cannot be disturbed by casual contact. There are
hooks located on the base of the DC power supply to secure the ties to.
Step 7 Use tie wraps to secure the wires, so that the wires are not pulled from the terminal block by casual contact. The DC
power supply has tie-wrap tabs to aid in securing the wires. Make sure the tie wrap allows for some slack in the ground
wire.
1
Ground lug and positive lead wire
4
Washer
2
Terminal block and positive stud
5
Kepnut screw
3
Earth grounding symbol
280187
2
5 4 3
1

Cisco ASR 1004 Specifications

General

Product Type	Router
Form Factor	Rack-mountable
Rack Height	2U
Forwarding Capacity	Up to 20 Gbps
Total Number of Ports	Varies by configuration
Number of Total Expansion Slots	4
Product Series	ASR 1000
Model	ASR 1004
Forwarding Performance	Up to 20 Gbps
Operating System	Cisco IOS XE
Power Supply	Dual
Route Processor	ASR 1000 Series Route Processor
Network Interface Modules	SFP, SFP+, Gigabit Ethernet, 10 Gigabit Ethernet
Interfaces/Ports	Varies by configuration
Expansion Slot Type	SPA
Throughput	20 Gbps
Redundancy	Power supply, Route Processor
Interfaces	Gigabit Ethernet, 10 Gigabit Ethernet, SFP, SFP+
Storage	Up to 64 GB Flash
