Cisco ASR 1004 Quick Start Guide

35

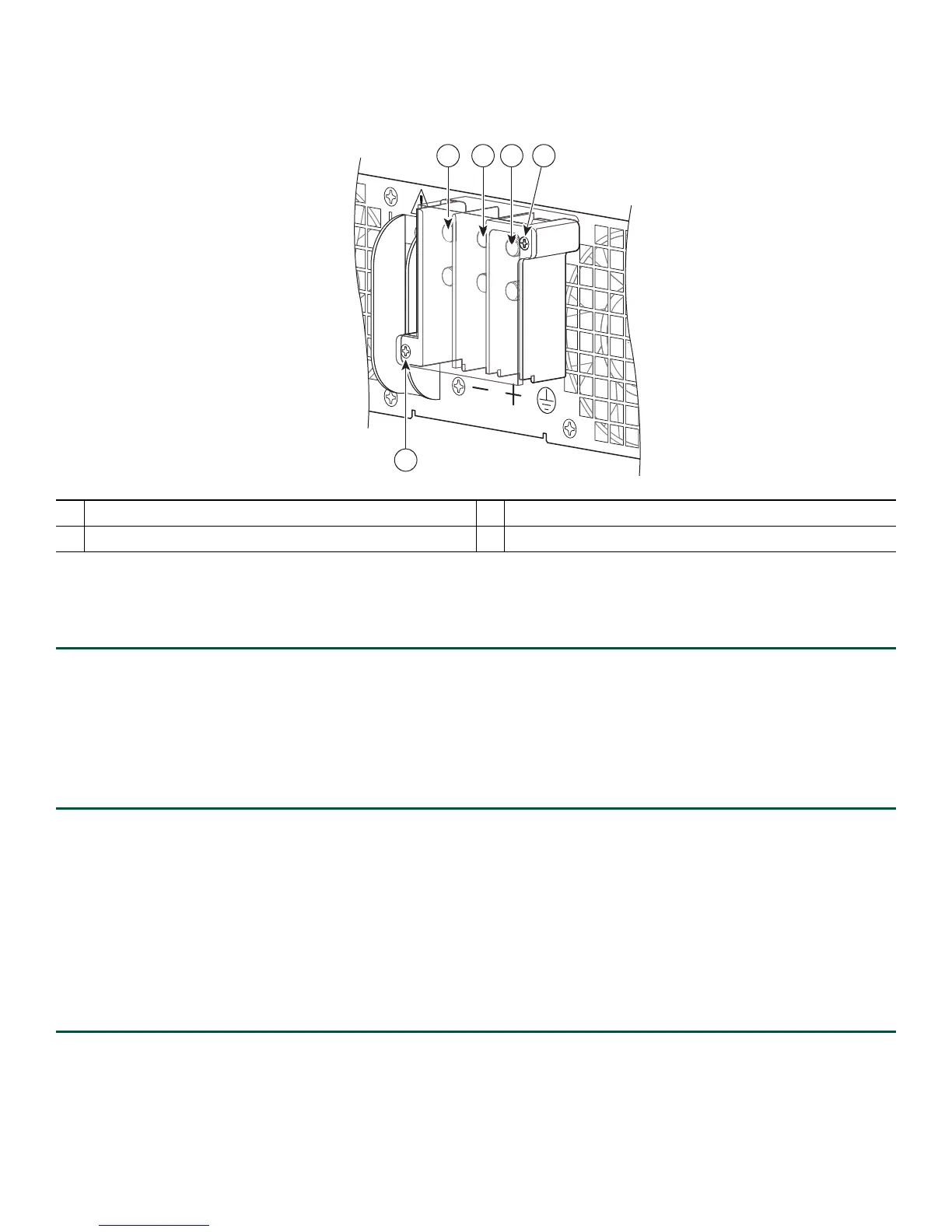

Figure 15 Cisco ASR 1004 Router DC Power Supply Terminal Block
Step 11 Remove the tape from the circuit-breaker switch handle and move the circuit-breaker handle to the on position, if you
taped the circuit breaker.
Step 12
Switch the On/Off circuit breaker switch to the On (|) position.
This completes the procedure of removing a DC power supply from the Cisco ASR 1004 Router.
Install and Remove the SPA Interface Processor (SIP)
This section provides instructions for installing and removing the SIP from the Cisco ASR 1004 Router.
Step 1 Before you begin, make certain the chassis is grounded.
Step 2 Attach an ESD wrist strap between you and an unpainted chassis surface.
Step 3 To insert the SIP, carefully align the edges of the SIP between the upper and lower edges of the module slot.
Step 4 Carefully slide the SIP into the module slot until the SIP makes contact with the backplane.
Step 5 Tighten the locking thumbscrews on both sides of the SIP. See
Step 6 To remove the SIP, first disconnect all cables from each SPA.
Step 7 Loosen the locking thumbscrews on both sides of the SIP.
Step 8 Slide the SIP out of the module slot. If you are removing a blank filler plate, pull the blank filler plate completely out
of the module slot.
1
Terminal block and negative stud
3
Earth ground stud
2
Terminal block and positive stud
4
Plastic cover screws
4
1 2 3 4
280188

Cisco ASR 1004 Specifications

General

Product Type	Router
Form Factor	Rack-mountable
Rack Height	2U
Forwarding Capacity	Up to 20 Gbps
Total Number of Ports	Varies by configuration
Number of Total Expansion Slots	4
Product Series	ASR 1000
Model	ASR 1004
Forwarding Performance	Up to 20 Gbps
Operating System	Cisco IOS XE
Power Supply	Dual
Route Processor	ASR 1000 Series Route Processor
Network Interface Modules	SFP, SFP+, Gigabit Ethernet, 10 Gigabit Ethernet
Interfaces/Ports	Varies by configuration
Expansion Slot Type	SPA
Throughput	20 Gbps
Redundancy	Power supply, Route Processor
Interfaces	Gigabit Ethernet, 10 Gigabit Ethernet, SFP, SFP+
Storage	Up to 64 GB Flash
