Cisco ASR 9010 Installation Guide

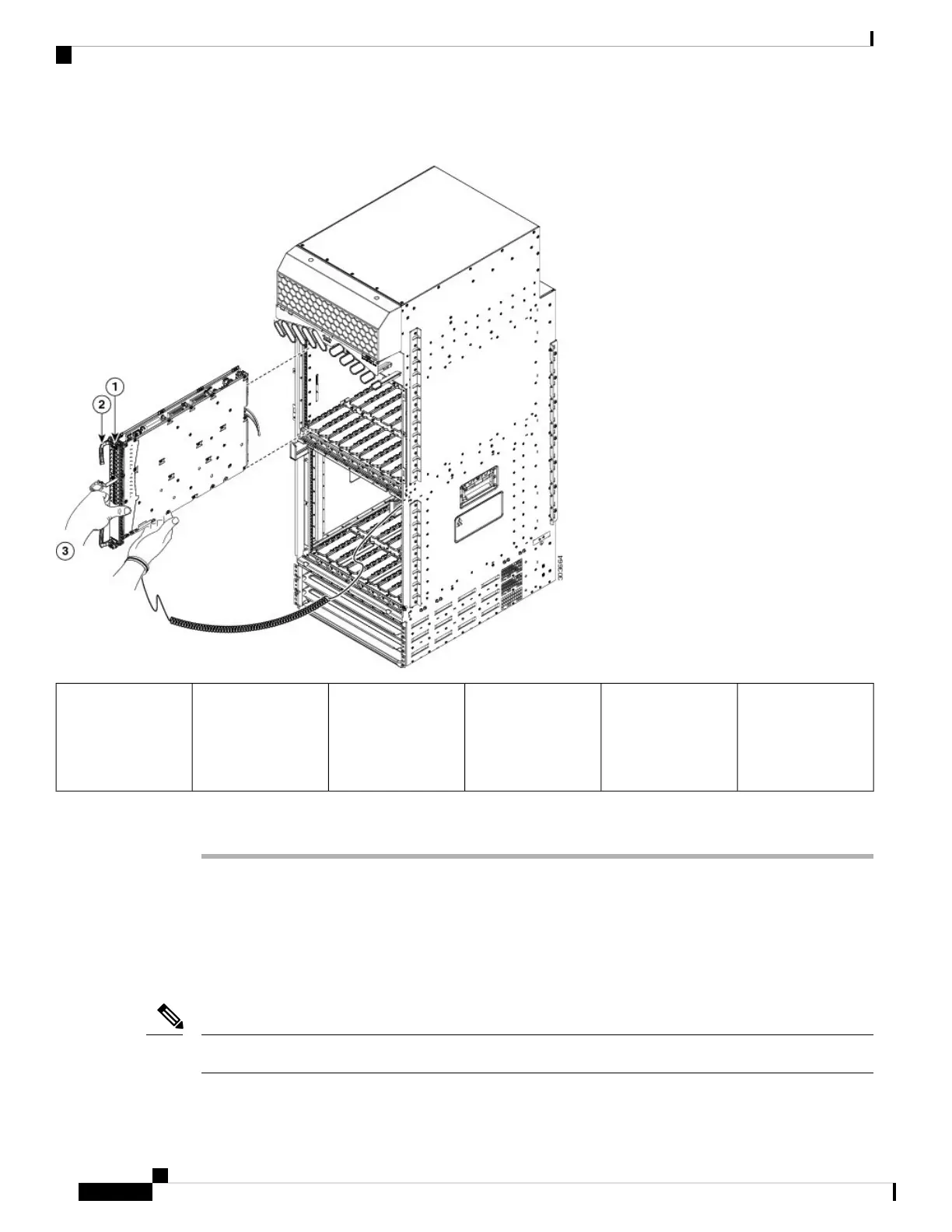

Figure 109: Removing a Line Card from the Cisco ASR 9912 Router Top Card Cage
Slide the card out of
the chassis.
3Pivot the ejector
levers outward to
unseat the card from
the backplane
connector.
2Loosen the captive
screws.
1
Step 4 Repeat Step 2 or Step 3 for each FC, LC, and RP card.
Rack-Mounting the Router Chassis
The router chassis is installed in a front-mounted position, as shown in the Telco 2-Post Rack section.
In a front-mounted position, the chassis rack-mounting flanges are secured directly to the rack posts.
The Cisco ASR 9922 Router and Cisco ASR 9912 Router are designed to mount in only 4-post racks.
Note
Cisco ASR 9000 Series Aggregation Services Router Hardware Installation Guide
102
Unpacking and Installing the Chassis
Rack-Mounting the Router Chassis

Cisco ASR 9010 Specifications

General

Chassis	Modular
Rack Units	21 RU
Operating System	Cisco IOS XR
Form Factor	Rack-mountable
Number of Slots	10
Power Supply	AC or DC
Redundancy	Yes
Slots	8 line card slots, 2 route switch processor slots
Memory	16 GB DRAM
Storage	64 GB SSD (Route Processor)
Port Types	Ethernet, OTN
Redundancy Features	Route Processor, Power Supply, Fan Tray
Operating Temperature	32 to 104°F (0 to 40°C)
Humidity	5% to 90% non-condensing
Route Processor	Cisco ASR 9000 Series Route Switch Processor
