1000Base-T Signal100Base-TX SignalMGT LAN Port
Pin
BI_DC–Unused5
BI_DB–Receive–6
BI_DD+Unused7
BI_DD–Unused8
Management LAN Port LED Indicators
The Management LAN connectors have integral LED indicators. When lit, these LEDs indicate:
• Green (LINK)—Connection is alive.
• Amber (ACT)—Connection is active.

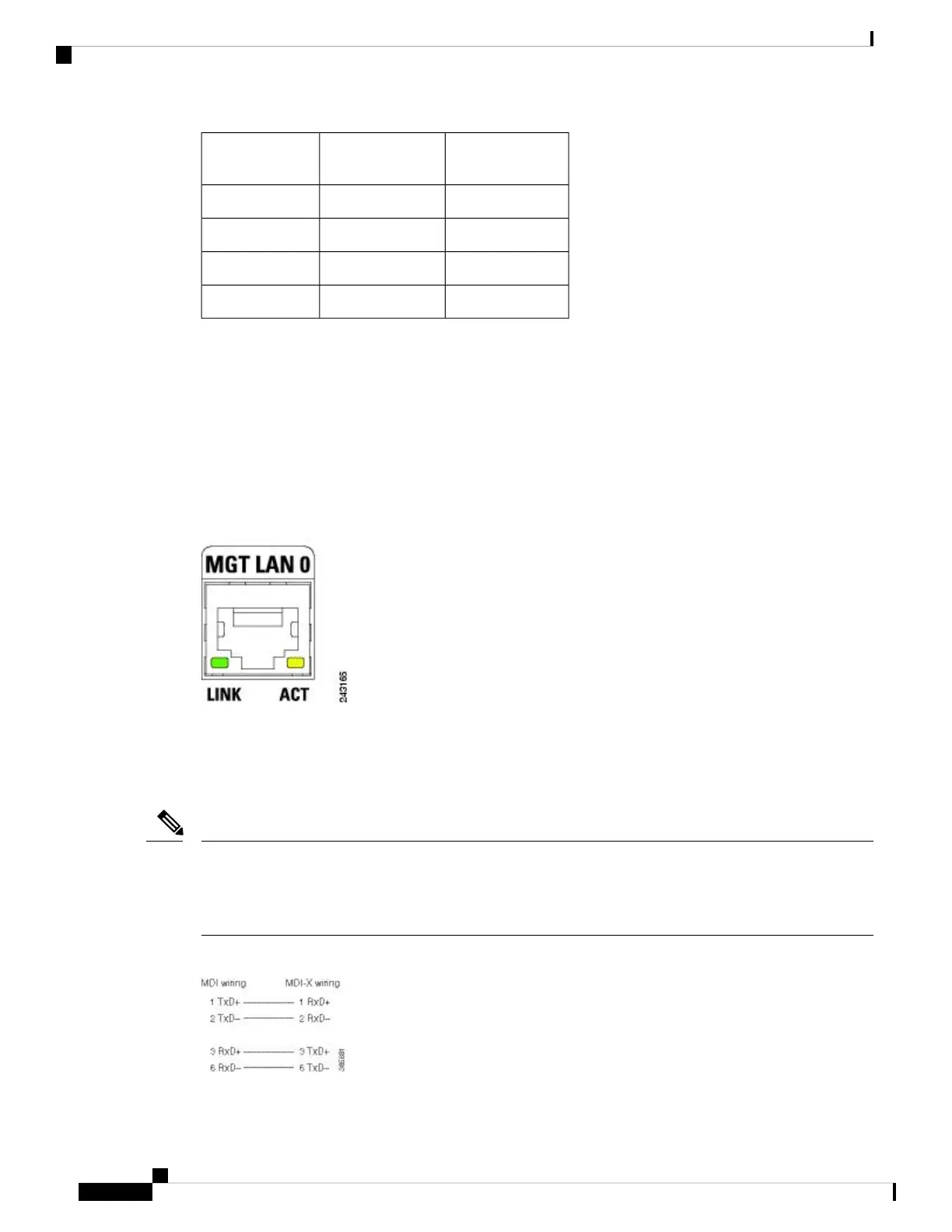

Figure 61: RSP/RP Management LAN Port LED Indicators
Management LAN RJ-45 Cabling
When connecting the RJ-45 port to a hub, repeater, or switch, use the straight-through cable pinout as shown
in the below figure.
To comply with the intrabuilding lightning surge requirements of Telecordia GR-1089-CORE, Issue II,
Revision 01, February 1999, you must use a shielded cable when connecting to the management LAN ports
on the RSP/RP card. The shielded cable is terminated by shielded connectors on both ends, with the cable
shield material tied to both connectors.
Note
Figure 62: Straight-Through Cable Pinout to a Hub, Repeater or Switch
Cisco ASR 9000 Series Aggregation Services Router Hardware Installation Guide
50
Preparing for Installation
Management LAN Port LED Indicators

Cisco ASR 9010 Specifications

General

Chassis	Modular
Rack Units	21 RU
Operating System	Cisco IOS XR
Form Factor	Rack-mountable
Number of Slots	10
Power Supply	AC or DC
Redundancy	Yes
Slots	8 line card slots, 2 route switch processor slots
Memory	16 GB DRAM
Storage	64 GB SSD (Route Processor)
Port Types	Ethernet, OTN
Redundancy Features	Route Processor, Power Supply, Fan Tray
Operating Temperature	32 to 104°F (0 to 40°C)
Humidity	5% to 90% non-condensing
Route Processor	Cisco ASR 9000 Series Route Switch Processor
