Cisco ASR 9010 Installation Guide

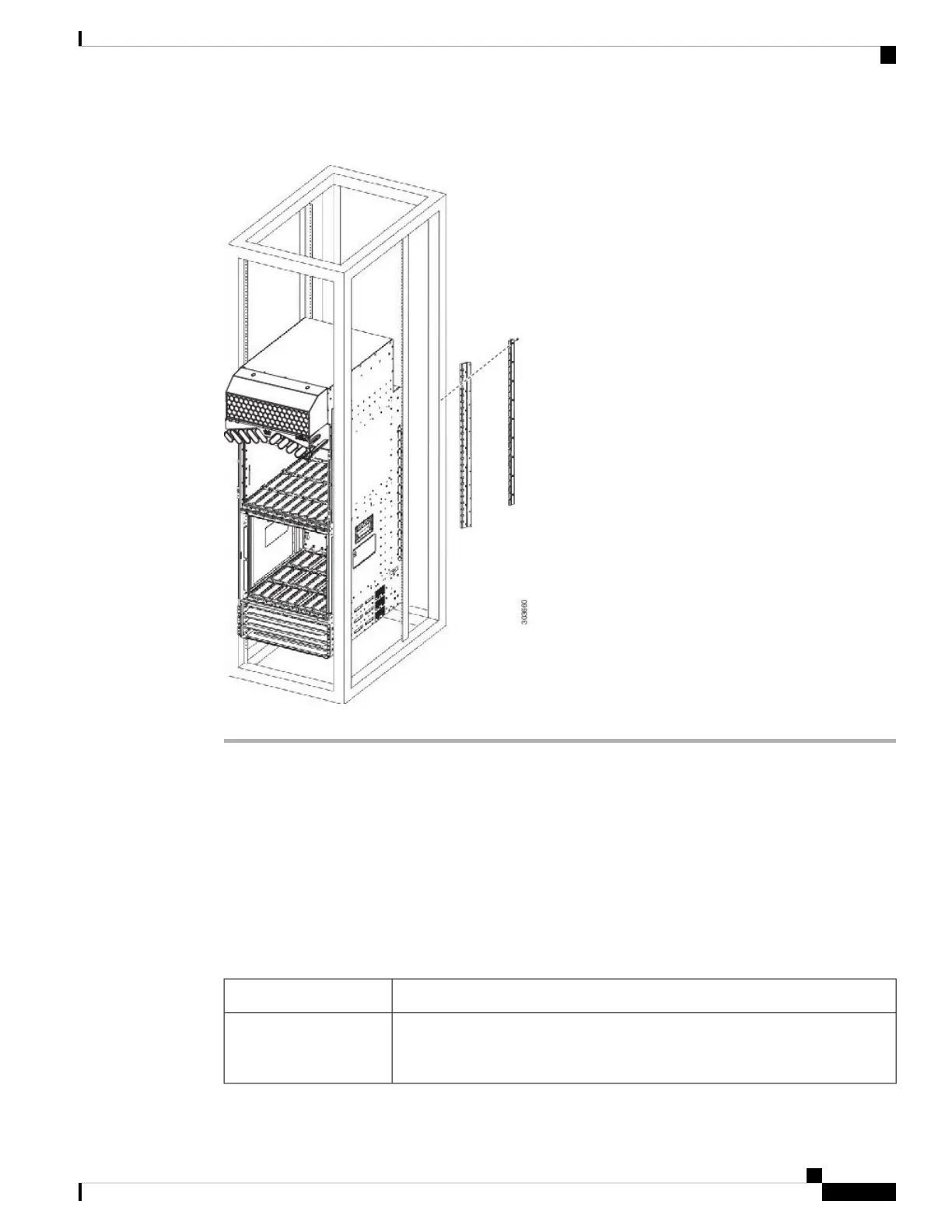

Figure 128: Installing the Cisco ASR 9922 Router Chassis in a 4-Post Rack
Supplemental Bonding and Grounding Connections
Before you connect power to the router, or power on the router for the first time, we recommend that you
connect the central office ground system or Network Equipment Building System (NEBS) to the threaded
supplemental bonding and grounding receptacles on the router. For more information on supplemental bonding
and grounding cable requirements, see NEBS Supplemental Unit Bonding and Grounding Guidelines.
The table below references the grounding receptacle locations for the Cisco ASR 9000 Series Routers.
Table 12: Grounding Receptacle Locations
Grounding Receptacle LocationModel Number
Bottom rear right side of the chassis (Figure 129: NEBS Bonding and Grounding
for the Cisco ASR 9010 Router, on page 122).
Cisco ASR 9010 Router
and Cisco ASR 9910
Router
Cisco ASR 9000 Series Aggregation Services Router Hardware Installation Guide
121
Unpacking and Installing the Chassis
Supplemental Bonding and Grounding Connections

Cisco ASR 9010 Specifications

General

Chassis	Modular
Rack Units	21 RU
Operating System	Cisco IOS XR
Form Factor	Rack-mountable
Number of Slots	10
Power Supply	AC or DC
Redundancy	Yes
Slots	8 line card slots, 2 route switch processor slots
Memory	16 GB DRAM
Storage	64 GB SSD (Route Processor)
Port Types	Ethernet, OTN
Redundancy Features	Route Processor, Power Supply, Fan Tray
Operating Temperature	32 to 104°F (0 to 40°C)
Humidity	5% to 90% non-condensing
Route Processor	Cisco ASR 9000 Series Route Switch Processor
