Cisco ASR 9010 Installation Guide

Procedure
Step 1 Push the door latch to the left to release the door.
Step 2 Pivot the door to the right to eject the power module from its bay.
Step 3 Slide the power module out of its bay while supporting it with your other hand.
Use two hands to remove the power module. The power supply weighs about 6.5 pounds (2.95 kg).
Caution

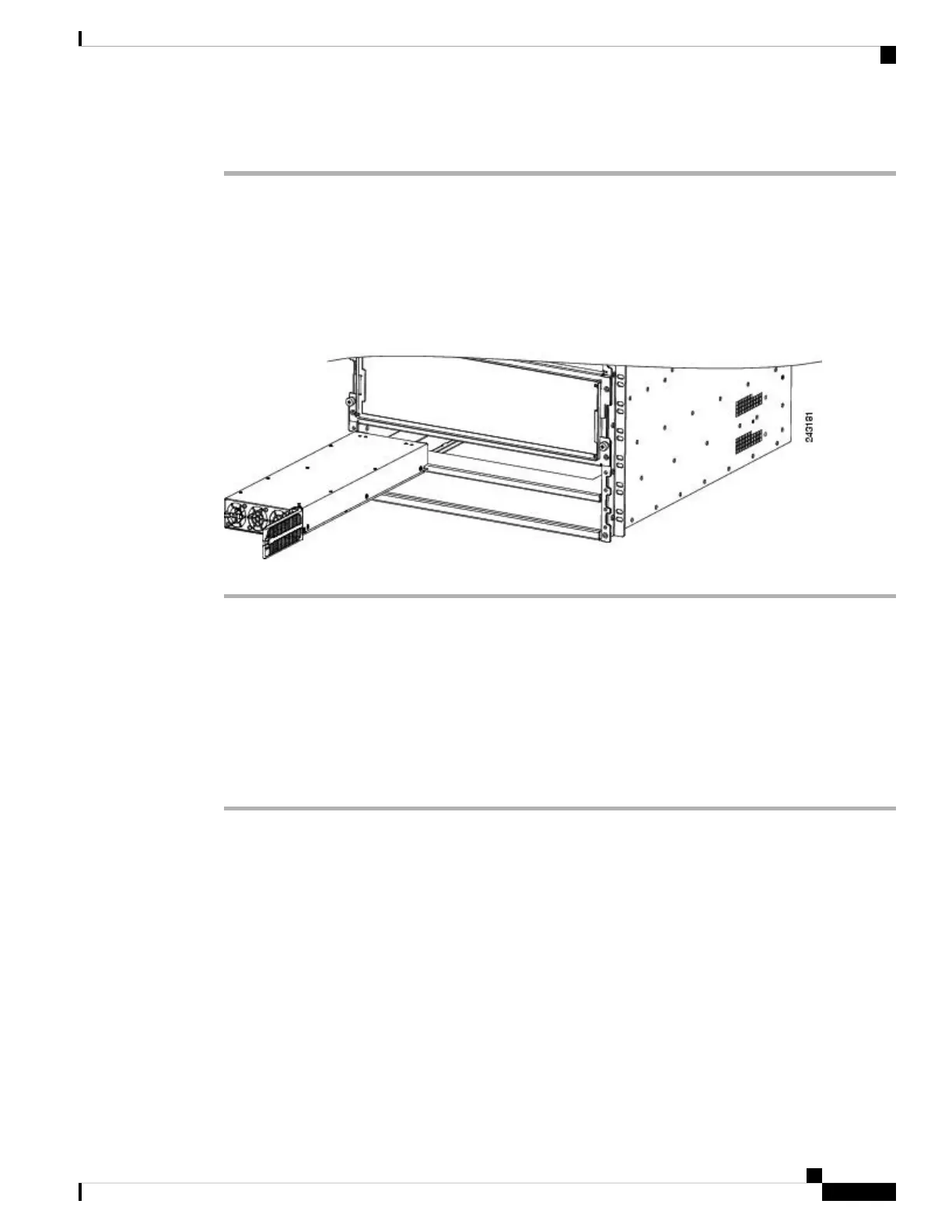

Figure 211: Removing or Installing a Version 1 AC or DC Power Module
Removing a Version 2 or Version 3 AC or DC Power Module
Follow these steps to remove a version 2 or version 3 AC or DC power module from the chassis (see figure
titled Removing or Installing a Version 2 or Version 3 AC or DC Power Module). The Cisco ASR 9904 Router
chassis only has one power tray as shown in the figure titled Removing or Installing a Version 2 AC or DC
Power Module from the Cisco ASR 9904 Router .
Procedure
Step 1 Pull the handle down.
Unscrew the screw that secures the power module using a 7/16 hex socket and torque wrench with
the torque set to 50 in-lb.
Note
Step 2 Slide the power module out of its bay while supporting it with your other hand.
Cisco ASR 9000 Series Aggregation Services Router Hardware Installation Guide
235
Replacing Cisco ASR 9000 Series Router Components
Removing a Version 2 or Version 3 AC or DC Power Module

Cisco ASR 9010 Specifications

General

Chassis	Modular
Rack Units	21 RU
Operating System	Cisco IOS XR
Form Factor	Rack-mountable
Number of Slots	10
Power Supply	AC or DC
Redundancy	Yes
Slots	8 line card slots, 2 route switch processor slots
Memory	16 GB DRAM
Storage	64 GB SSD (Route Processor)
Port Types	Ethernet, OTN
Redundancy Features	Route Processor, Power Supply, Fan Tray
Operating Temperature	32 to 104°F (0 to 40°C)
Humidity	5% to 90% non-condensing
Route Processor	Cisco ASR 9000 Series Route Switch Processor
