Cisco ASR 9010 Installation Guide

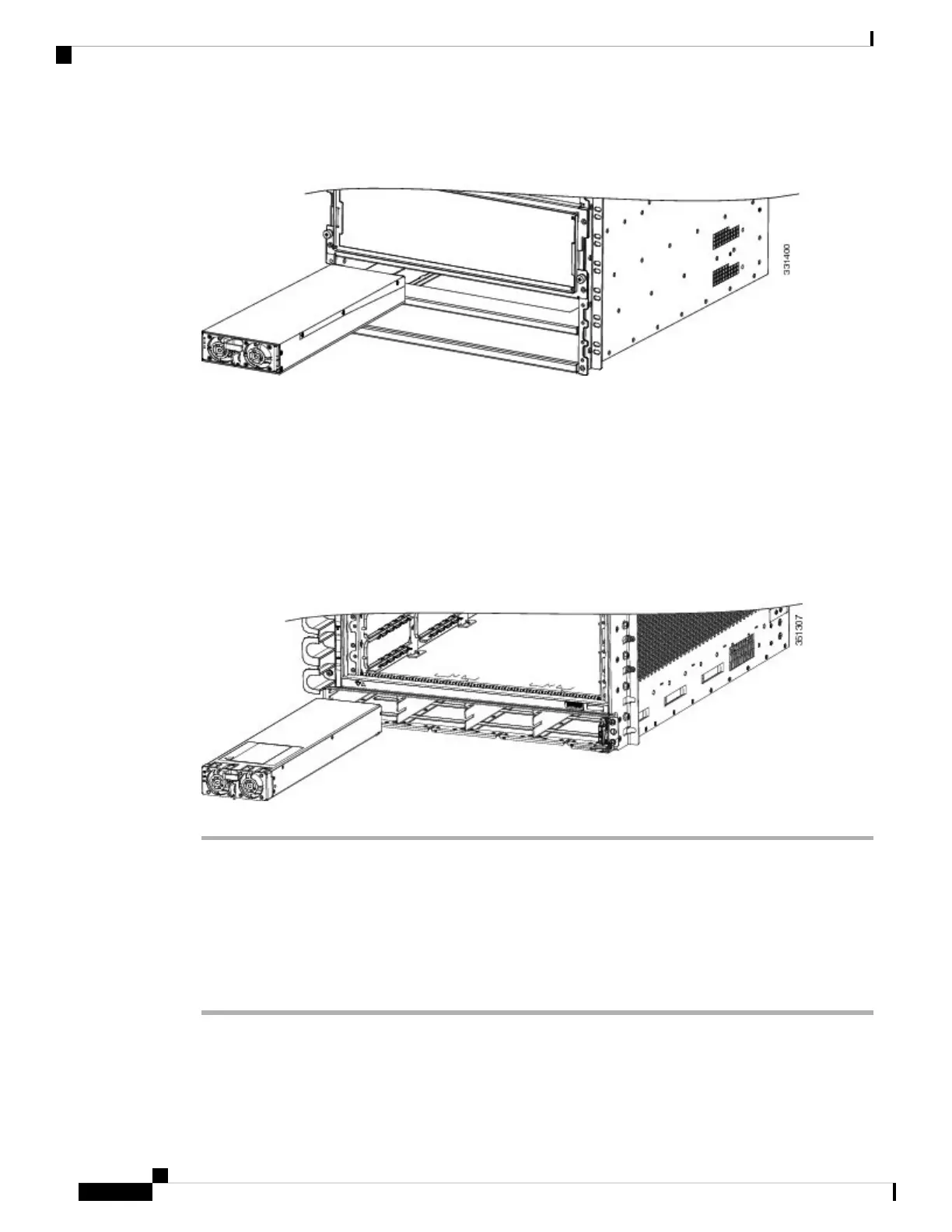

Figure 212: Removing or Installing a Version 2 or Version 3 AC or DC Power Module
Figure 213: Removing or Installing a Version 2 AC or DC Power Module from the Cisco ASR 9904 Router
Installing a Version 1 AC or DC Power Module
Follow these steps to install a new version 1 AC or DC power module (Figure 211: Removing or Installing
a Version 1 AC or DC Power Module, on page 235):
Procedure
Step 1 Slide the power module into the bay until it mates with its backplane connector.
Step 2 Pivot the door to the left until the door latch locks.
Cisco ASR 9000 Series Aggregation Services Router Hardware Installation Guide
236
Replacing Cisco ASR 9000 Series Router Components
Installing a Version 1 AC or DC Power Module

Cisco ASR 9010 Specifications

General

Chassis	Modular
Rack Units	21 RU
Operating System	Cisco IOS XR
Form Factor	Rack-mountable
Number of Slots	10
Power Supply	AC or DC
Redundancy	Yes
Slots	8 line card slots, 2 route switch processor slots
Memory	16 GB DRAM
Storage	64 GB SSD (Route Processor)
Port Types	Ethernet, OTN
Redundancy Features	Route Processor, Power Supply, Fan Tray
Operating Temperature	32 to 104°F (0 to 40°C)
Humidity	5% to 90% non-condensing
Route Processor	Cisco ASR 9000 Series Route Switch Processor
