• Ensure that you have the following clearances around the chassis:
• Rear and front: Minimum of 6.00 inches (15.24 cm) of clearance.
• Sides: Minimum of 2.95 inches (7.49 cm) of clearance on each side of the chassis.

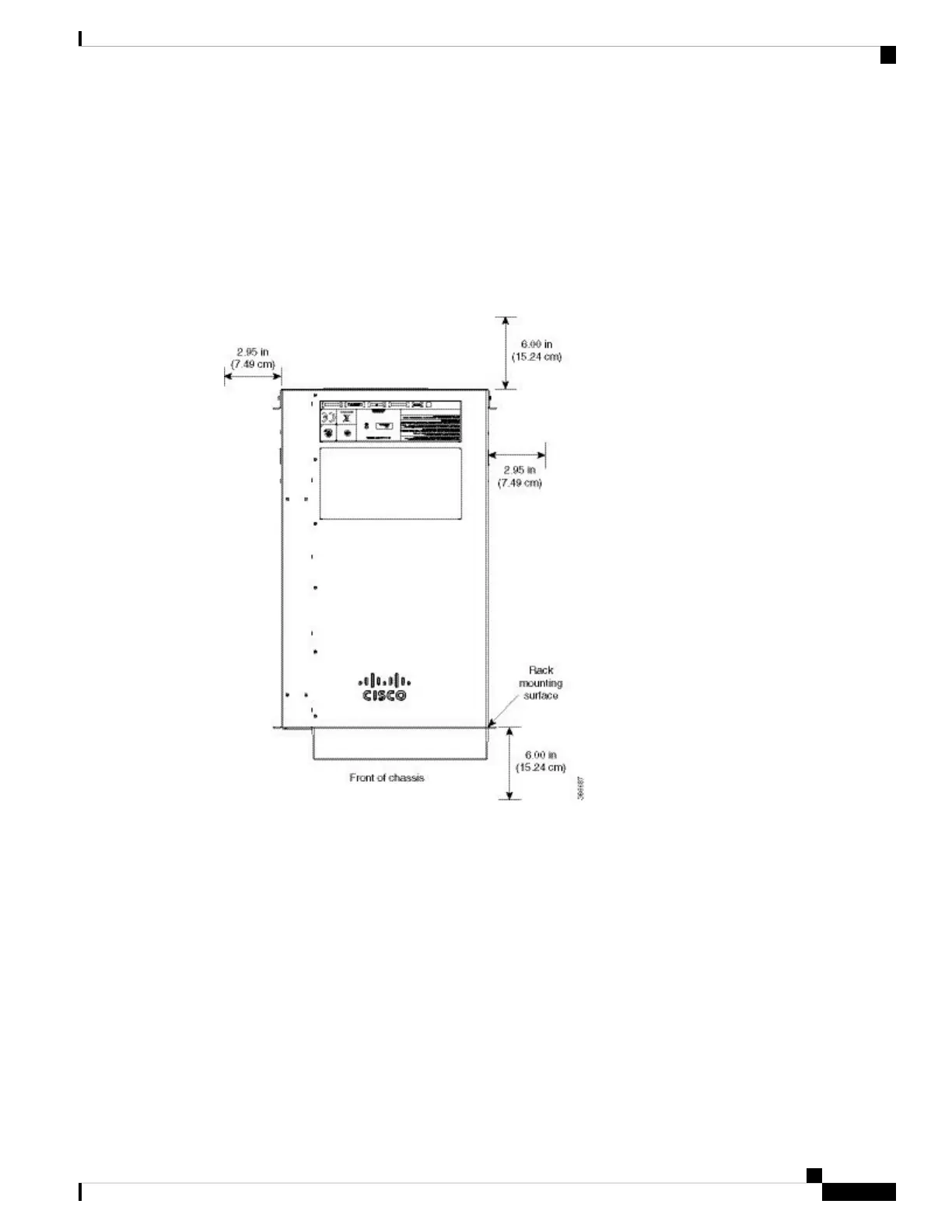

This figure shows the side, front, and rear chassis air-flow clearance requirements for mounting the Cisco
ASR 9906 Router in a 4-post enclosed rack.
Figure 23: Cisco ASR 9906 Router Clearance Requirements in a 4-Post Rack Installation
Cisco ASR 9910 Router Clearance Requirements
To install the Cisco ASR 9910 in a 4-post enclosed cabinet:
• The front and rear doors of the cabinet must be removed or be perforated with a minimum open area of
70 percent open area (80 percent for 800-mm racks).
• Ensure that you have the following clearances around the chassis:
• Rear: Minimum of 6 inches (15.24 cm) of clearance.
• Sides: Minimum of 2.87 inches (7.28 cm) of clearance on each side of the chassis.
This figure shows the side and rear chassis air-flow clearance requirements for mounting the router in a 4-post
enclosed rack.
Cisco ASR 9000 Series Aggregation Services Router Hardware Installation Guide
23
Preparing for Installation
Cisco ASR 9910 Router Clearance Requirements

Cisco ASR 9010 Specifications

General

Chassis	Modular
Rack Units	21 RU
Operating System	Cisco IOS XR
Form Factor	Rack-mountable
Number of Slots	10
Power Supply	AC or DC
Redundancy	Yes
Slots	8 line card slots, 2 route switch processor slots
Memory	16 GB DRAM
Storage	64 GB SSD (Route Processor)
Port Types	Ethernet, OTN
Redundancy Features	Route Processor, Power Supply, Fan Tray
Operating Temperature	32 to 104°F (0 to 40°C)
Humidity	5% to 90% non-condensing
Route Processor	Cisco ASR 9000 Series Route Switch Processor
