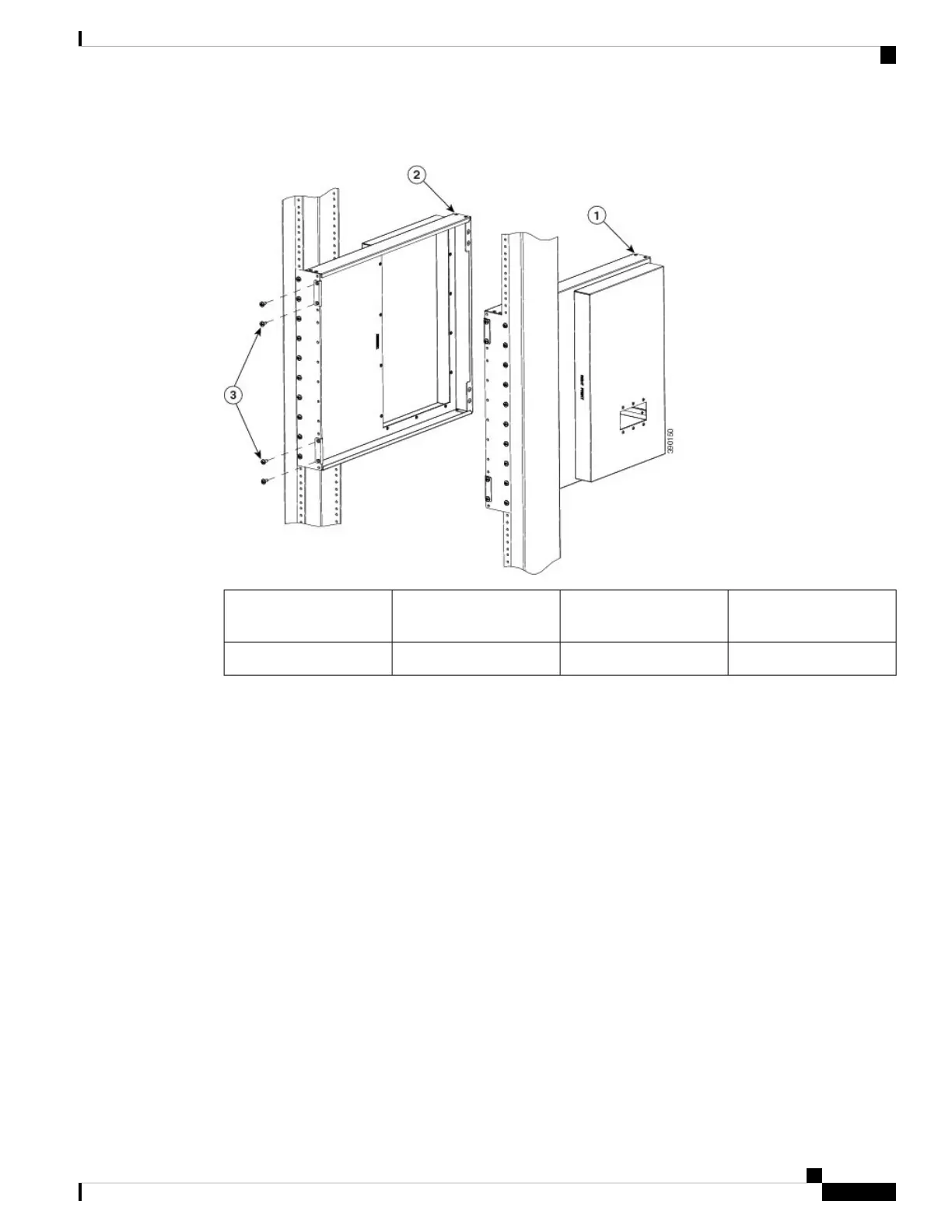

Figure 154: Installing the Air Baffles on the Cisco ASR 9904 Router Chassis
12-24 screws for attaching
the baffles (four per side)
3Right side air baffle1
Left side air baffle2
Step 3 Install the top and bottom air deflectors (Figure 155: Attaching the Air Deflectors on the Cisco ASR 9904
Router Chassis —Top View, on page 148) with the “bottom side” stamp facing down (note that the top and
bottom air deflectors both have the same part number: 800-41357-01).
Step 4 Tighten the screws to a torque of 41 in-lb.
Cisco ASR 9000 Series Aggregation Services Router Hardware Installation Guide
147
Unpacking and Installing the Chassis
Installing Optional Air Baffles on the Cisco ASR 9904 Router

Cisco ASR 9010 Specifications

General

Chassis	Modular
Rack Units	21 RU
Operating System	Cisco IOS XR
Form Factor	Rack-mountable
Number of Slots	10
Power Supply	AC or DC
Redundancy	Yes
Slots	8 line card slots, 2 route switch processor slots
Memory	16 GB DRAM
Storage	64 GB SSD (Route Processor)
Port Types	Ethernet, OTN
Redundancy Features	Route Processor, Power Supply, Fan Tray
Operating Temperature	32 to 104°F (0 to 40°C)
Humidity	5% to 90% non-condensing
Route Processor	Cisco ASR 9000 Series Route Switch Processor
