Cisco ASR 9010 Installation Guide

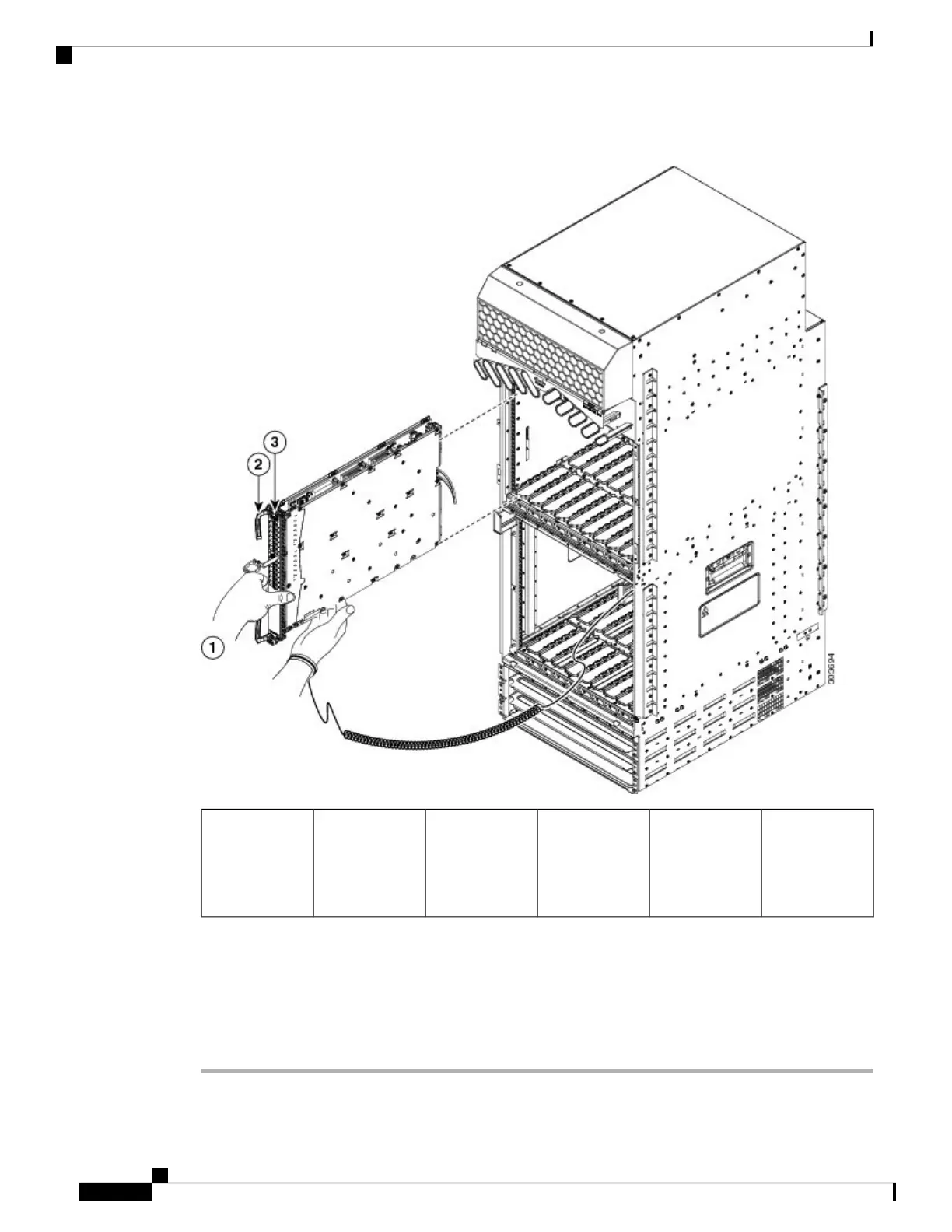

Figure 182: Installing a Line Card into the Cisco ASR 9912 Router Chassis
Tighten the
captive screws.
3Pivot the ejector
levers to seat the
card into the
backplane
connector.
2Slide the card
into the chassis.
1
Step 4 Repeat Step 1 through Step 3 for each line card.
In the Cisco ASR 9922 Router, up to ten line cards are installed in slots 0 through 9 in the top card
cage, and up to ten line cards are installed upside down in slots 10 through 19 in the bottom card
cage.
Note
Step 5 Go to the Connecting Line Card Network Interface Cables, on page 181 to connect the network interface cables.
Cisco ASR 9000 Series Aggregation Services Router Hardware Installation Guide
180
Installing Cards and Modules in the Chassis
Installing Line Cards in the Chassis

Cisco ASR 9010 Specifications

General

Chassis	Modular
Rack Units	21 RU
Operating System	Cisco IOS XR
Form Factor	Rack-mountable
Number of Slots	10
Power Supply	AC or DC
Redundancy	Yes
Slots	8 line card slots, 2 route switch processor slots
Memory	16 GB DRAM
Storage	64 GB SSD (Route Processor)
Port Types	Ethernet, OTN
Redundancy Features	Route Processor, Power Supply, Fan Tray
Operating Temperature	32 to 104°F (0 to 40°C)
Humidity	5% to 90% non-condensing
Route Processor	Cisco ASR 9000 Series Route Switch Processor
