Cisco ASR 9010 Installation Guide

• Amber (FAST)—UTI is operating in fast mode.

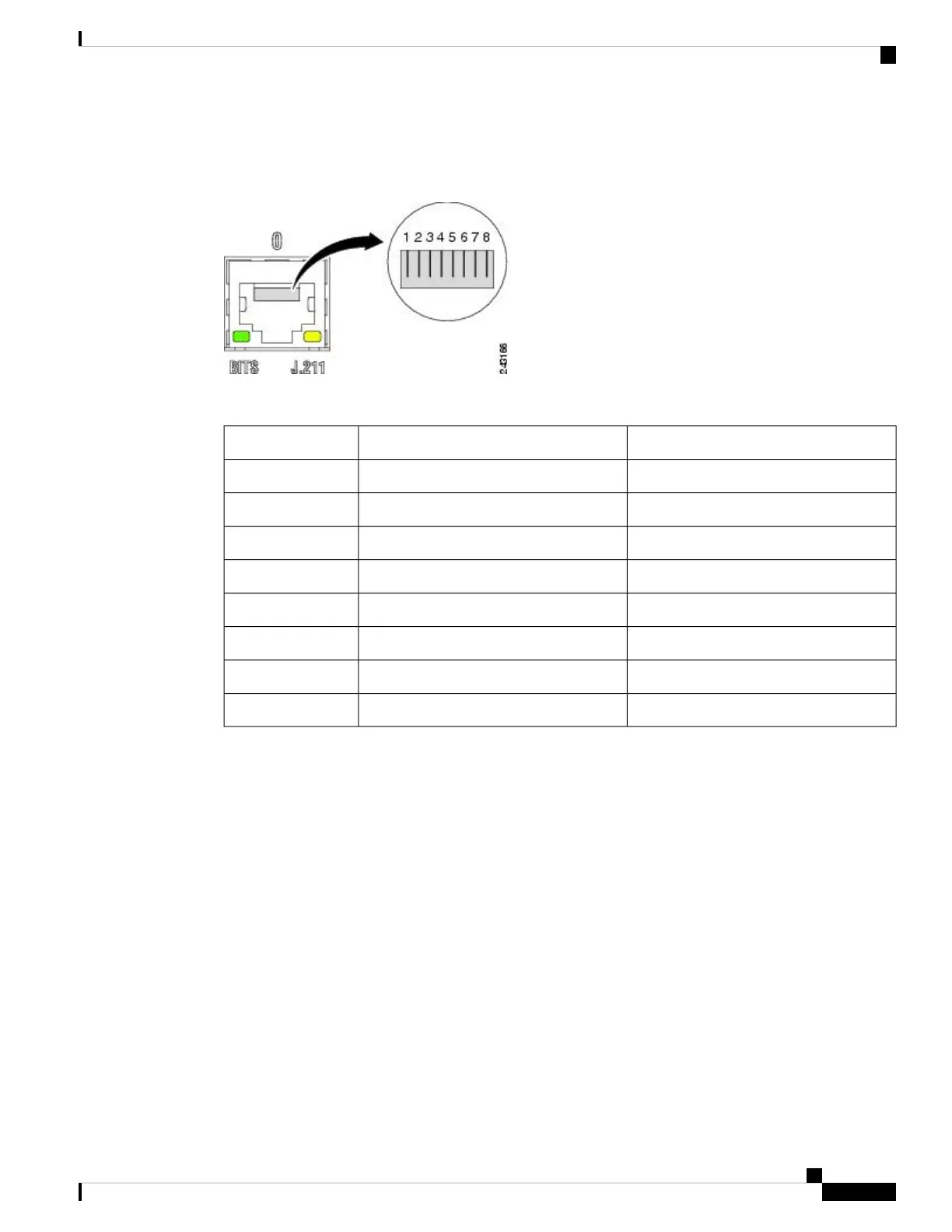

Figure 65: SYNC Port Connector
Table 9: BITS/J.211 Connector Pinout
NoteSignalPin
Bi-direction for DTI, T1/E1/64K InputDTI_P/BITS_RX_P1
Bi-direction for DTI, T1/E1/64K InputDTI_P/BITS_RX_N2
——3
T1/E1/6.321M OutputBITS_TX_P*4
T1/E1/6.321M OutputBITS_TX_N*5
——6
——7
——8
Cisco ASR 9000 Series Aggregation Services Router Hardware Installation Guide
53
Preparing for Installation
Sync Port Connection Guidelines

Cisco ASR 9010 Specifications

General

Chassis	Modular
Rack Units	21 RU
Operating System	Cisco IOS XR
Form Factor	Rack-mountable
Number of Slots	10
Power Supply	AC or DC
Redundancy	Yes
Slots	8 line card slots, 2 route switch processor slots
Memory	16 GB DRAM
Storage	64 GB SSD (Route Processor)
Port Types	Ethernet, OTN
Redundancy Features	Route Processor, Power Supply, Fan Tray
Operating Temperature	32 to 104°F (0 to 40°C)
Humidity	5% to 90% non-condensing
Route Processor	Cisco ASR 9000 Series Route Switch Processor
