Cisco ASR 9010

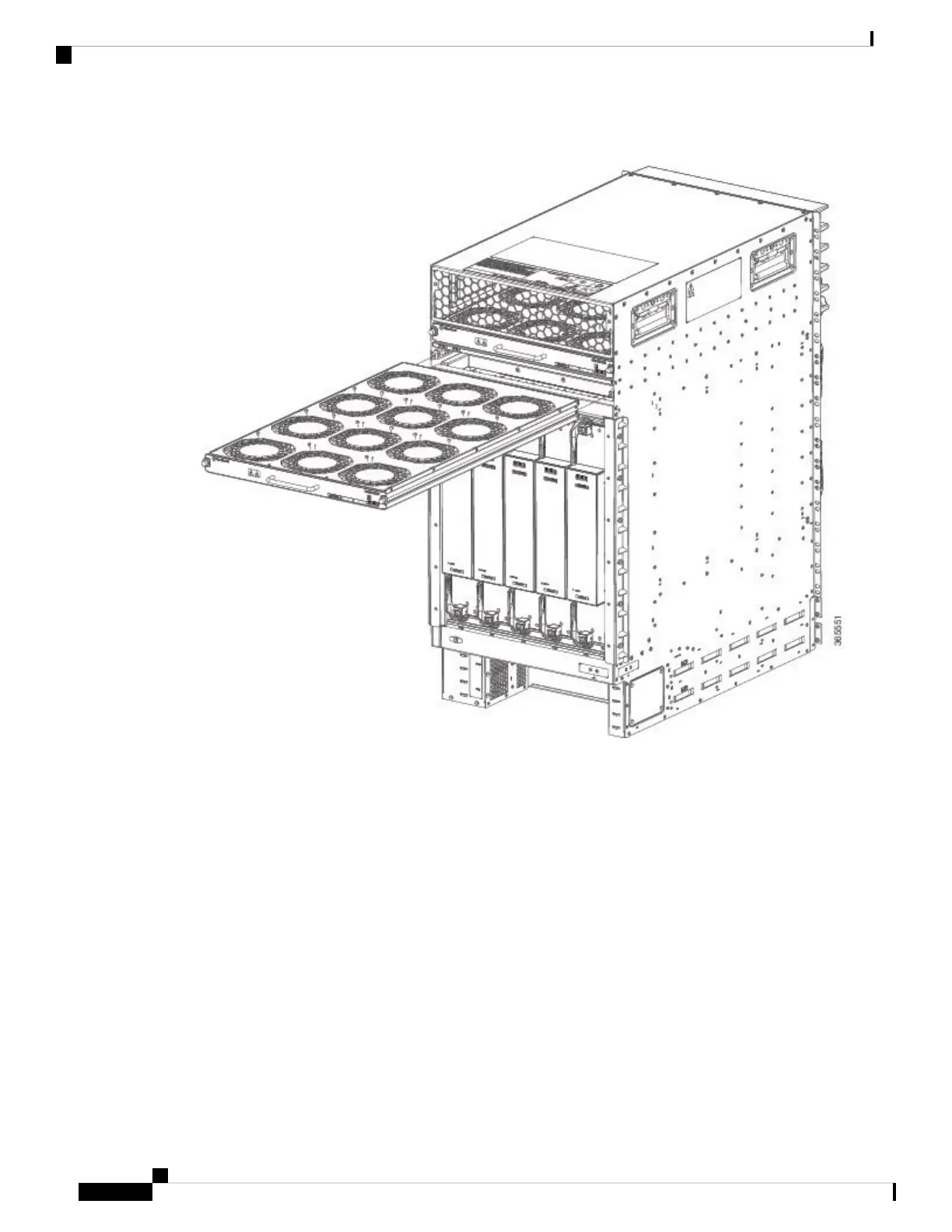

Figure 79: Removing or Installing the Fan Tray on the Cisco ASR 9910 Router Chassis
Cisco ASR 9000 Series Aggregation Services Router Hardware Installation Guide
76
Unpacking and Installing the Chassis
Removing a Fan Tray from the Cisco ASR 9010 Router, Cisco 9910 Router, Cisco ASR 9922 Router, and Cisco ASR 9912 Router
