Cisco Catalyst 3650 Series

2-1
Catalyst 3650 Switch Hardware Installation Guide
OL-29734-01
APPENDIX
2
Connector and Cable Specifications
This chapter describes the connector and cable specifications.
The following topics are included in this chapter:
• Connector Specifications, page 2-1l
• Cable and Adapter Specifications, page 2-5
Connector Specifications
• 10/100/1000 Ports, page 2-1
• 100M/1G/2.5G/5G/10G Ports, page 2-2
• 10-Gigabit Ethernet CX1 (SFP+ Copper) Connectors, page 2-2
• SFP and SFP+ Modules, page 2-3
• 10/100/1000 Ethernet Management Port, page 2-4
• Console Port, page 2-4
10/100/1000 Ports
The 10/100/1000 Ethernet ports on switches use RJ-45 connectors and Ethernet pinouts.

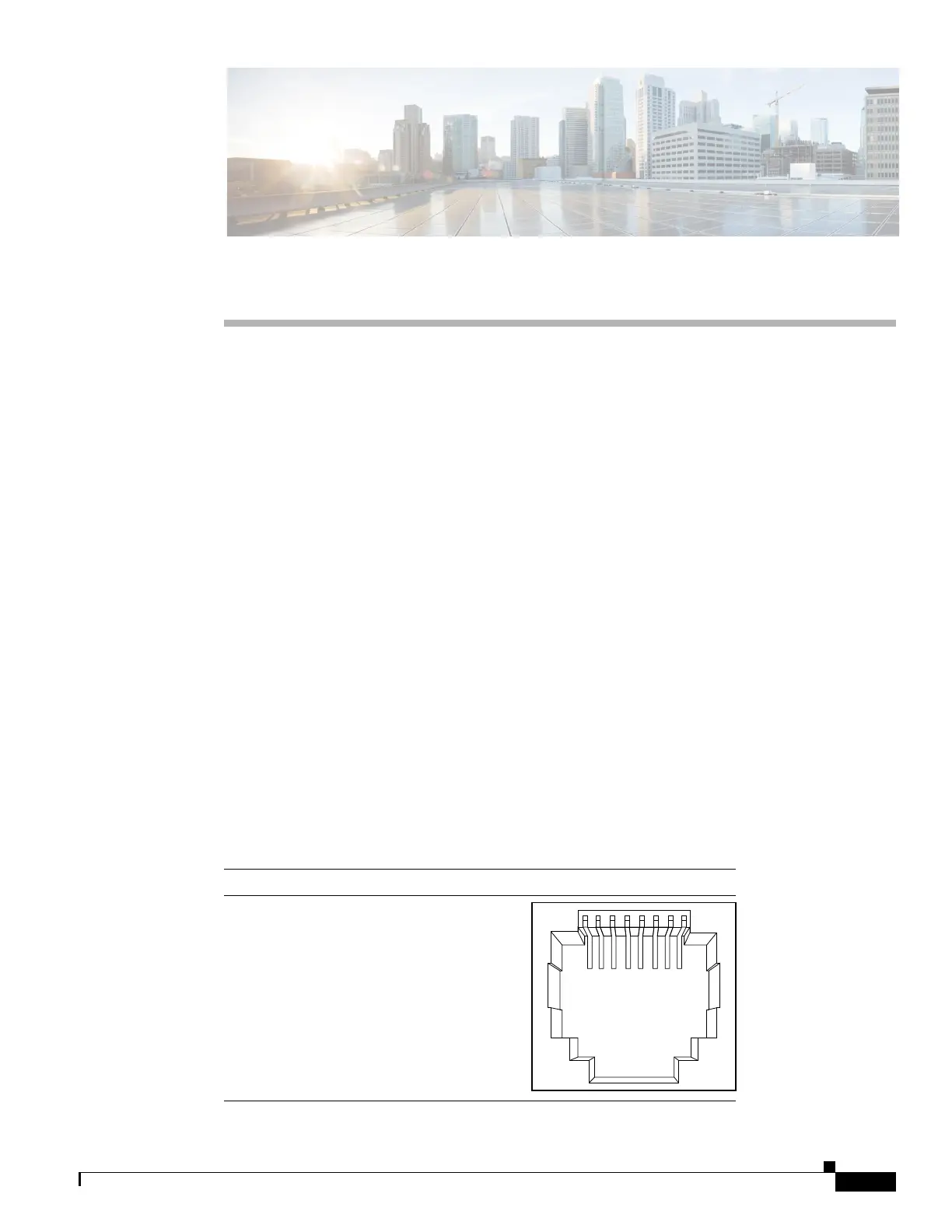

Figure 2-1 10/100/1000 Port Pinouts
60915
2 3145678Pin Label
1
2
3
4
5
6
7
8
TP0+
TP0-
TP1+
TP2+
TP2-
TP1-
TP3+
TP3-
