Chapter 1 Product Overview
Rear Panel
UID/Beacon LED
The UID and the Beacon LED can be turned on by the administrator to indicate that the switch needs
attention. It helps the administrator identify the switch. The beacon can be turned on by either pressing
the UID button on the switch front panel, or by using the CLI. There is a blue beacon on the front and
rear panel of the switch. The blue beacon on the front panel is a button labeled UID, and on the back
panel it is a LED labeled BEACON.
The following switch models have a UID LED:
• WS-C3650-8X24UQ-L/S/E
• WS-C3650-8X24PD-L/S/E
• WS-C3650-12X48UZ-L/S/E
• WS-C3650-12X48UR-L/S/E
• WS-C3650-12X48UQ-L/S/E
• WS-C3650-12X48FD-L/S/E
Rear Panel
The switch rear panel includes StackWise connectors, ports, fan modules, and power supply modules.
See Figure 1-13.

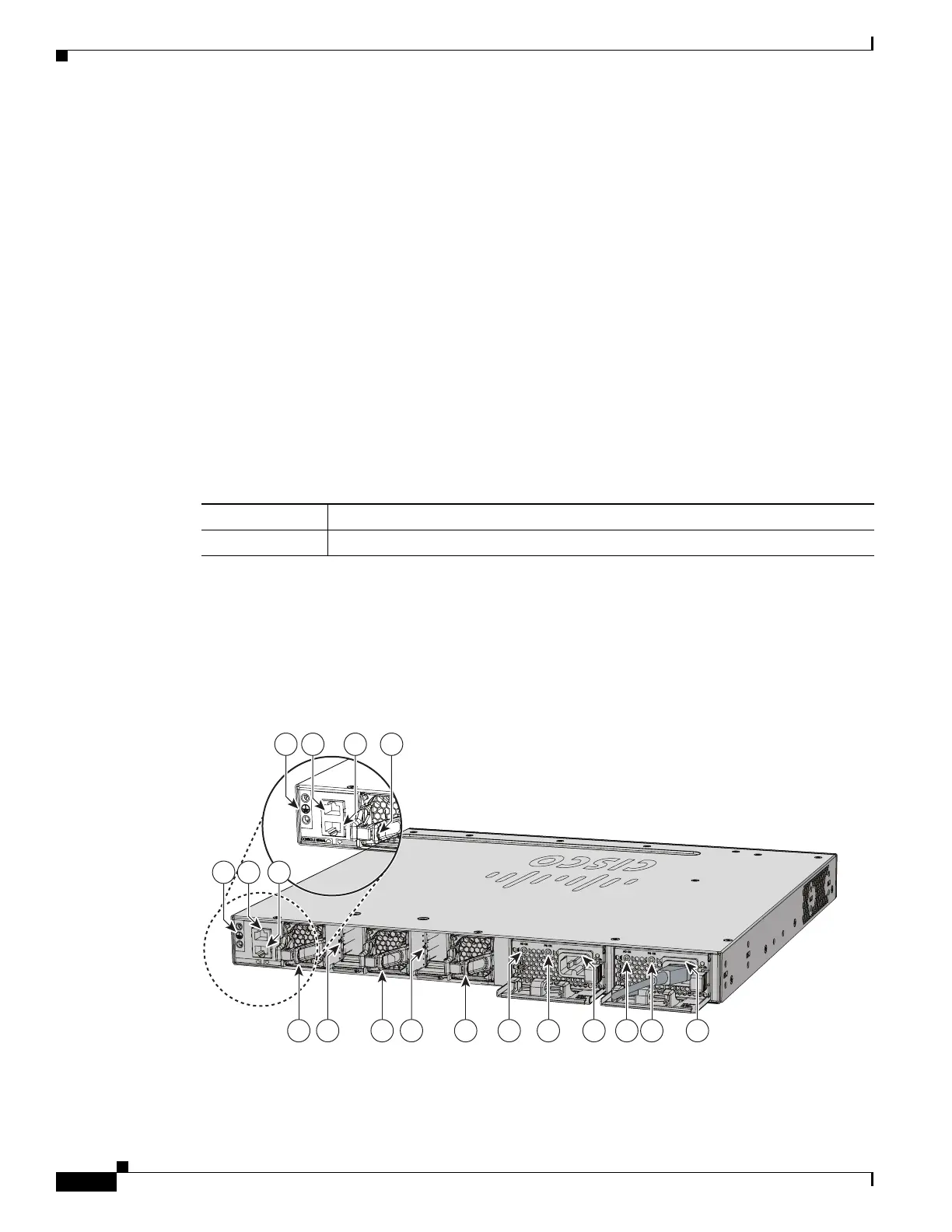

Figure 1-13 Catalyst 3650 Switch Rear Panel
Table 1-11 UID/Beacon LED Indicator
Color Description
Solid blue The operator has indicated that the system needs attention.
CONSOLE
MGMT
M
GMT
347678
1 2
744
85 5 6
76
8
P
W
R
-
C2-25
0
W
A
C
P
W
R
-
C2-64
0
W
A
C
3 4
31 2
4

Cisco Catalyst 3650 Series Specifications

General

RAM	4 GB
Flash Memory	4 GB
Ports	24 or 48 10/100/1000 Ethernet ports
Uplinks	4 x 1G SFP or 4 x 10G SFP+ (depending on model)
Stacking	Up to 9 switches with StackWise-160
Layer Support	Layer 2, Layer 3
Software	Cisco IOS Software
Power Supply	Internal power supply; optional redundant power supply available
Storage Temperature	-40°F to 158°F (-40°C to 70°C)
