Chapter 1 Product Overview
Front Panel

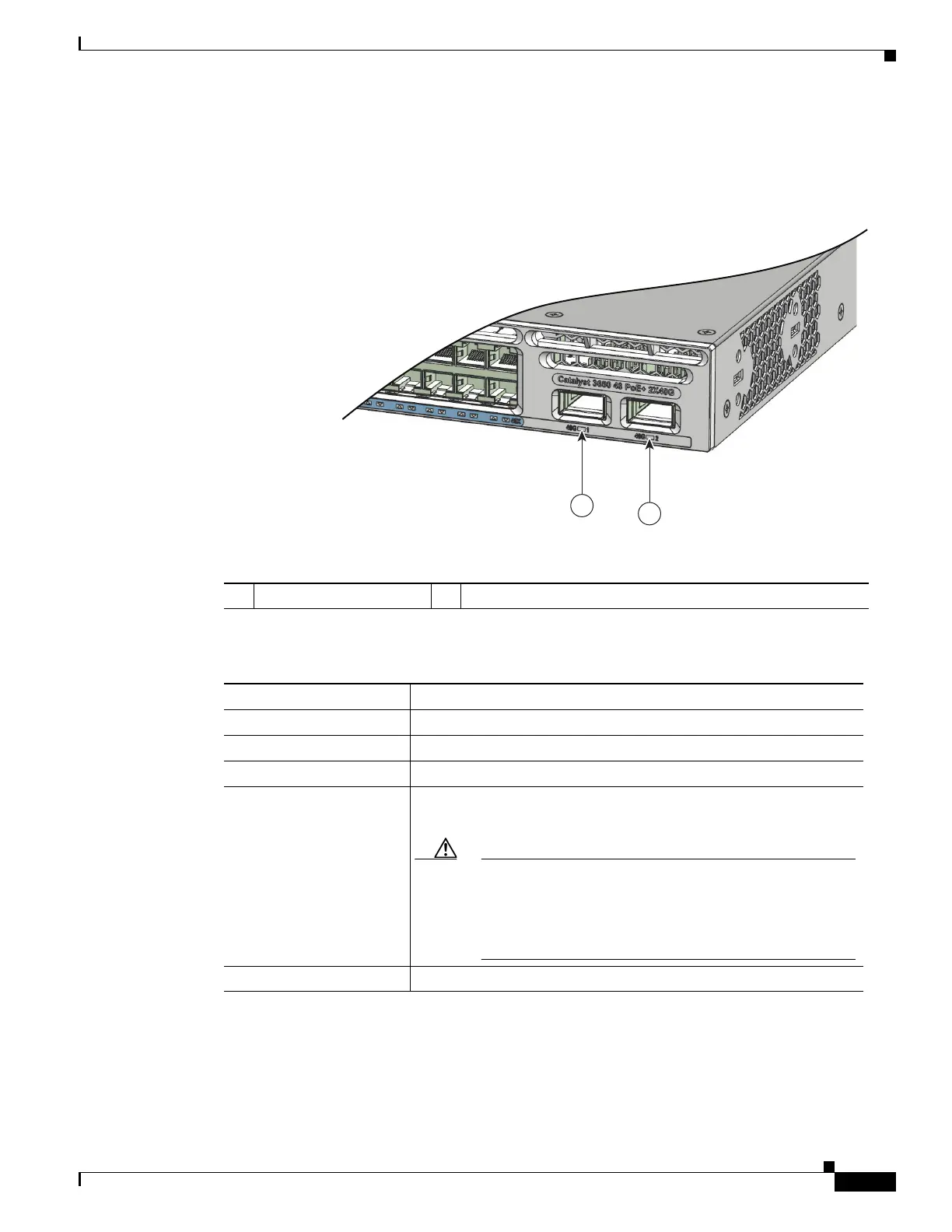

Figure 1-12 QSFP+ ports for Catalyst 3650-12X48UZ-X Switches
1 QSFP+ port 1 2 QSFP+ port 2
354602
2
1
Table 1-10 Uplink Port LEDs or Catalyst 3650-12X48UZ-X Switches
Color Uplink Port Link Status
Off Link is off.
Green Link is on, no activity.
Blinking green Activity on a link, no faults.
Blinking amber Link is off due to a fault or because it has exceeded a limit set in the
switch software.
Caution Link faults occur when non-compliant cabling is
connected to a QSFP+ port. Use only standards-compliant
cabling to connect to Cisco QSFP+ ports. You must
remove from the ports any cable or device that causes a
link fault.
Amber Link for the QSFP+ port has been disabled.

Cisco Catalyst 3650 Series Specifications

General

RAM	4 GB
Flash Memory	4 GB
Ports	24 or 48 10/100/1000 Ethernet ports
Uplinks	4 x 1G SFP or 4 x 10G SFP+ (depending on model)
Stacking	Up to 9 switches with StackWise-160
Layer Support	Layer 2, Layer 3
Software	Cisco IOS Software
Power Supply	Internal power supply; optional redundant power supply available
Storage Temperature	-40°F to 158°F (-40°C to 70°C)
