Cisco Catalyst 3650 Series Hardware Installation Guide

2-2
Catalyst 3650 Switch Hardware Installation Guide
OL-29734-01
Appendix 2 Connector and Cable Specifications
Connector Specifications
100M/1G/2.5G/5G/10G Ports
The 100M/1G/2.5G/5G/10G multi-Gigabit Ethernet ports on switches use RJ-45 connectors and
Ethernet pinouts.

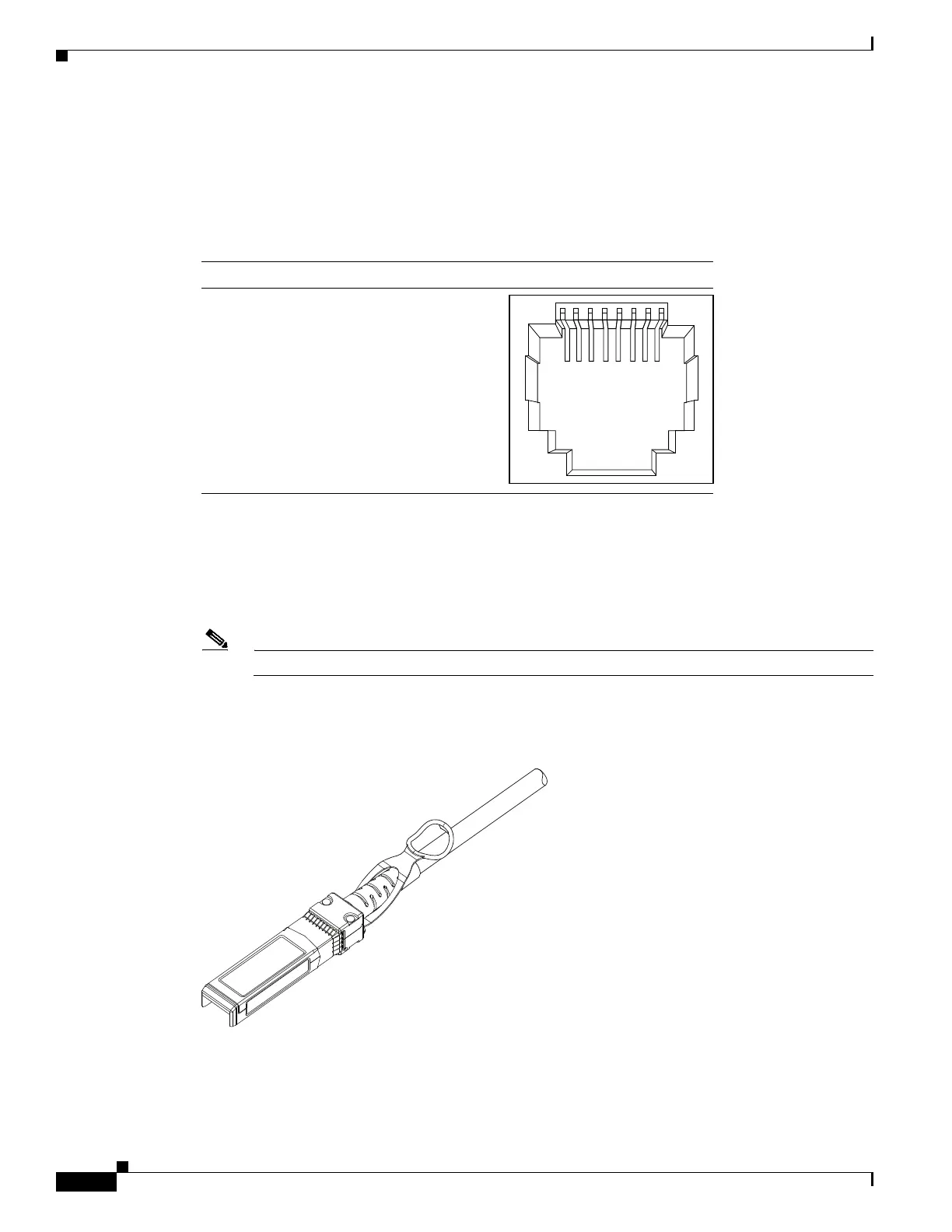

Figure 2-2 100M/1G/2.5G/5G/10G Port Pinouts
10-Gigabit Ethernet CX1 (SFP+ Copper) Connectors
The 10-Gigabit Ethernet electrical modules use CX1 copper connectors similar to the one shown in
Figure 2-3.
Note When ordering or using CX1 cables, ensure that the version identifier is 2 or higher.
The 10-Gigabit Ethernet optical modules use the connectors shown in Figure 2-4 and Figure 2-5.
Figure 2-3 10-Gigabit Ethernet CX1 Copper Connector
60915
2 3145678Pin Label
1
2
3
4
5
6
7
8
TP0+
TP0-
TP1+
TP2+
TP2-
TP1-
TP3+
TP3-
278541

Cisco Catalyst 3650 Series Specifications

General

RAM	4 GB
Flash Memory	4 GB
Ports	24 or 48 10/100/1000 Ethernet ports
Uplinks	4 x 1G SFP or 4 x 10G SFP+ (depending on model)
Stacking	Up to 9 switches with StackWise-160
Layer Support	Layer 2, Layer 3
Software	Cisco IOS Software
Power Supply	Internal power supply; optional redundant power supply available
Storage Temperature	-40°F to 158°F (-40°C to 70°C)
