Chapter 1 Product Overview
Front Panel

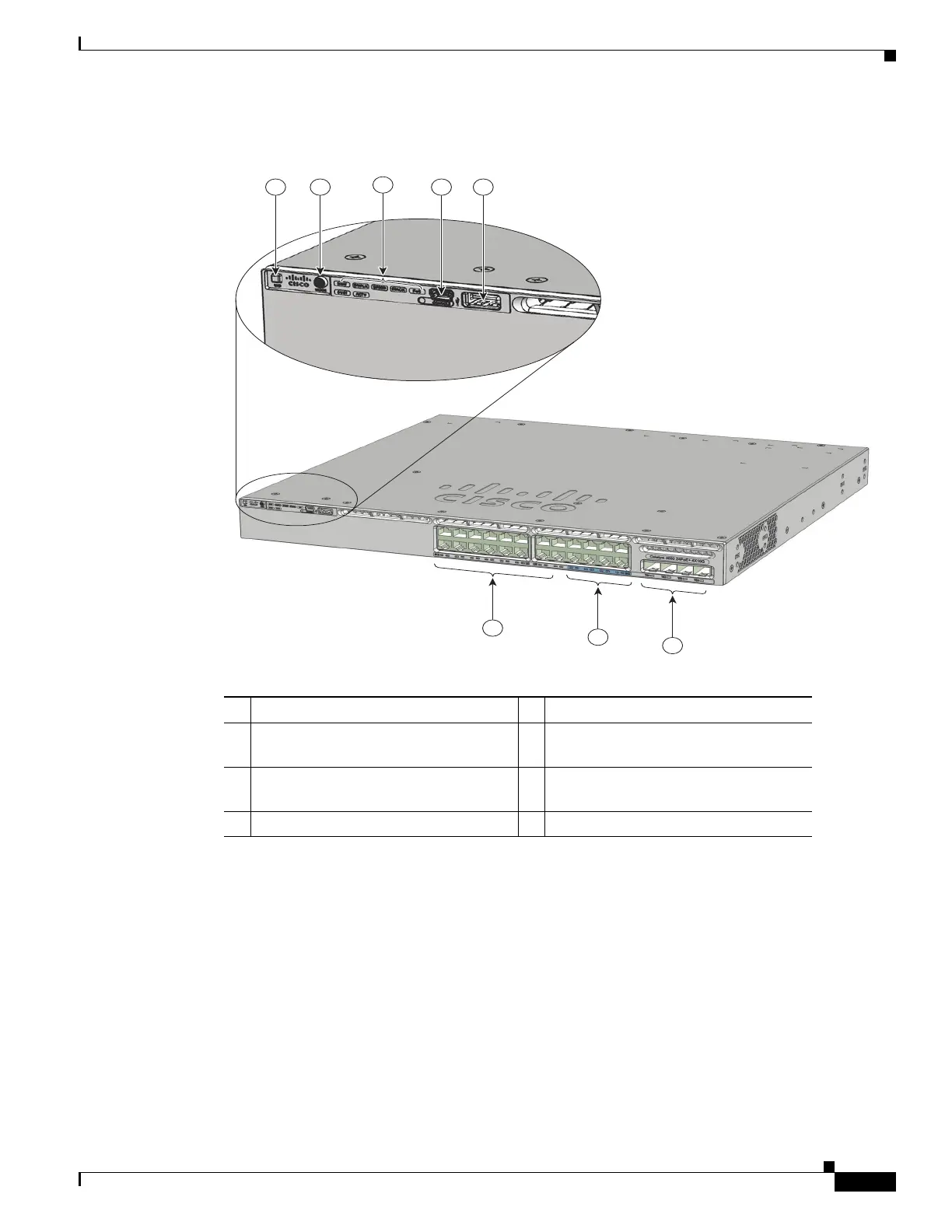

Figure 1-6 Catalyst WS-3650-8X24UQ-L/S/E Switches Front Panel
10/100/1000 Ethernet Ports
The 10/100/1000 Ethernet ports use RJ-45 connectors with Ethernet pinouts. The maximum cable length
is 328 feet (100 meters). The 100BASE-TX and 1000BASE-T traffic requires Category 5, Category 5e,
or Category 6 unshielded twisted pair (UTP) cable. The 10BASE-T traffic can use Category 3 or
Category 4 UTP cable.
8
7
6
1 2 4
3
5
354618
1 UID LED/Button 5 USB Type A storage port
2 Mode button 6 10/100/1000 Cisco UPOE downlink
ports
3 Status LEDs 7 100M/1G/2.5G/5G/10G Cisco UPOE
downlink ports
4 USB mini-Type B (console) port 8 Uplink ports

Cisco Catalyst 3650 Series Specifications

General

RAM	4 GB
Flash Memory	4 GB
Ports	24 or 48 10/100/1000 Ethernet ports
Uplinks	4 x 1G SFP or 4 x 10G SFP+ (depending on model)
Stacking	Up to 9 switches with StackWise-160
Layer Support	Layer 2, Layer 3
Software	Cisco IOS Software
Power Supply	Internal power supply; optional redundant power supply available
Storage Temperature	-40°F to 158°F (-40°C to 70°C)
