Catalyst 3650 Switch Hardware Installation Guide
OL-29734-01
Chapter 1 Product Overview
Front Panel

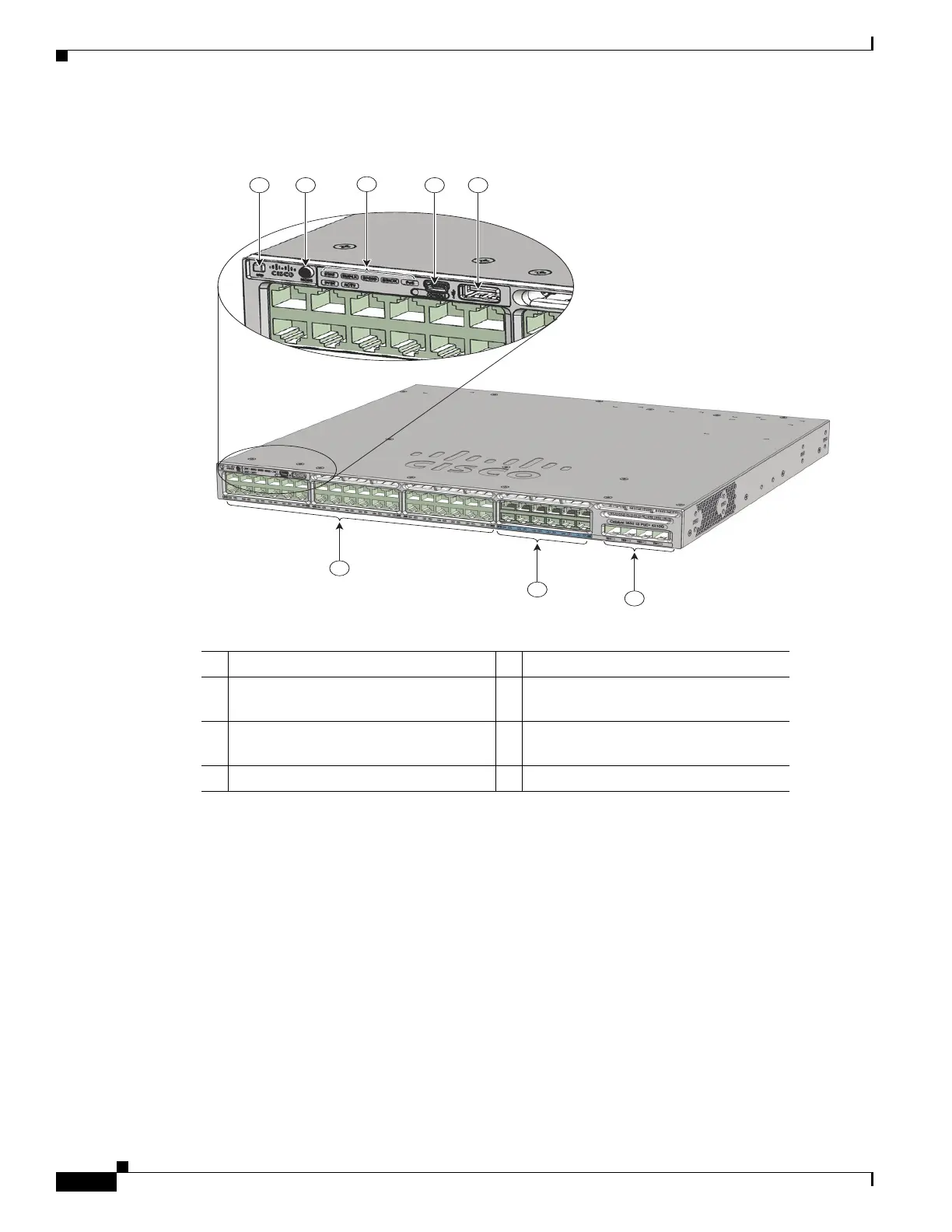

Figure 1-5 Catalyst WS-3650-12X48UQ-L/S/E Switches Switches Front Panel
6
8
7
1 2 4
3
5
354617
1 UID LED/Button 5 USB Type A storage port
2 Mode button 6 10/100/1000 Cisco UPOE downlink
ports
3 Status LEDs 7 100M/1G/2.5G/5G/10G Cisco UPOE
downlink ports
4 USB mini-Type B (console) port 8 Uplink ports
To Next Page
