Chapter 1 Product Overview
Rear Panel

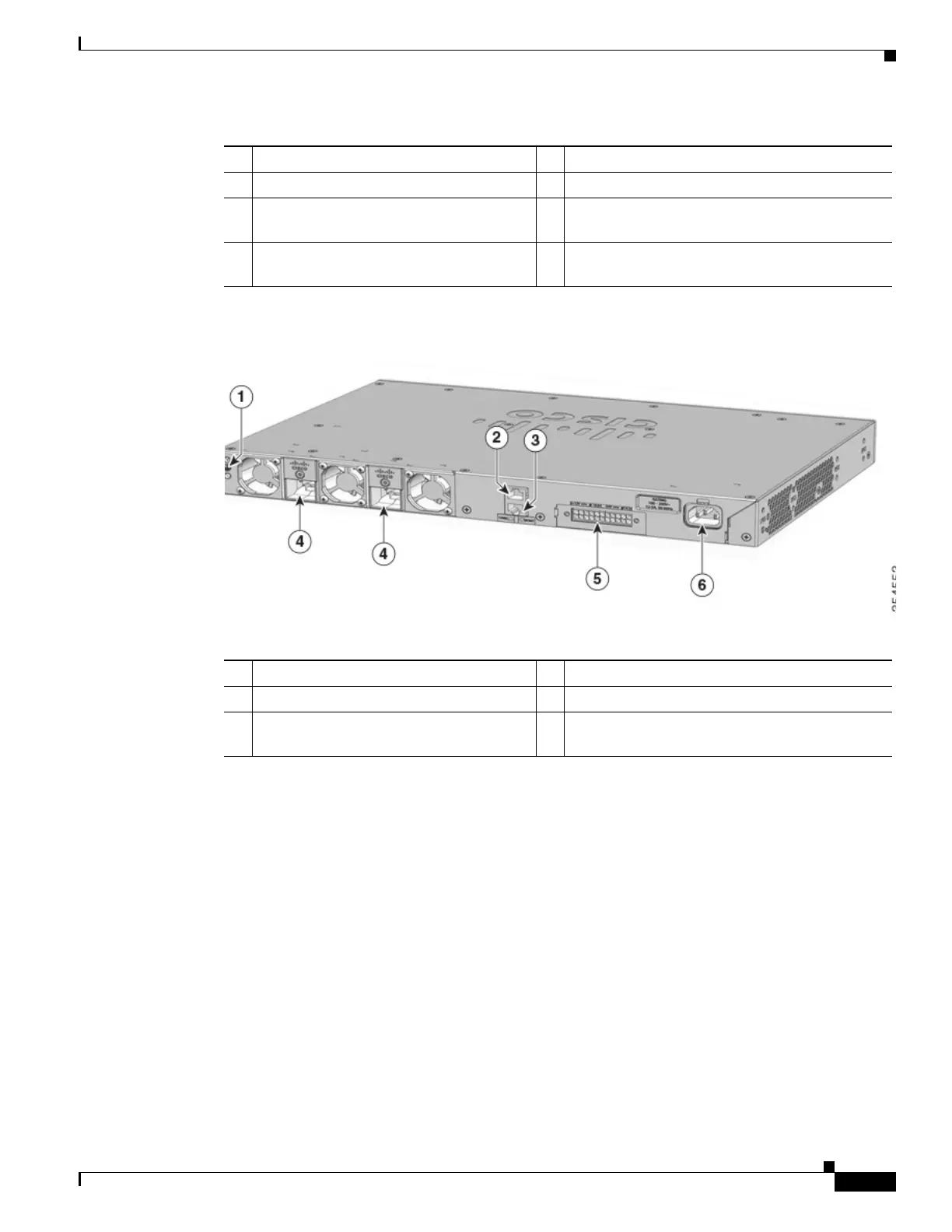

Figure 1-14 Catalyst 3650-24PDM and Catalyst 3650-48FQM Switches’ Rear Panel
1 Ground connector 5 StackWise port connector
2 CONSOLE (RJ-45 console port) 6 AC OK (input) status LED
3 MGMT (RJ-45 10/100/1000 management
port)
7 PS OK (output) status LED
4 Fan module 8 Power supply modules (AC power supply
modules shown)
1 Ground connector 4 Data stack ports
2 CONSOLE (RJ-45 console port) 5 Redundant Power Supply
3 MGMT (RJ-45 10/100/1000 management
port)
6 Power Supply

Cisco Catalyst 3650 Series Specifications

General

RAM	4 GB
Flash Memory	4 GB
Ports	24 or 48 10/100/1000 Ethernet ports
Uplinks	4 x 1G SFP or 4 x 10G SFP+ (depending on model)
Stacking	Up to 9 switches with StackWise-160
Layer Support	Layer 2, Layer 3
Software	Cisco IOS Software
Power Supply	Internal power supply; optional redundant power supply available
Storage Temperature	-40°F to 158°F (-40°C to 70°C)
