Chapter 2 Switch Installation
Installing the Switch

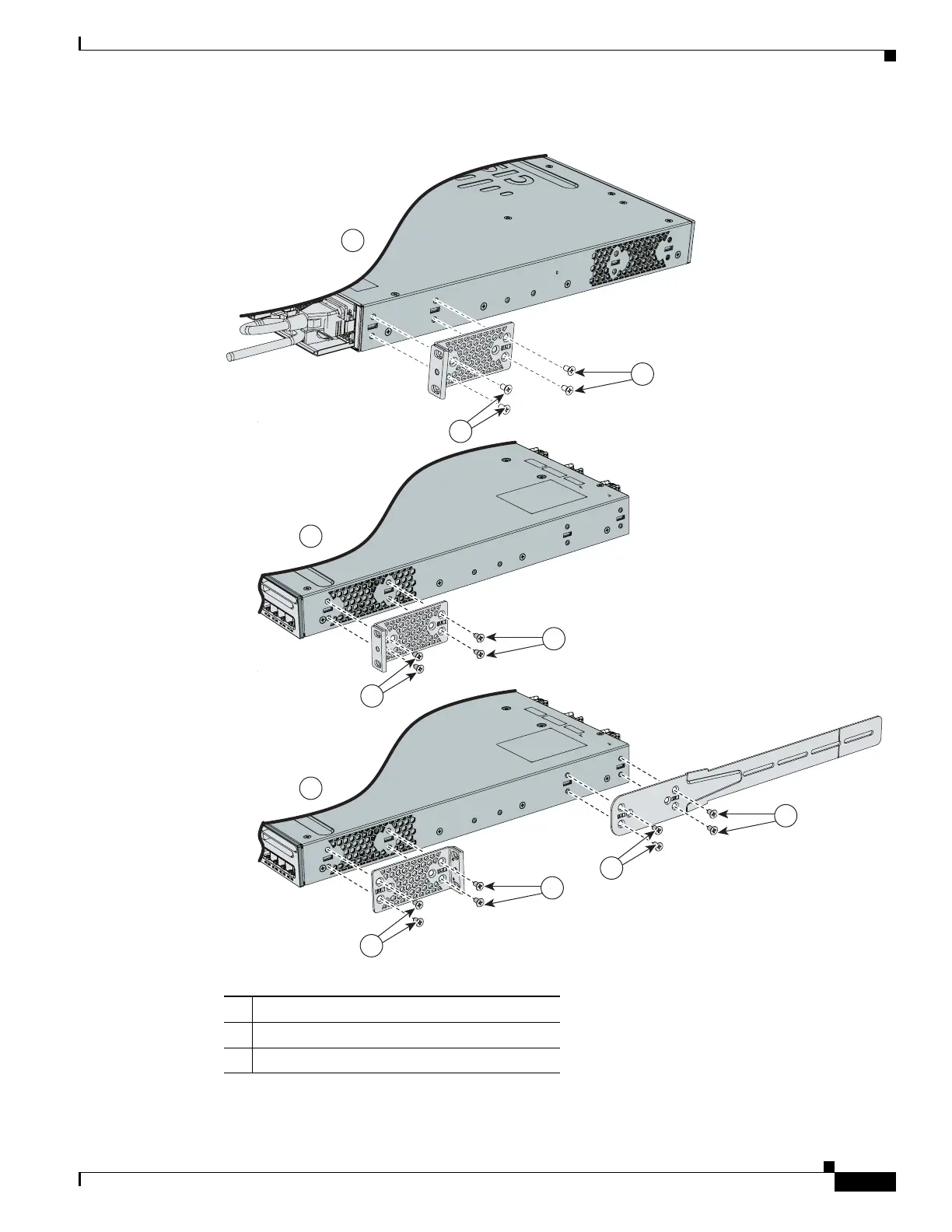

Figure 2-8 Attaching Brackets for 19-inch Racks
1 Rear-mounting position
2 Number-8 Phillips flat-head screws
3 Front-mounting position
