D-5
Catalyst 4500 E-Series Switches Installation Guide
OL-13972-01
Appendix D Module Overview and Specifications
Switching Modules
WS-X4606-X2-E
The WS-X4606-X2-E 6-Port 10GbE (X2) switching module (see Figure D-2) has the following
specifications:

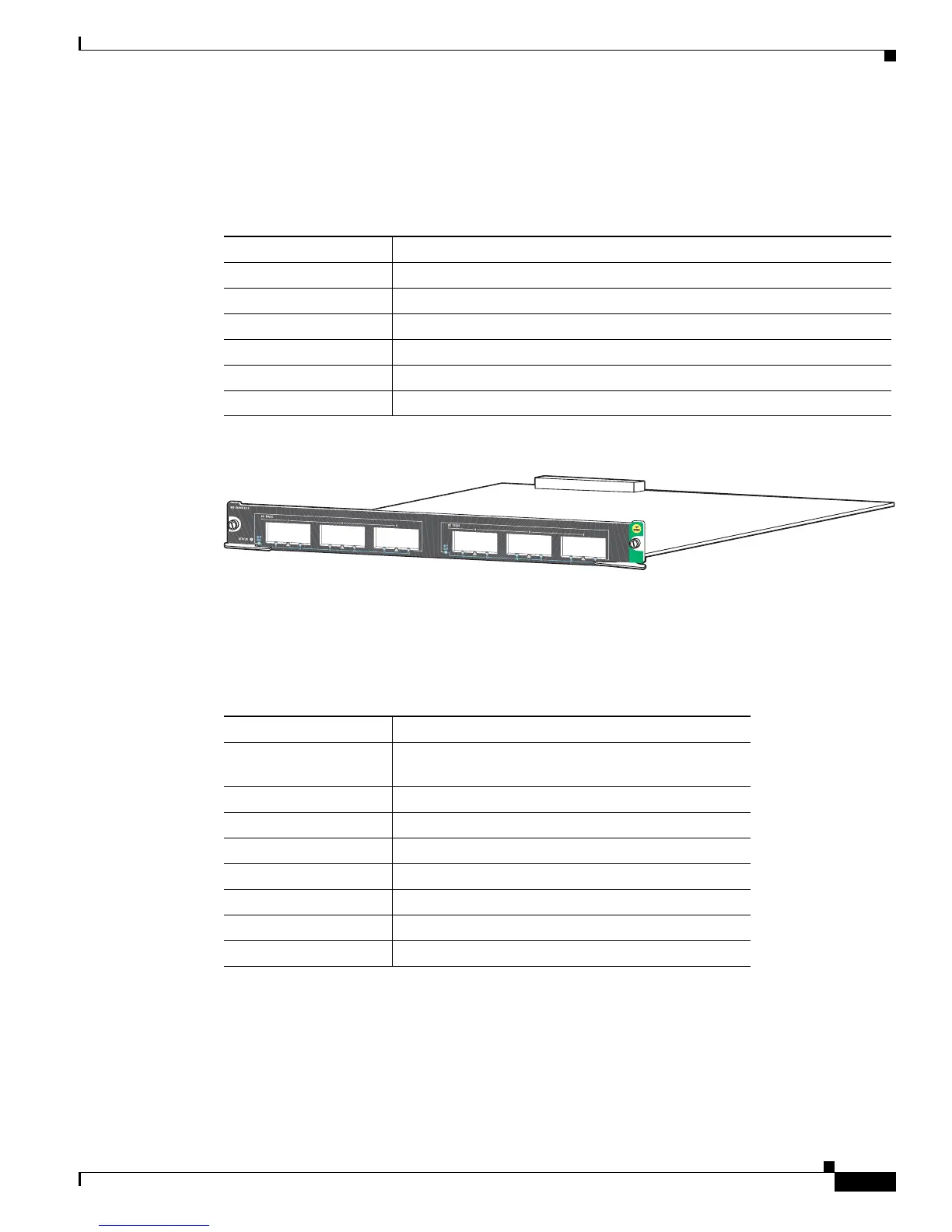

Figure D-2 WS-X4606-GB 6-Port Gigabit Ethernet Switching Module
WS-X4648-RJ45V-E
The WS-X4648-RJ45V-E 48-Port PoE 802.3af 10/100/1000(RJ45) switching module (see Figure D-3)
has the following specifications:
Specification Description
Module type 10Gig X2 or TwinGig fiber Ethernet switching module
Port duplex mode Full duplex mode
Port speed 10 Gbps or 2 Gbps when using a Cisco TwinGig converter and 2 SFPs
Number of ports 6
Connector type SC type
Cable type MMF or SMF
211397
Specification Description
Module type 10/100/1000BASE-T Fast Ethernet switching module
with IEEE802.3af PoE
Port duplex mode Half or full duplex mode
Jumbo frame support No
Port speed 10, 100, or 1000 Mbps
Number of ports 48
Connector type RJ-45
Cable type Category 5
Power over Ethernet 15.4 W per powered device on all 48 ports
