Catalyst 4500 E-Series Switches Installation Guide
OL-13972-01
Chapter 4 Removing and Replacing FRUs
Removing and Replacing the Power Supply

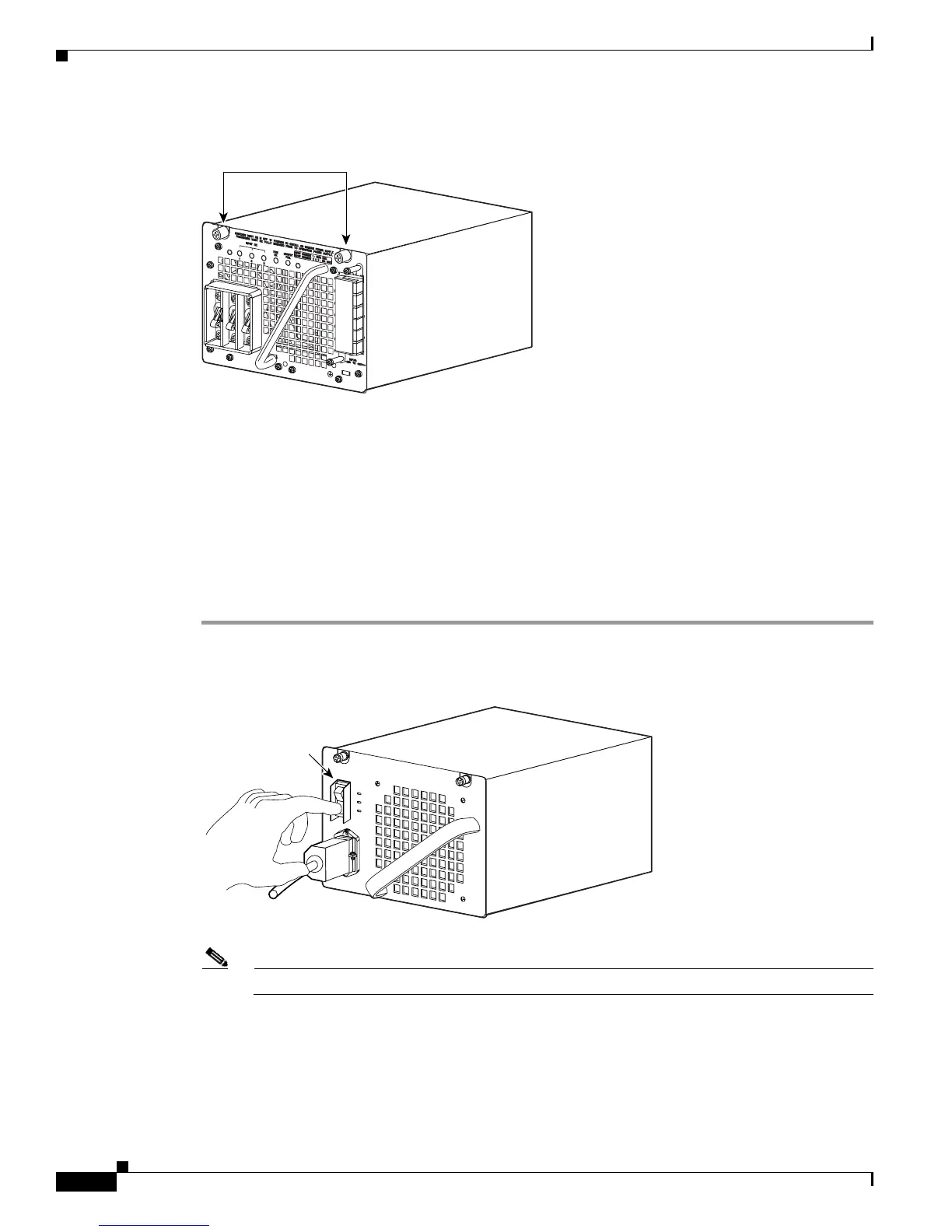

Figure 4-4 1400 W DC Triple-input Power Supply
Required Tools
You will need a flathead or Phillips screwdriver to perform these procedures.
Removing an AC-Input Power Supply
Follow these steps to remove the AC-input power supply:
Step 1 Press the power switch on the AC-input power supply down to the off (O) position (see Figure 4-5).
Figure 4-5 Powering Off the Power Switch
Note There are two on/off switches on a 4200 W AC power supply, one for each input.
Step 2 Loosen the side-clamp screw on the right side of the power cord plug (see Figure 4-6).
Captive screws
120562
Power switch
79138

Cisco Catalyst 4500e Series Specifications

General

Series	Catalyst 4500E Series
Stackable	No
Chassis Options	3-slot, 6-slot, 7-slot, 10-slot
Power Supply Options	AC, DC
Redundancy	Power supply redundancy, supervisor engine redundancy (1+1)
Layer Support	Layer 2
Virtualization	Yes (Virtual Switching System - VSS)
Form Factor	Modular
Ports	Gigabit Ethernet, 10 Gigabit Ethernet, 40 Gigabit Ethernet, and 100 Gigabit Ethernet options depending on the line cards
Jumbo Frame Support	Yes
Features	Flexible NetFlow, TrustSec
Maximum Port Density	Up to 384 ports per chassis
Operating System	Cisco IOS XE
Management	CLI, SNMP, Cisco Prime Infrastructure, Cisco DNA Center
Security Features	802.1X
VLAN Support	Up to 4096 VLANs
QoS Support	Yes
Supervisor Engine Options	Sup8-E
