Chapter 1 Product Overview
Switch Features
A more detailed discussion of power redundancy is in the Environmental Monitoring and Power
Management chapter of the software configuration guide. Refer to the appropriate guide for your
software release.
Catalyst 4503-E Switch Features
The Catalyst 4503-E switch (see Figure 1-1) is a three-slot switch designed for high-performance
high-density wiring closet applications.

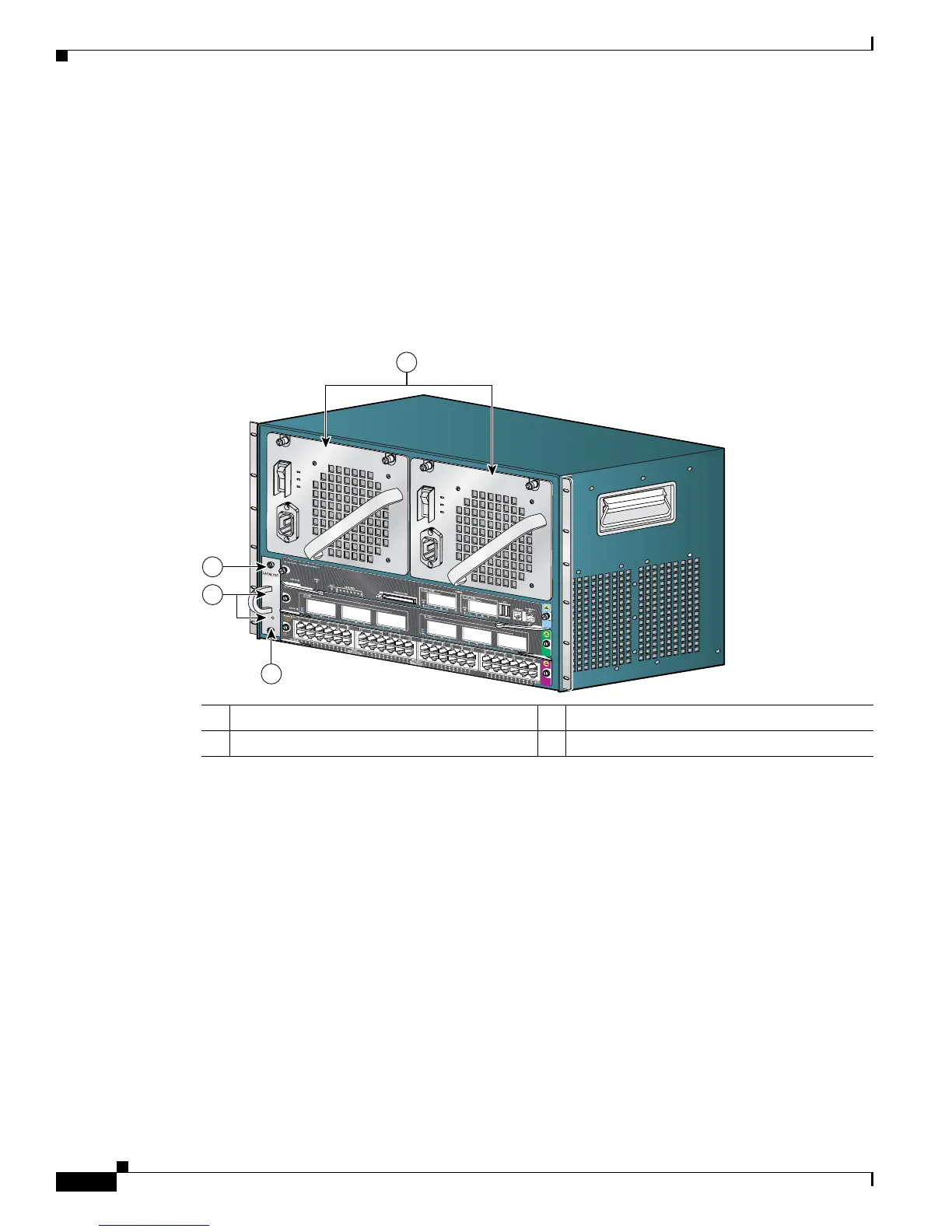

Figure 1-1 Catalyst 4503-E Switch (Front View)
The Catalyst 4503-E switch supports the Supervisor Engine II+, Supervisor Engine II+TS, Supervisor
Engine II+10GE, Supervisor Engine IV, Supervisor Engine V, Supervisor Engine V-10GE, and
Supervisor Engine 6-E. The supervisor engine has a nonblocking, full-duplex, switching fabric that
provides connections between the supervisor engine and the switching modules. Some supervisor
engines use SFP modules for Gigabit Ethernet connections, or X2 modules for 10-Gigabit Ethernet
connections. Refer to the installation note for your supervisor engine for more details on these modules.
Slot 1 is reserved for the supervisor engine only, which provides switching, local and remote
management, and switch-status monitoring. Slots
2 and 3 are available for switching modules. The
chassis will support up to 24 Gbps per slot for slots 2 and 3, for a maximum of 116 ports with a
Supervisor Engine II+TS, or 96 ports and 2 uplinks for other supervisors.
1 Fan assembly 3 Supervisor engine (Slot 1)
2 Switching modules (Slots 2 and 3) 4 Power supplies
231362
4503
1
2
3
4

Cisco Catalyst 4500e Series Specifications

General

Series	Catalyst 4500E Series
Stackable	No
Chassis Options	3-slot, 6-slot, 7-slot, 10-slot
Power Supply Options	AC, DC
Redundancy	Power supply redundancy, supervisor engine redundancy (1+1)
Layer Support	Layer 2
Virtualization	Yes (Virtual Switching System - VSS)
Form Factor	Modular
Ports	Gigabit Ethernet, 10 Gigabit Ethernet, 40 Gigabit Ethernet, and 100 Gigabit Ethernet options depending on the line cards
Jumbo Frame Support	Yes
Features	Flexible NetFlow, TrustSec
Maximum Port Density	Up to 384 ports per chassis
Operating System	Cisco IOS XE
Management	CLI, SNMP, Cisco Prime Infrastructure, Cisco DNA Center
Security Features	802.1X
VLAN Support	Up to 4096 VLANs
QoS Support	Yes
Supervisor Engine Options	Sup8-E
