Catalyst 4500 E-Series Switches Installation Guide
OL-13972-01
Chapter 1 Product Overview
Switch Features
Catalyst 4507R-E Switch Features
The Catalyst 4507R-E switch (see Figure 1-3) is a seven-slot switch designed for high-performance
high-density wiring closet applications.

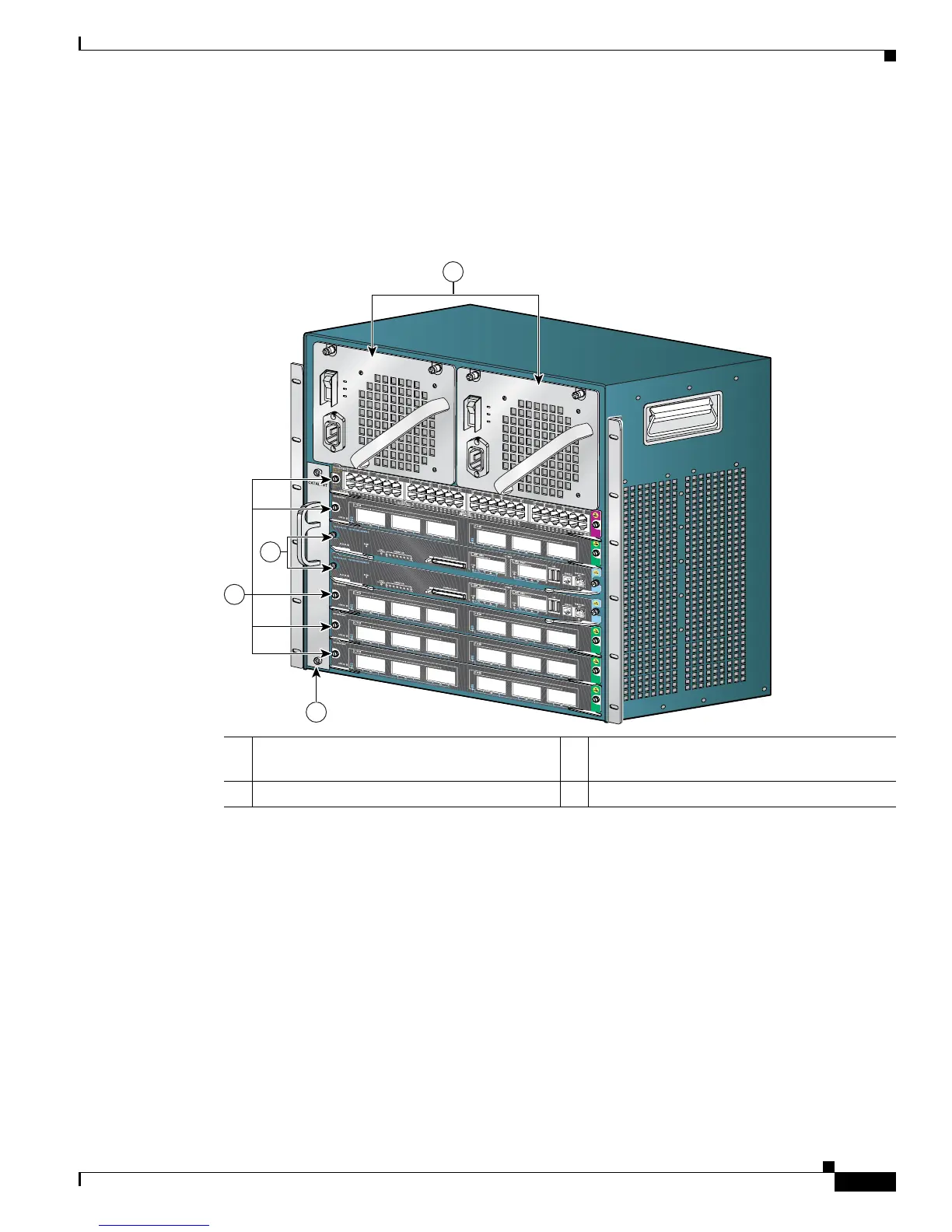

Figure 1-3 Catalyst 4507R-E Switch (Front View)
The Catalyst 4507R-E switch supports the Supervisor Engine II+, Supervisor Engine IV, Supervisor
Engine V, Supervisor Engine V-10GE, and Supervisor Engine 6-E. The supervisor engine has two
Gigabit Ethernet ports and a nonblocking, full-duplex, switching fabric that provides connections
between the supervisor engine and the switching modules. Some supervisor engines use SFP modules
for Gigabit Ethernet connections or X2 modules for 10-Gigabit Ethernet connections. Refer to the
installation note for your supervisor engine for more details on these modules.
Slot 3 is reserved for the supervisor engine only, which provides switching, local and remote
management, and switch-status monitoring. Slot 4 is reserved for a redundant supervisor engine only.
Slots
1, 2, 5, 6, and 7 are available for switching modules and provide 24 Gbps per slot for a maximum
of 240 ports and 4 uplinks.
1 Fan Tray 3 Supervisor engines (primary in slot 3,
secondary in slot 4)
2 Switching modules (slots 1, 2, 5, 6, 7) 4 Power supplies
231952
4
5
0
6
2
3
4
1

Cisco Catalyst 4500e Series Specifications

General

Series	Catalyst 4500E Series
Stackable	No
Chassis Options	3-slot, 6-slot, 7-slot, 10-slot
Power Supply Options	AC, DC
Redundancy	Power supply redundancy, supervisor engine redundancy (1+1)
Layer Support	Layer 2
Virtualization	Yes (Virtual Switching System - VSS)
Form Factor	Modular
Ports	Gigabit Ethernet, 10 Gigabit Ethernet, 40 Gigabit Ethernet, and 100 Gigabit Ethernet options depending on the line cards
Jumbo Frame Support	Yes
Features	Flexible NetFlow, TrustSec
Maximum Port Density	Up to 384 ports per chassis
Operating System	Cisco IOS XE
Management	CLI, SNMP, Cisco Prime Infrastructure, Cisco DNA Center
Security Features	802.1X
VLAN Support	Up to 4096 VLANs
QoS Support	Yes
Supervisor Engine Options	Sup8-E
