Cisco Catalyst 4500e Series User Manual

1-19
Catalyst 4500 E-Series Switches Installation Guide
OL-13972-01
Chapter 1 Product Overview
Supervisor Engines

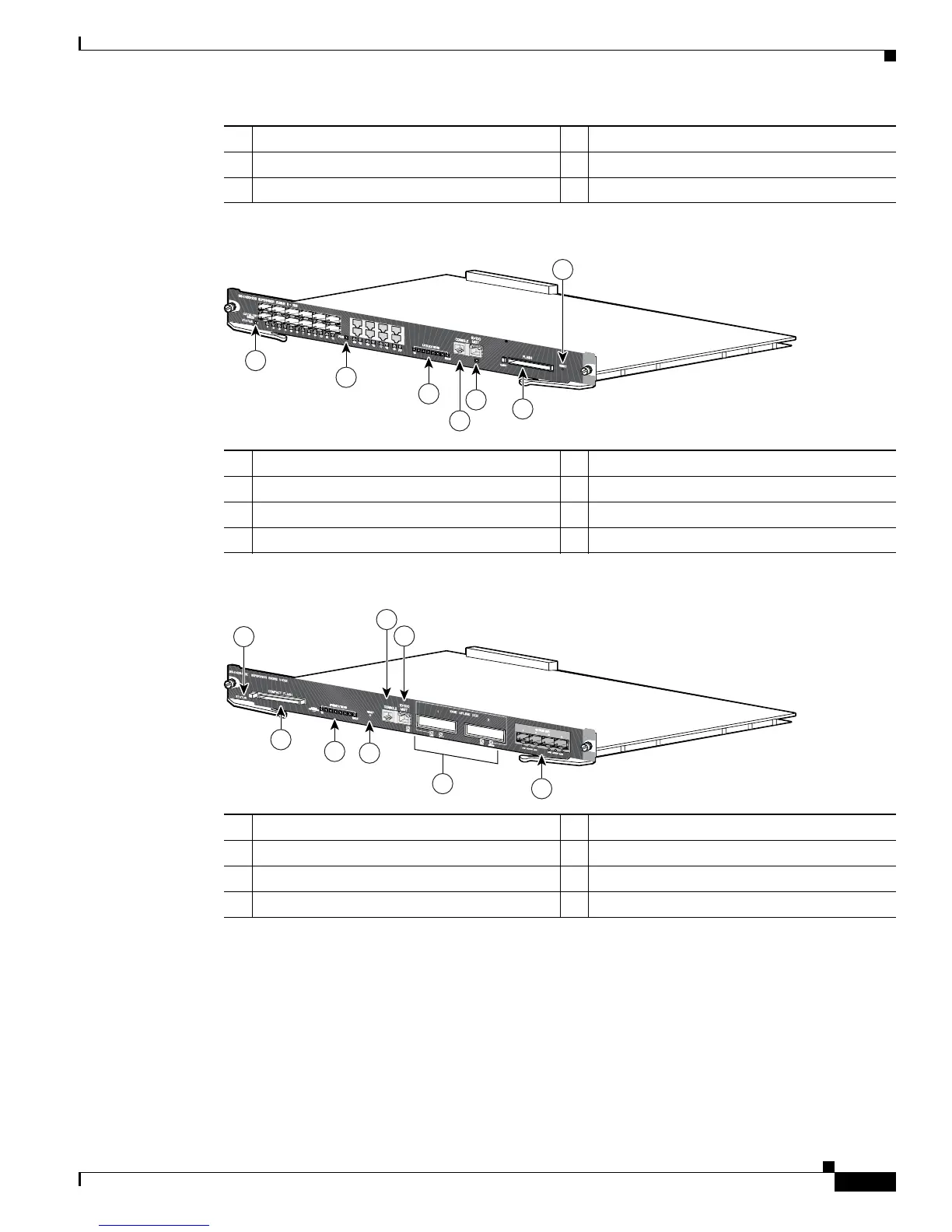

Figure 1-6 Catalyst 4500 Series Supervisor Engine II-Plus TS (WS-X4013+TS)
Figure 1-7 Supervisor Engine II-Plus 10GE (WS-X4013+10GE)
2 GBIC uplink ports 6 Compact flash port
3 Switch load indicators 7 Reset button
4 Console port
1 Status LED 5 Management port
2 PoE status LED 6 Compact Flash port
3 Switch load indicators 7 Reset button
4 Console port
231961
1
2
3
4
5
6
7
1 Compact flash port 5 Gigabit SFP ports
2 Switch load indicator 6 Management port
3 RESET button 7 CONSOLE port
4 10GE uplink ports 8 STATUS LED
231961
E
J
E
C
T
8
1
2
3
4
5
7
6

Cisco Catalyst 4500e Series Specifications

General

Series	Catalyst 4500E Series
Stackable	No
Chassis Options	3-slot, 6-slot, 7-slot, 10-slot
Power Supply Options	AC, DC
Redundancy	Power supply redundancy, supervisor engine redundancy (1+1)
Layer Support	Layer 2
Virtualization	Yes (Virtual Switching System - VSS)
Form Factor	Modular
Ports	Gigabit Ethernet, 10 Gigabit Ethernet, 40 Gigabit Ethernet, and 100 Gigabit Ethernet options depending on the line cards
Jumbo Frame Support	Yes
Features	Flexible NetFlow, TrustSec
Maximum Port Density	Up to 384 ports per chassis
Operating System	Cisco IOS XE
Management	CLI, SNMP, Cisco Prime Infrastructure, Cisco DNA Center
Security Features	802.1X
VLAN Support	Up to 4096 VLANs
QoS Support	Yes
Supervisor Engine Options	Sup8-E
