Catalyst 4500 E-Series Switches Installation Guide
OL-13972-01
Chapter 1 Product Overview
Supervisor Engines

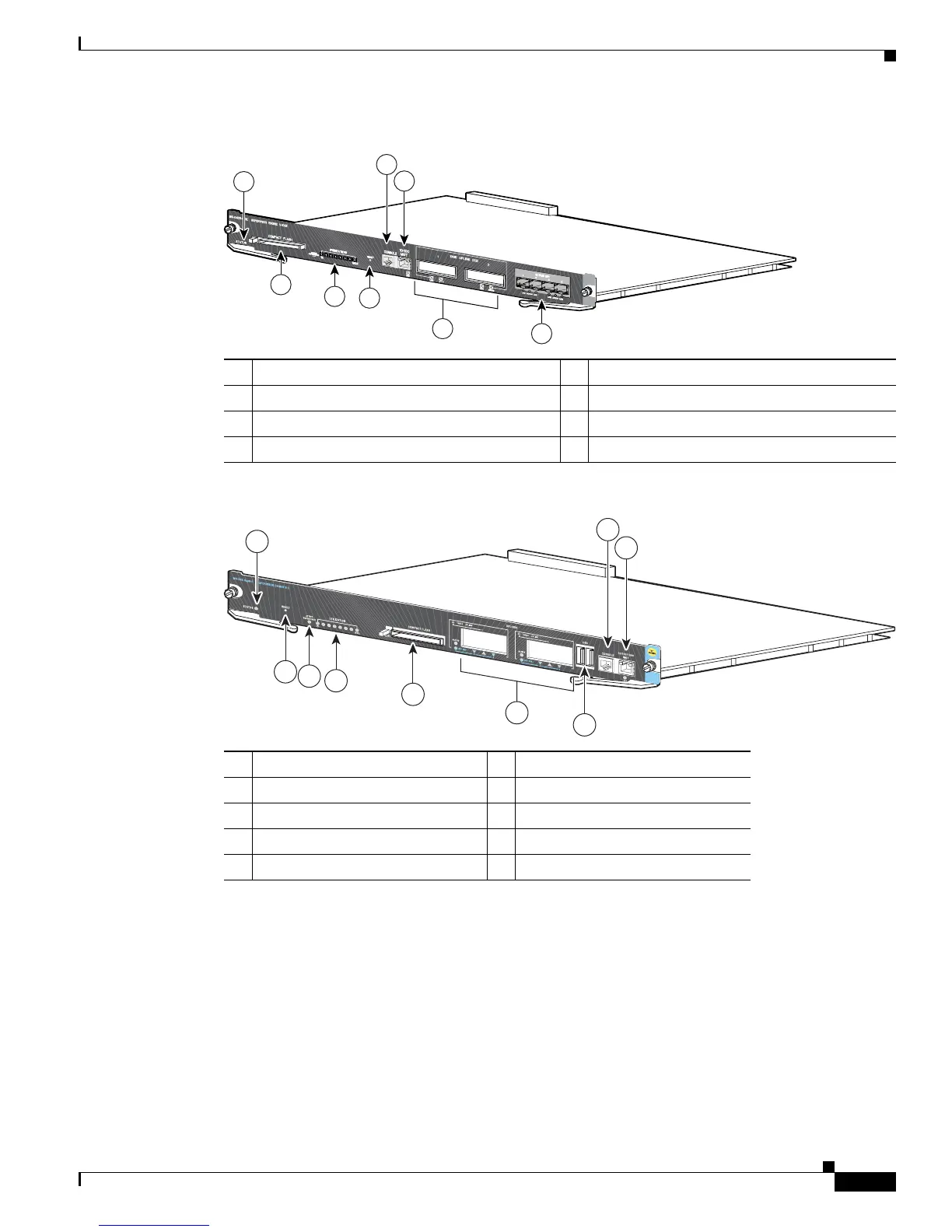

Figure 1-10 Supervisor Engine V-10GE (WS-X4516-10GE)
Figure 1-11 Supervisor Engine 6-E (WS-X45-Sup6-E)
For information about the connectors, LEDs, and switches located on the front panel of the supervisor
engine, see these sections:
• LEDs, page 1-22
• Gigabit Ethernet Uplink Ports, page 1-22
• 10-Gigabit Ethernet Uplink Ports, page 1-23
• 10/100BASE-T Management Port, page 1-23
• CONSOLE Port, page 1-23
1 Compact flash port 5 Gigabit SFP ports
2 Switch load indicator 6 Management port
3 RESET button 7 CONSOLE port
4 10GE uplink ports 8 STATUS LED
231961
E
J
E
C
T
8
1
2
3
4
5
7
6
1 Status LED 6 Uplink ports
2 Reset button 7 USB port
3 Active supervisor LED 8 Console port
4 Utilization LEDs 9 Management port
5 Compact flash port
211396
1
2
4
3
5
7
6
8
9

Cisco Catalyst 4500e Series Specifications

General

Series	Catalyst 4500E Series
Stackable	No
Chassis Options	3-slot, 6-slot, 7-slot, 10-slot
Power Supply Options	AC, DC
Redundancy	Power supply redundancy, supervisor engine redundancy (1+1)
Layer Support	Layer 2
Virtualization	Yes (Virtual Switching System - VSS)
Form Factor	Modular
Ports	Gigabit Ethernet, 10 Gigabit Ethernet, 40 Gigabit Ethernet, and 100 Gigabit Ethernet options depending on the line cards
Jumbo Frame Support	Yes
Features	Flexible NetFlow, TrustSec
Maximum Port Density	Up to 384 ports per chassis
Operating System	Cisco IOS XE
Management	CLI, SNMP, Cisco Prime Infrastructure, Cisco DNA Center
Security Features	802.1X
VLAN Support	Up to 4096 VLANs
QoS Support	Yes
Supervisor Engine Options	Sup8-E
