Chapter 1 Product Overview
Power Supplies

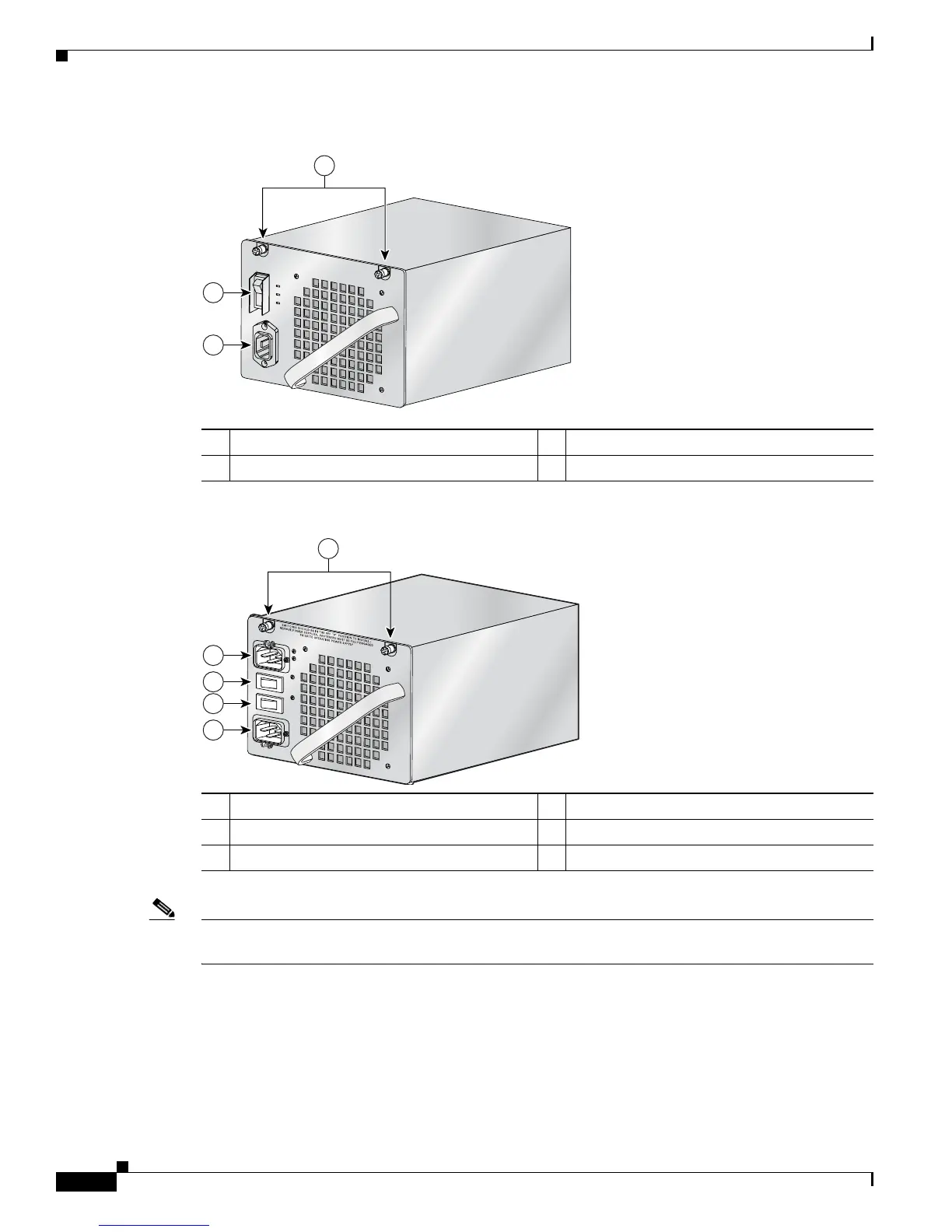

Figure 1-13 AC-Input Power Supply (All Except 4200 W)
Figure 1-14 4200 W Dual Input AC Power Supply
Note The 4200 W AC power supply should not be used in mixed-voltage configurations. All the inputs in a
chassis must be the same voltage (110 or 220 V).
1 AC receptacle 3 Captive screws
2 Power switch
231375
1
2
3
1 AC input 2 receptacle 4 AC input 1 receptacle
2 AC input 2 on switch 5 Captive screws
3 AC input 1 on switch
231376
100-120V-
12A
50/60Hz
100-120V-
12A
50/60Hz
IN
PU
T 1
O
K
INPU
T 2
OK
PO
E
ENABLED
4
6
0
0
A
C
V
O
U
T
P
{
U
T
F
A
I:
F
A
N
O
K
4
5
3
2
1

Cisco Catalyst 4500e Series Specifications

General

Series	Catalyst 4500E Series
Stackable	No
Chassis Options	3-slot, 6-slot, 7-slot, 10-slot
Power Supply Options	AC, DC
Redundancy	Power supply redundancy, supervisor engine redundancy (1+1)
Layer Support	Layer 2
Virtualization	Yes (Virtual Switching System - VSS)
Form Factor	Modular
Ports	Gigabit Ethernet, 10 Gigabit Ethernet, 40 Gigabit Ethernet, and 100 Gigabit Ethernet options depending on the line cards
Jumbo Frame Support	Yes
Features	Flexible NetFlow, TrustSec
Maximum Port Density	Up to 384 ports per chassis
Operating System	Cisco IOS XE
Management	CLI, SNMP, Cisco Prime Infrastructure, Cisco DNA Center
Security Features	802.1X
VLAN Support	Up to 4096 VLANs
QoS Support	Yes
Supervisor Engine Options	Sup8-E
