Cisco Catalyst 4500e Series User Manual

4-22
Catalyst 4500 E-Series Switches Installation Guide
OL-13972-01
Chapter 4 Removing and Replacing FRUs
Supervisor Memory Upgrade
Step 3 Hold the miniDIMM component-side up, with connector edge (the metal fingers) away from you. Keep
the sides of the miniDIMM between your thumb and middle finger, with your forefinger against the far
edge and opposite the connector edge. (See
Figure 4-27.)

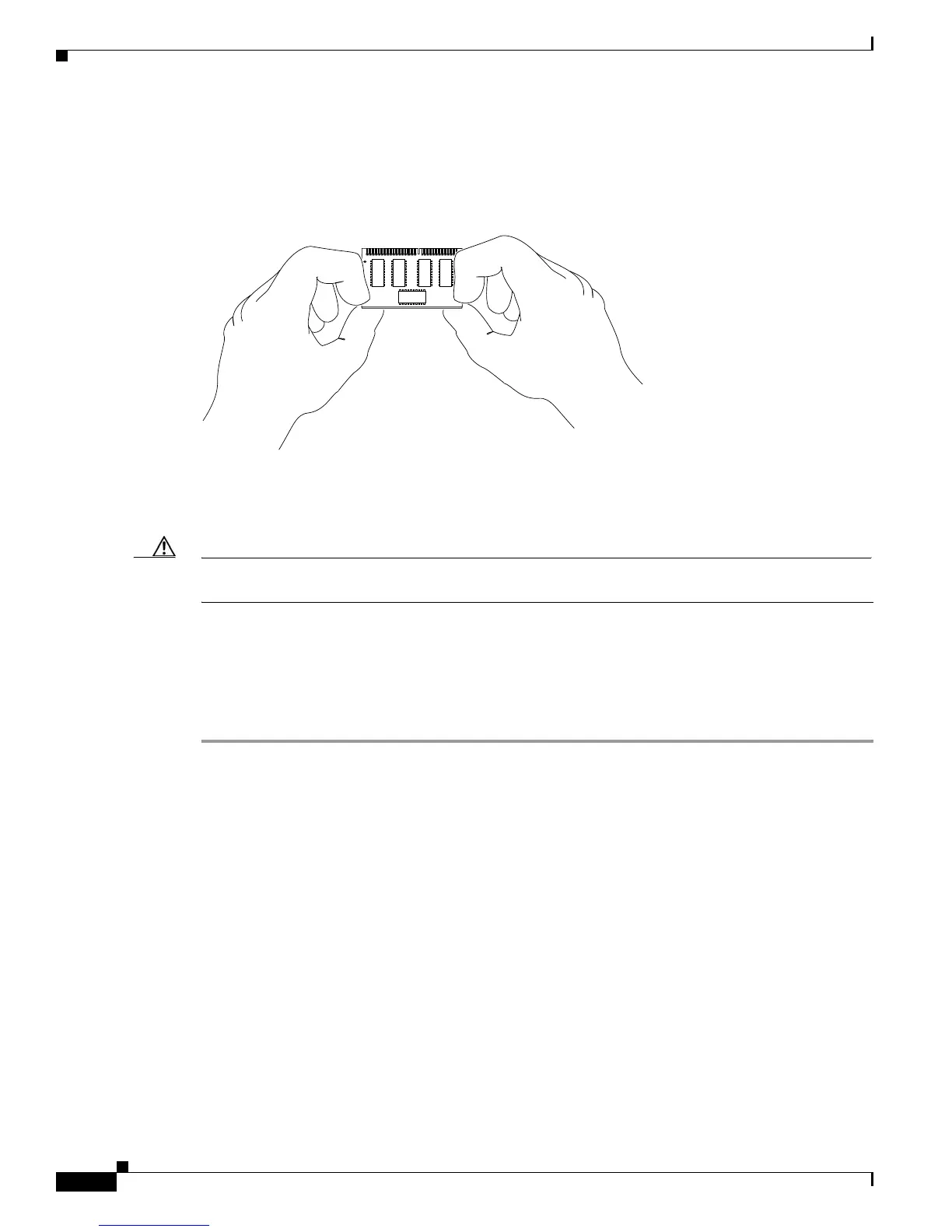

Figure 4-27 Handling a miniDIMM
Step 4 Tilt the miniDIMM to the same angle as the socket, then insert the connector edge into the socket. Gently
push into place until the metal clips snap into place.
Caution It is normal to feel some resistance when installing a miniDIMM, but do not use excessive force and do
not touch the surface components.
Step 5 Check the two alignment holds and ensure that the metal clips are visible. If necessary, carefully remove
and reseat the miniDIMM.
Step 6 If you are upgrading memory from 512 Mb to 1 Gb and you have removed the miniDIMM in u39, replace
it as in steps 3-5.
Step 7 Replace the supervisor engine in the switch.
33115

Cisco Catalyst 4500e Series Specifications

General

Series	Catalyst 4500E Series
Stackable	No
Chassis Options	3-slot, 6-slot, 7-slot, 10-slot
Power Supply Options	AC, DC
Redundancy	Power supply redundancy, supervisor engine redundancy (1+1)
Layer Support	Layer 2
Virtualization	Yes (Virtual Switching System - VSS)
Form Factor	Modular
Ports	Gigabit Ethernet, 10 Gigabit Ethernet, 40 Gigabit Ethernet, and 100 Gigabit Ethernet options depending on the line cards
Jumbo Frame Support	Yes
Features	Flexible NetFlow, TrustSec
Maximum Port Density	Up to 384 ports per chassis
Operating System	Cisco IOS XE
Management	CLI, SNMP, Cisco Prime Infrastructure, Cisco DNA Center
Security Features	802.1X
VLAN Support	Up to 4096 VLANs
QoS Support	Yes
Supervisor Engine Options	Sup8-E
