b) If you are using an ESD wrist strap that is equipped with an alligator clip, attach the alligator clip directly over the
head of the system ground lug screw or to the system ground lug barrel.

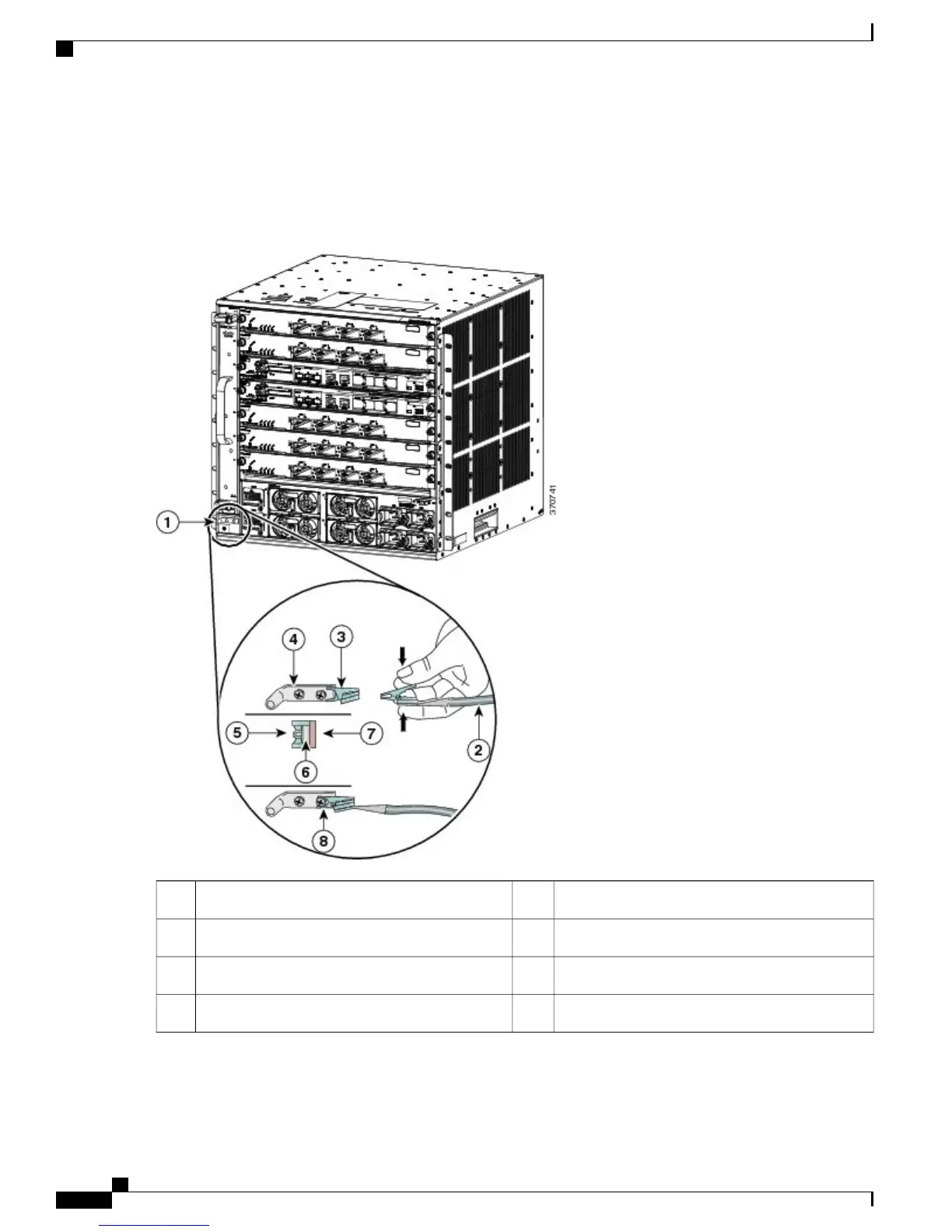

Figure 7: Attaching the ESD Wrist Strap Clip to the System Ground Lug Screw
Side clip behind the screw5System ground connector1
Screw6ESD ground strap2
Side view of grounding lug7Clip3
Clip installed behind the screw8Right-angled grounding lug4
When handling modules, follow these guidelines:
Catalyst 6800 Ethernet Module Installation Guide
22
Preparing for Installation
Attaching an ESD Strap
