DescriptionFeature
These Ethernet modules support 10G SFP+ modules and 1G SFP
modules. For SFP transceivers currently supported, refer to the
Cisco Transceiver Modules compatibility matrices at:
Compatibility Information
Pluggable transceivers support
Supported with GLC-T (1G Copper SFP) transceiversTDR support
• The DOM-supported 1G transceivers are—GLC-BX-U,
GLC-BX-D, GLC-SX-MMD, GLC-EX-SMD,
GLC-LH-SMD, GLC-ZX-SMD, SFP-DWDM.
•
The DOM-supported 10G Fiber SFP/SFP+ transceivers are
listed at Cisco Digital Optical Monitoring Compatibility
Matrix.
Digital Optical Monitoring (DOM)
support
Related Topics
Installing an Ethernet Switching Module, on page 25
C6800-16P10G and C6800-16P10G-XL Module Specifications, on page 41
Ethernet Module LEDs, on page 45
C6800-32P10G and C6800-32P10G-XL Ethernet Modules
The C6800-32P10G and C6800-32P10G-XL Ethernet modules provide thirty two 1G or thirty two 10G
transceiver ports.

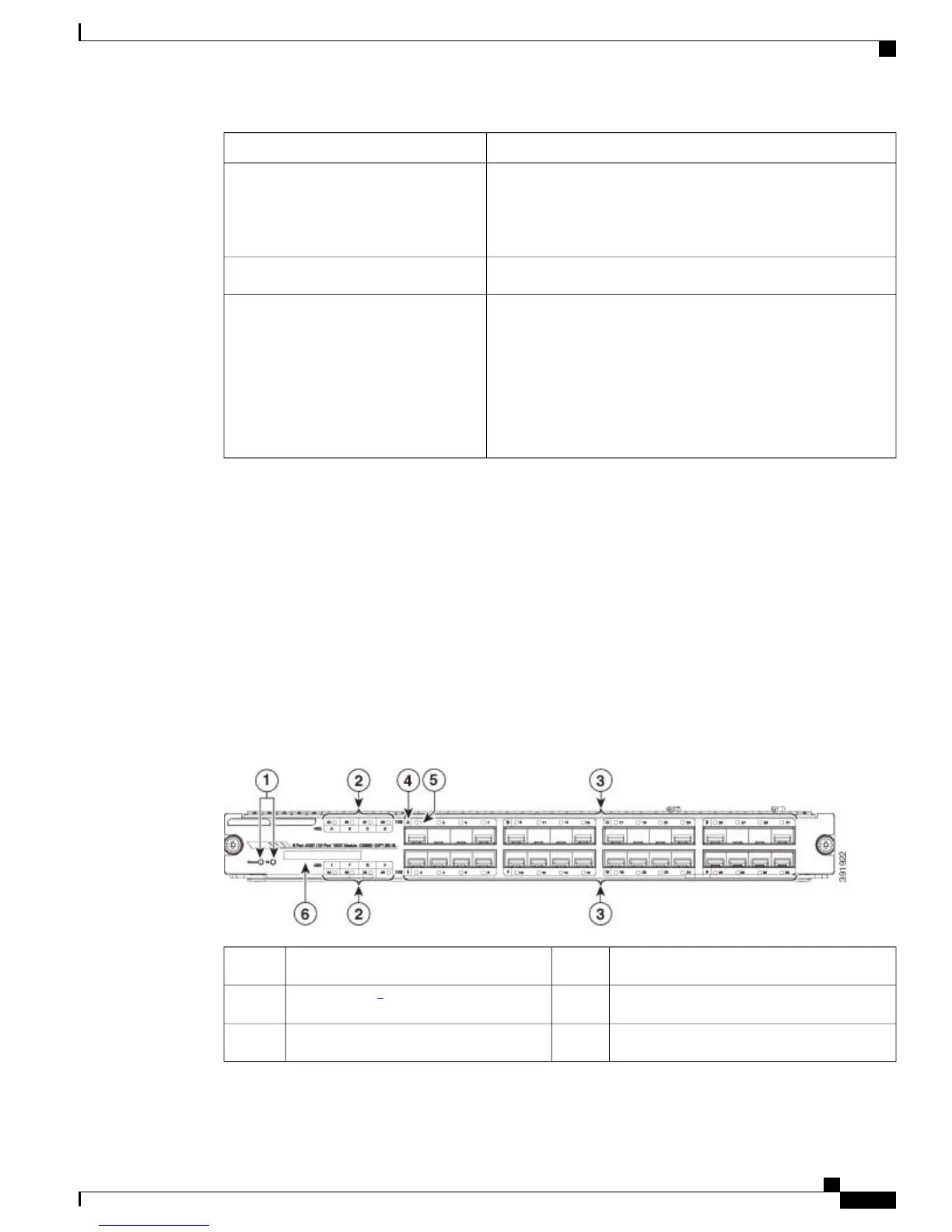

Figure 5: C6800-32P10G-XL Ethernet Module Front Panel
Port group ID4Status and ID LEDs1
Port number540G port IDs
3
2
RFID610G ports (A total of eight port groups)3
Catalyst 6800 Ethernet Module Installation Guide
13
Ethernet Switching Modules Overview
C6800-32P10G and C6800-32P10G-XL Ethernet Modules

Cisco Catalyst 6800 Specifications
