1-Gigabit Pluggable Ethernet Modules
C6800-48P-SFP and C6800-48P-SFP-XL Ethernet Modules
C6800-48P-SFP and C6800-48P-SFP-XL Ethernet modules provide 48 1-Gbps full- or half-duplex ports.

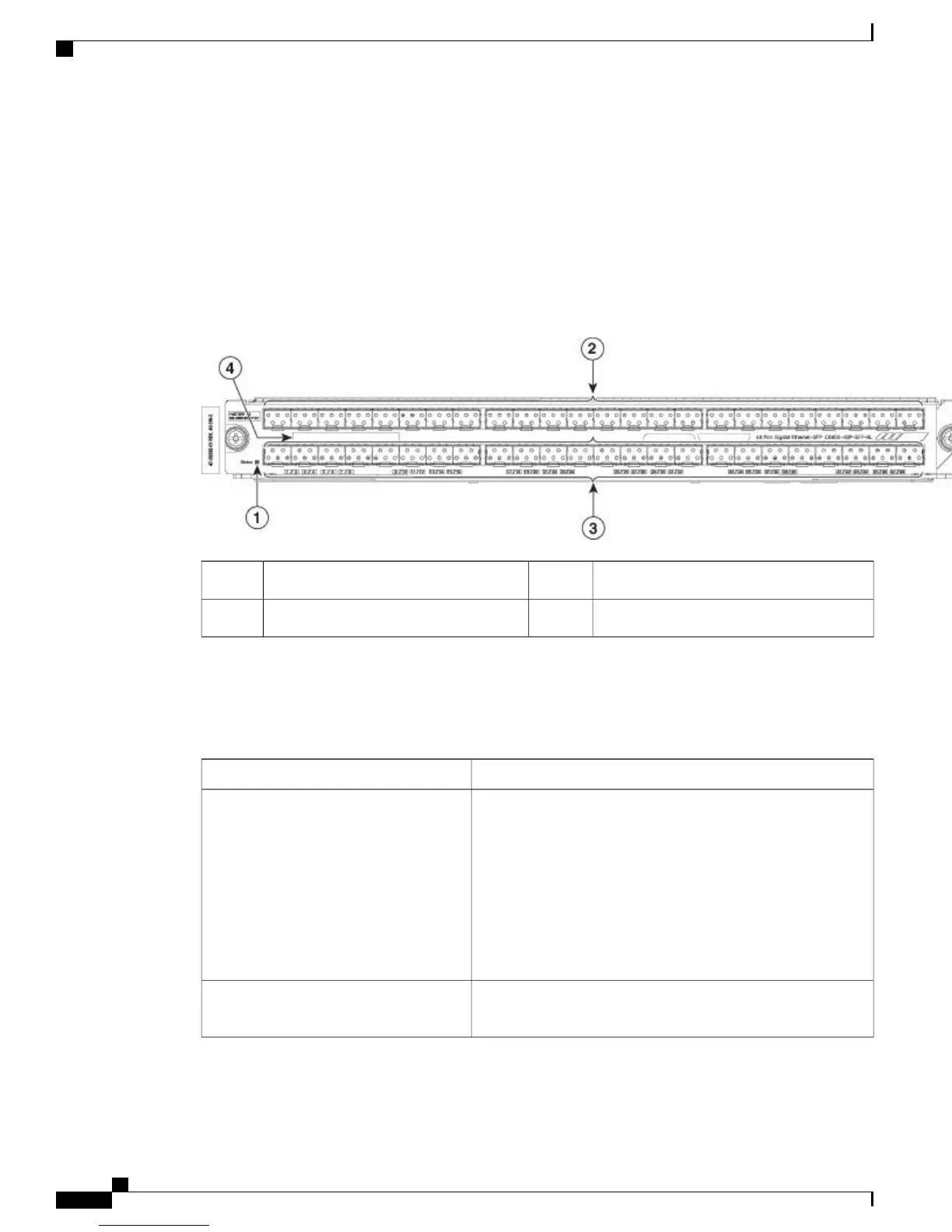

Figure 2: C6800-48P-SFP and C6800-48P-SFP-XL Ethernet Module Front Panel
Even numbered ports3Status LED1
RFID4Odd numbered ports2
The sticker on the module faceplate identifies it as either a C6800-48P-SFP and C6800-48P-SFP-XL depending
on whether a WS-F6K-DFC4-A or WS-F6K-DFC4-AXL daughter card is installed on the module.
Table 2: C6800-48P-SFP and C6800-48P-SFP-XL Ethernet Module Features
DescriptionFeature
48 ports. Ports are numbered left to right and top to bottom.
4 port groups. Port ranges per port group:
•
1 to 12
•
13 to 24
•
25 to 36
•
37 to 48
Ports per module
LC (optical) or RJ-45 (copper) depending on the SFP transceiver
installed.
Port connector type
Catalyst 6800 Ethernet Module Installation Guide
4
Ethernet Switching Modules Overview
1-Gigabit Pluggable Ethernet Modules
