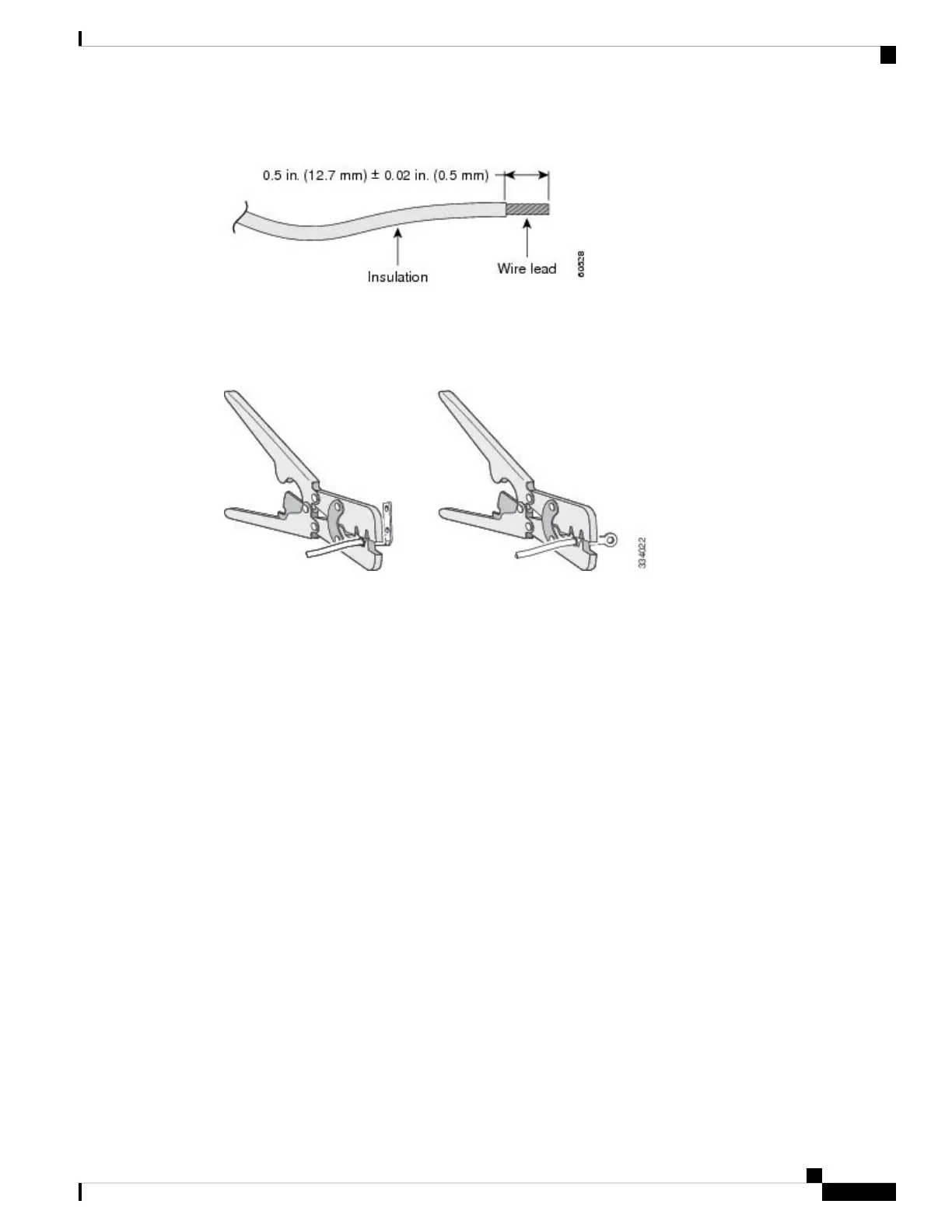

Figure 52: Stripping the Ground Wire
Step 3 Slide the open end of the ground lug over the exposed area of the wire.
Step 4 Using a Panduit crimping tool, crimp the ground lug to the wire.
Figure 53: Crimping the Ground Lug
Step 5 Use the ground screw to attach the single-hole ground lug to the switch rear panel. Use two ground screws to
attach the dual-hole ground lug to the switch rear panel.
Cisco Catalyst 9300 Series Switches Hardware Installation Guide
91
